System Diagram

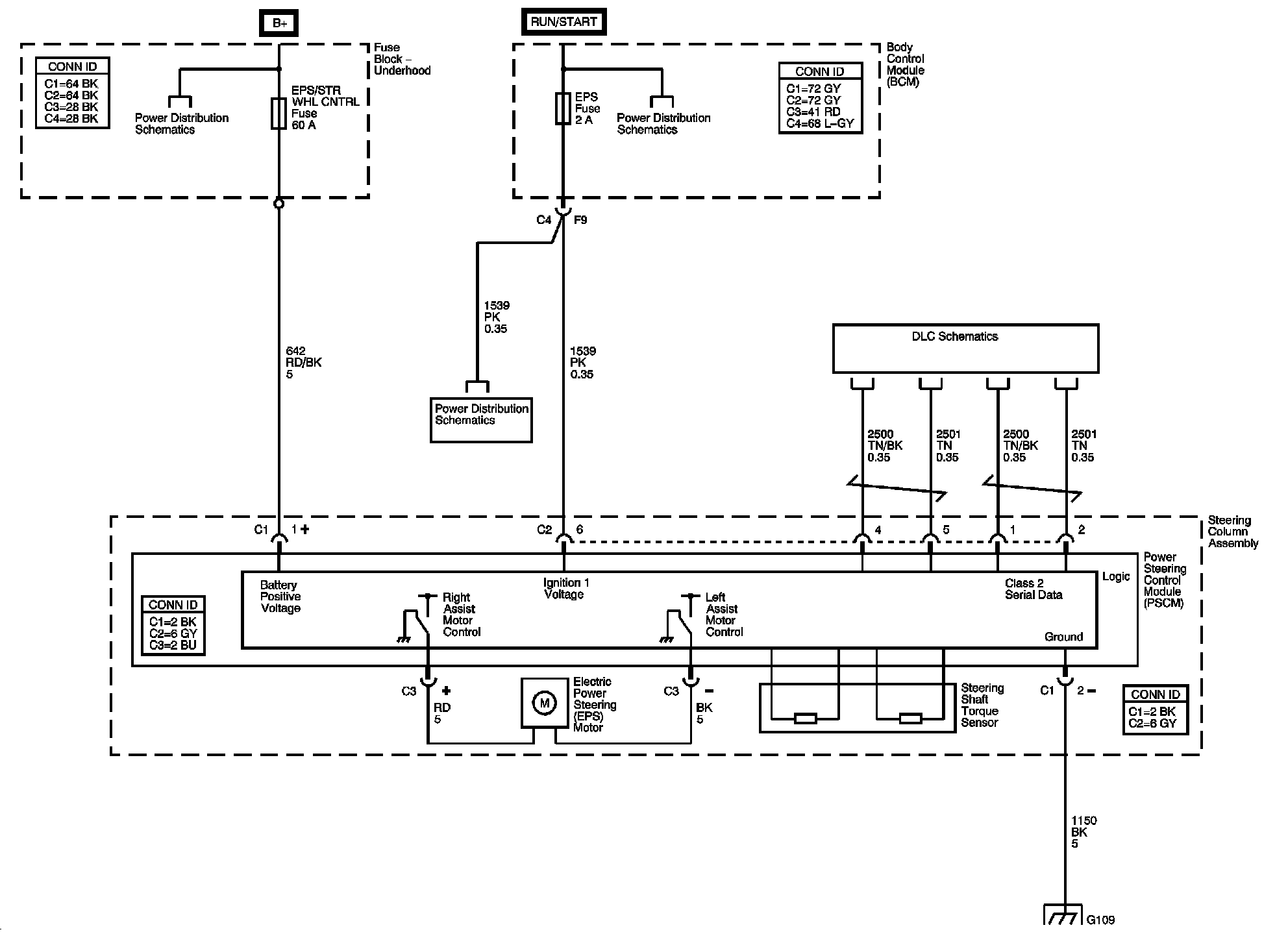

Power Steering System Diagrams

Power Steering System Diagrams:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle/Anchors. Locations
