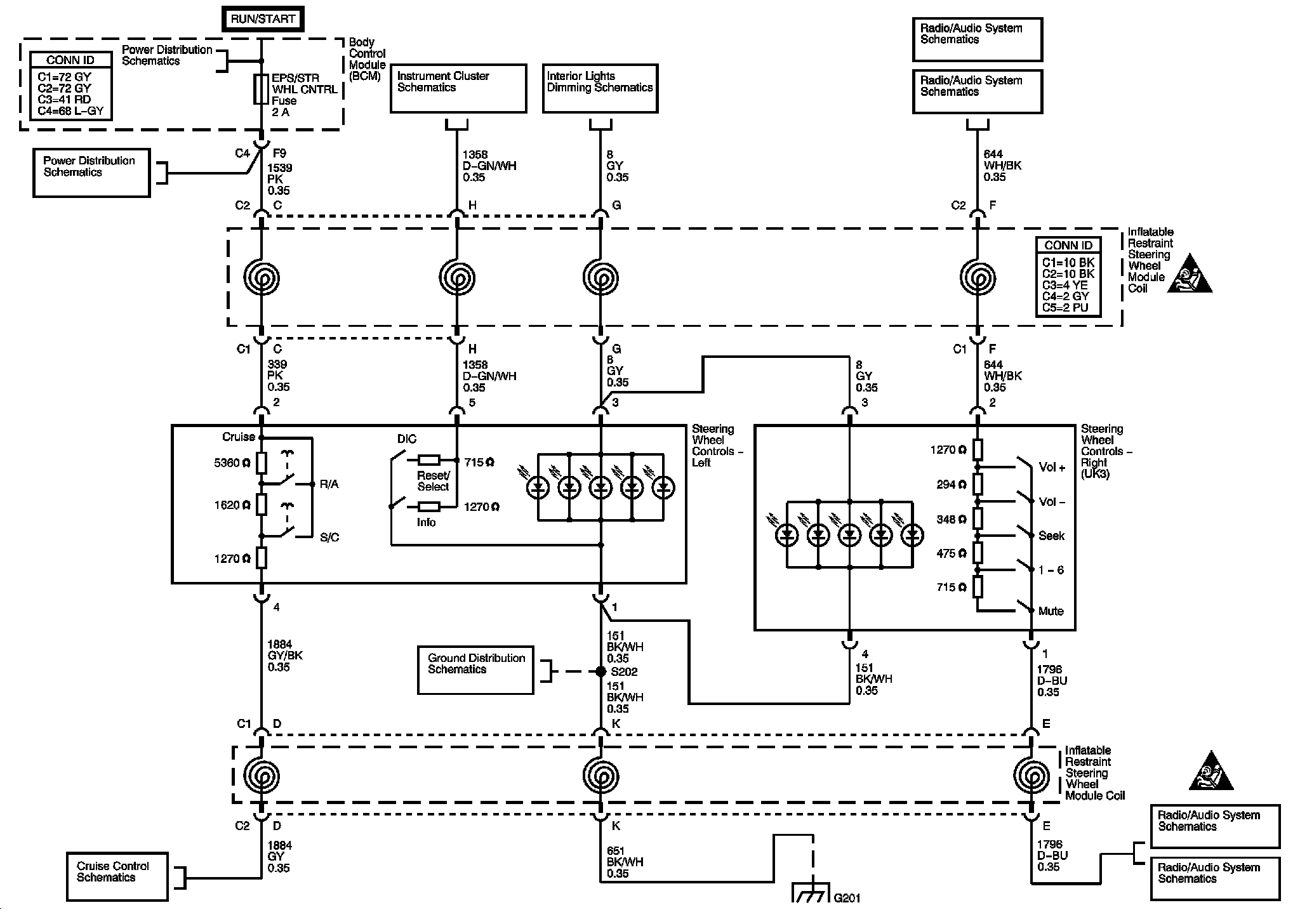

Steering Wheel Diagrams



Steering Wheel Diagrams

Steering Wheel Diagrams:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle/Anchors. Locations
