Power Distribution Diagram 1

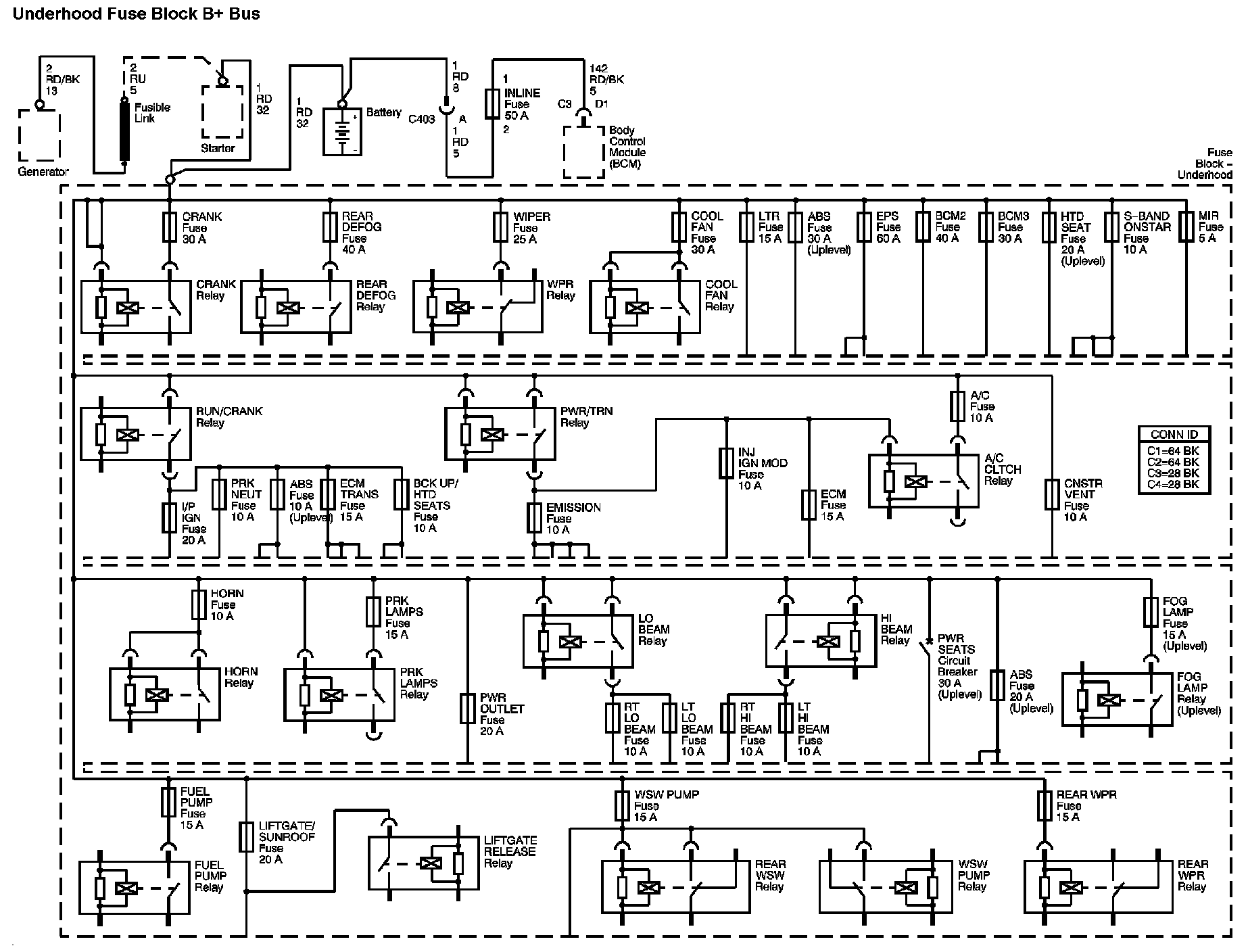

Power Distribution Diagram 1:






Next Diagram Power Distribution Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
