Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio >> With RPO Code UW5

With RPO Code UW5

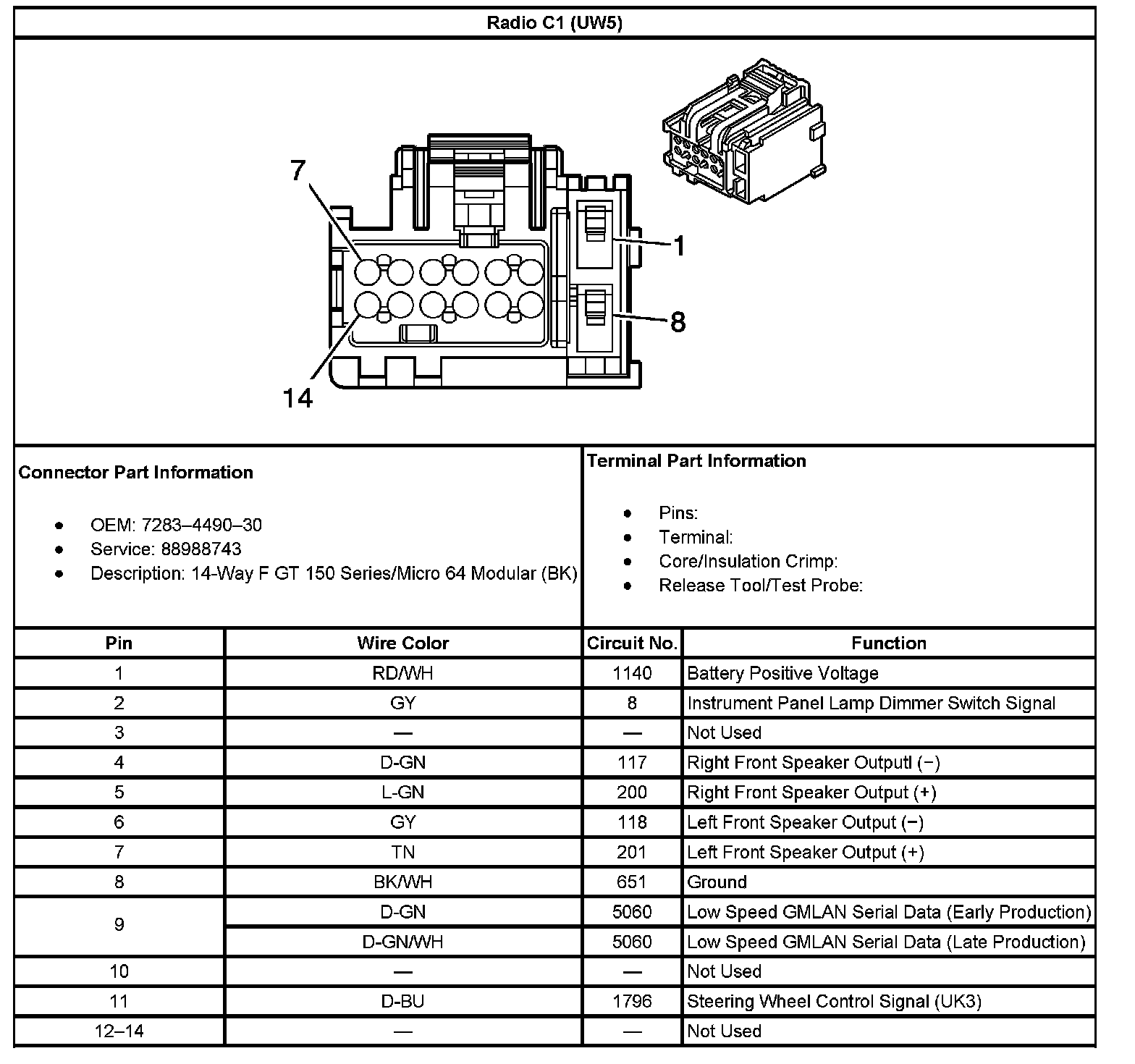

Radio C1 (With RPO Code UW5):

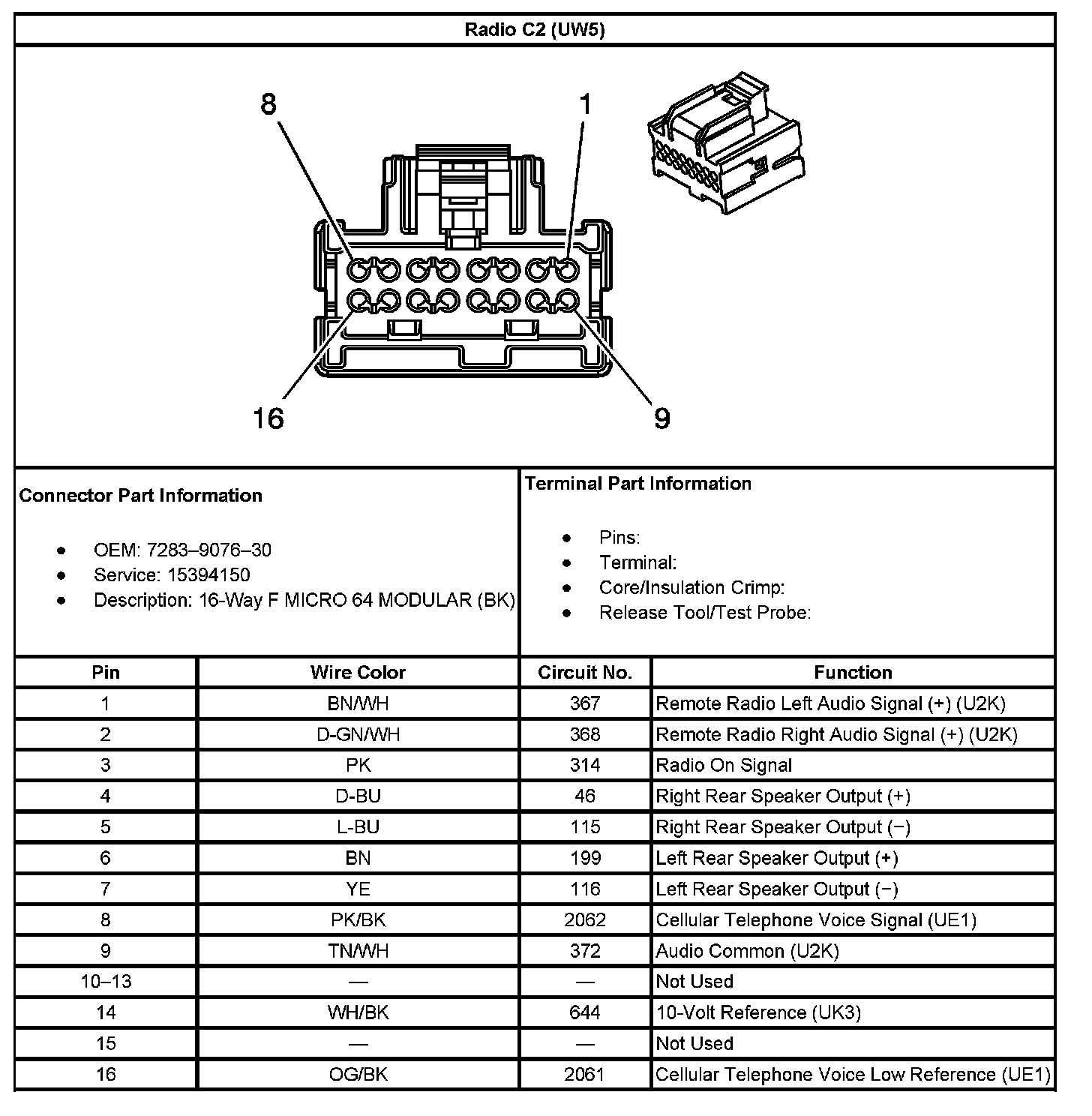

Radio C2 (With RPO Code UW5):
