Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio >> With RPO Code UQ3

With RPO Code UQ3

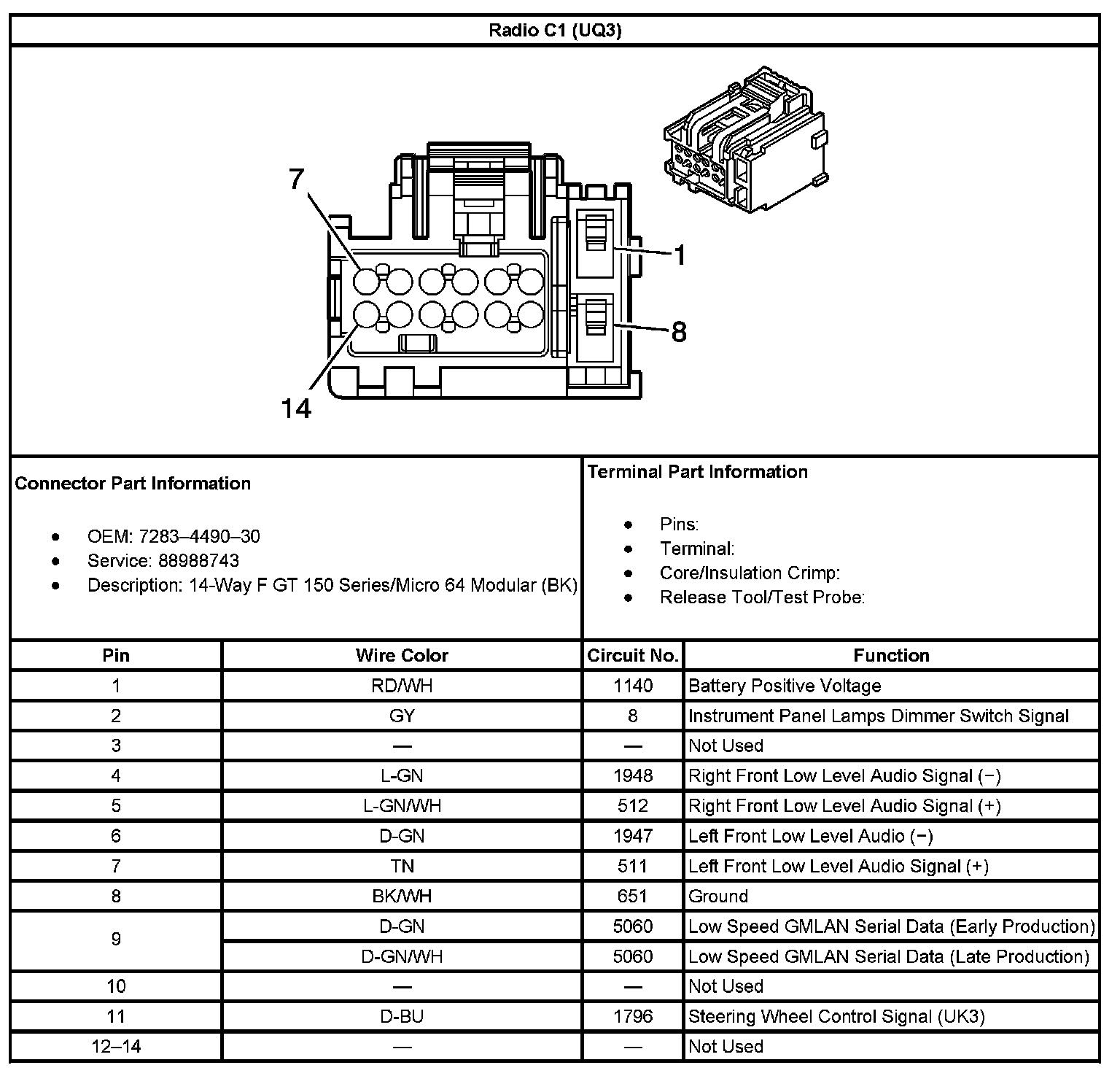

Radio C1 (With RPO Code UQ3):

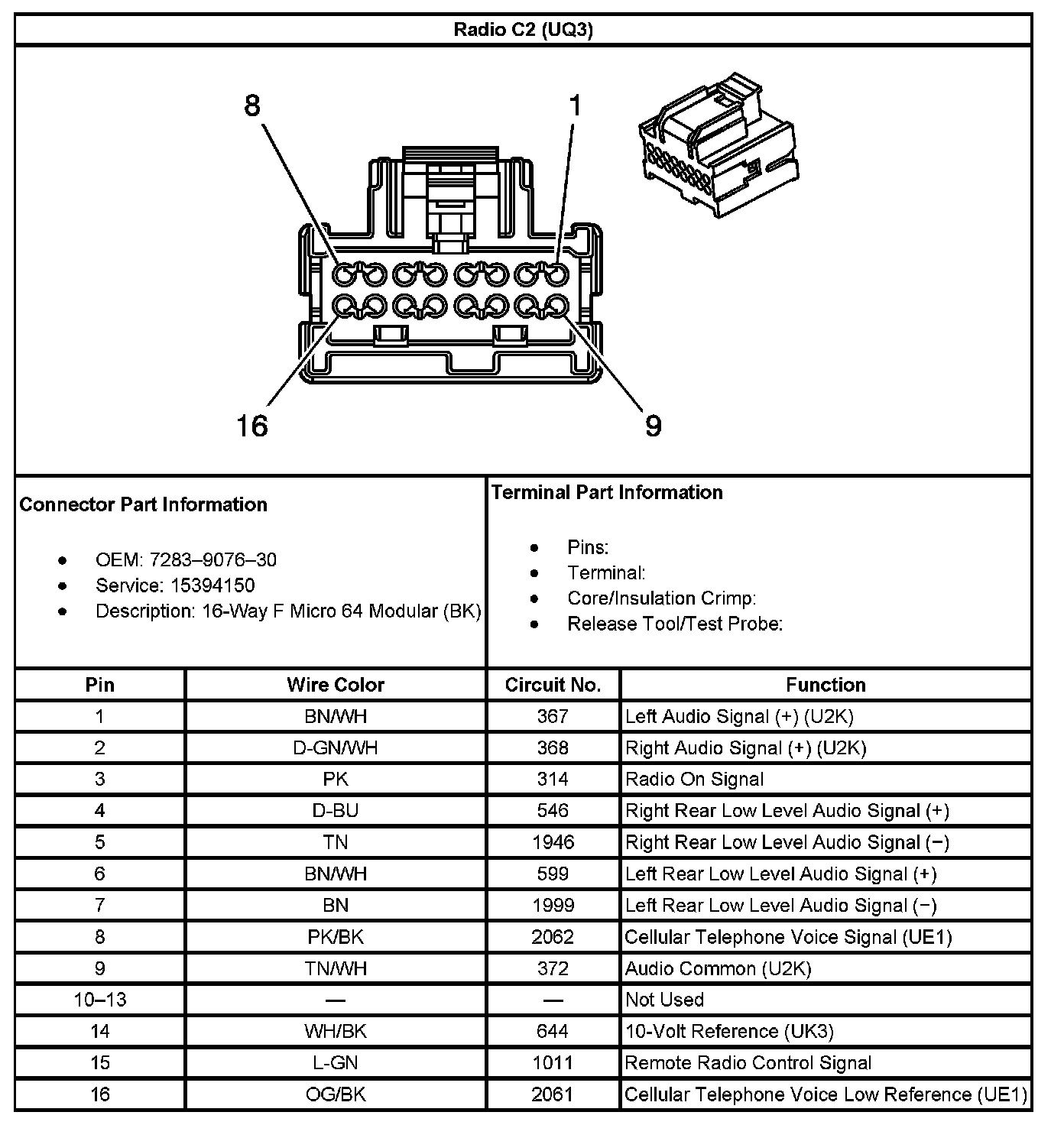

Radio C2 (With RPO Code UQ3):
