Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> SP200 - SP299

SP200 - SP299

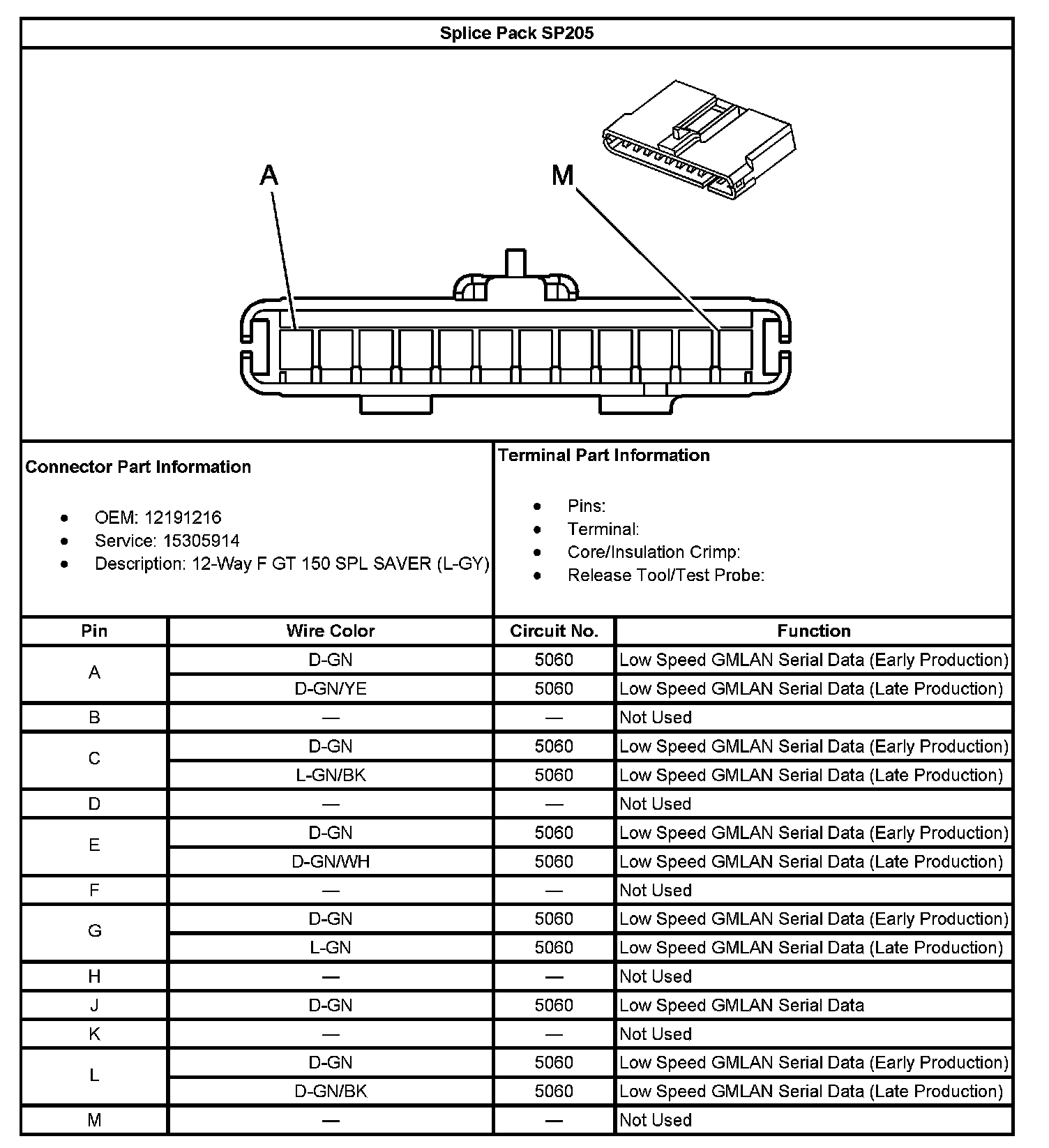

Splice Pack SP205:
