LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2006
>>
HHR L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C500 - C599
C500 - C599

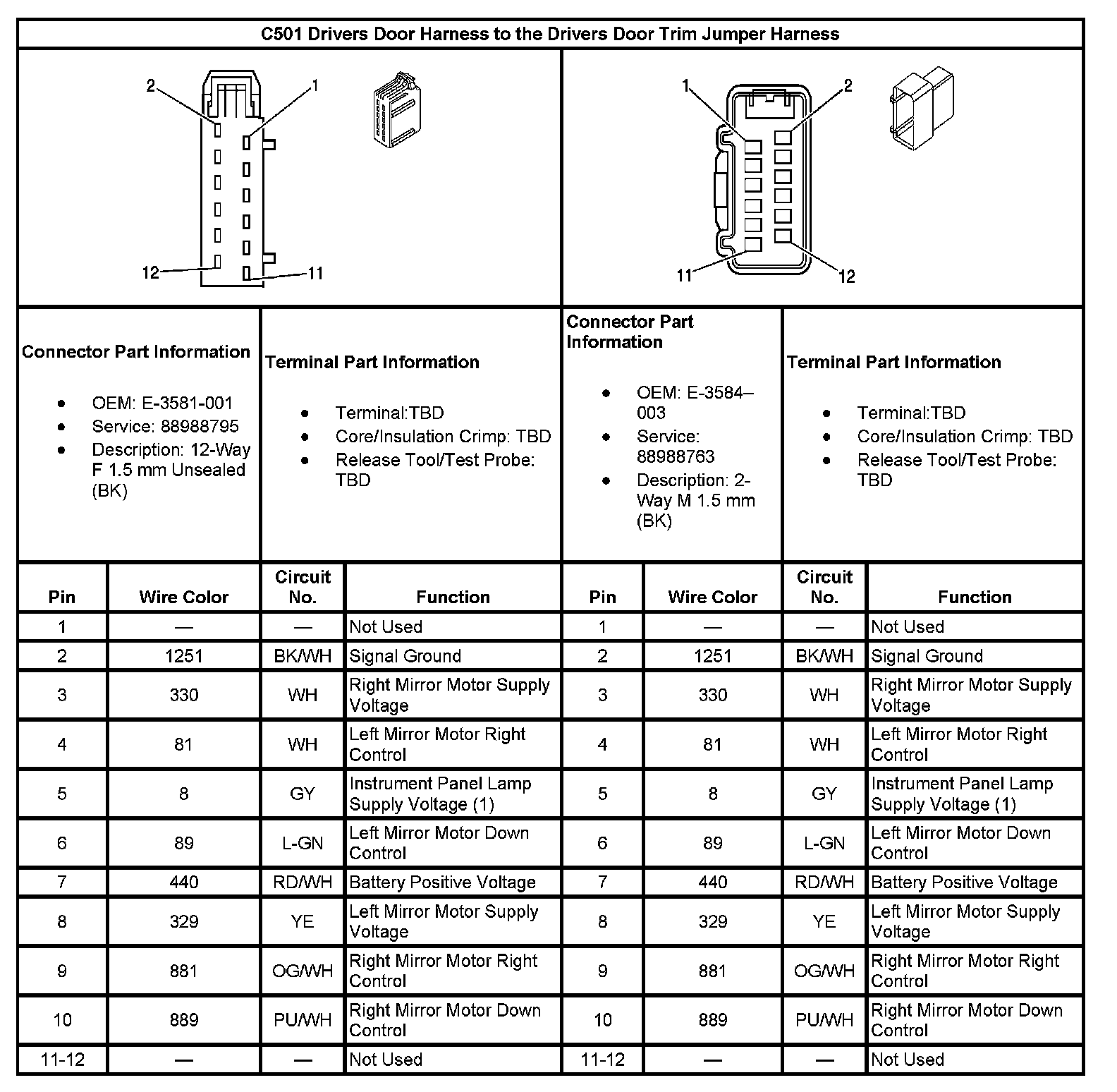

C501 Driver Door Harness To The Driver Door Trim Jumper Harness:
