Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C316

C316

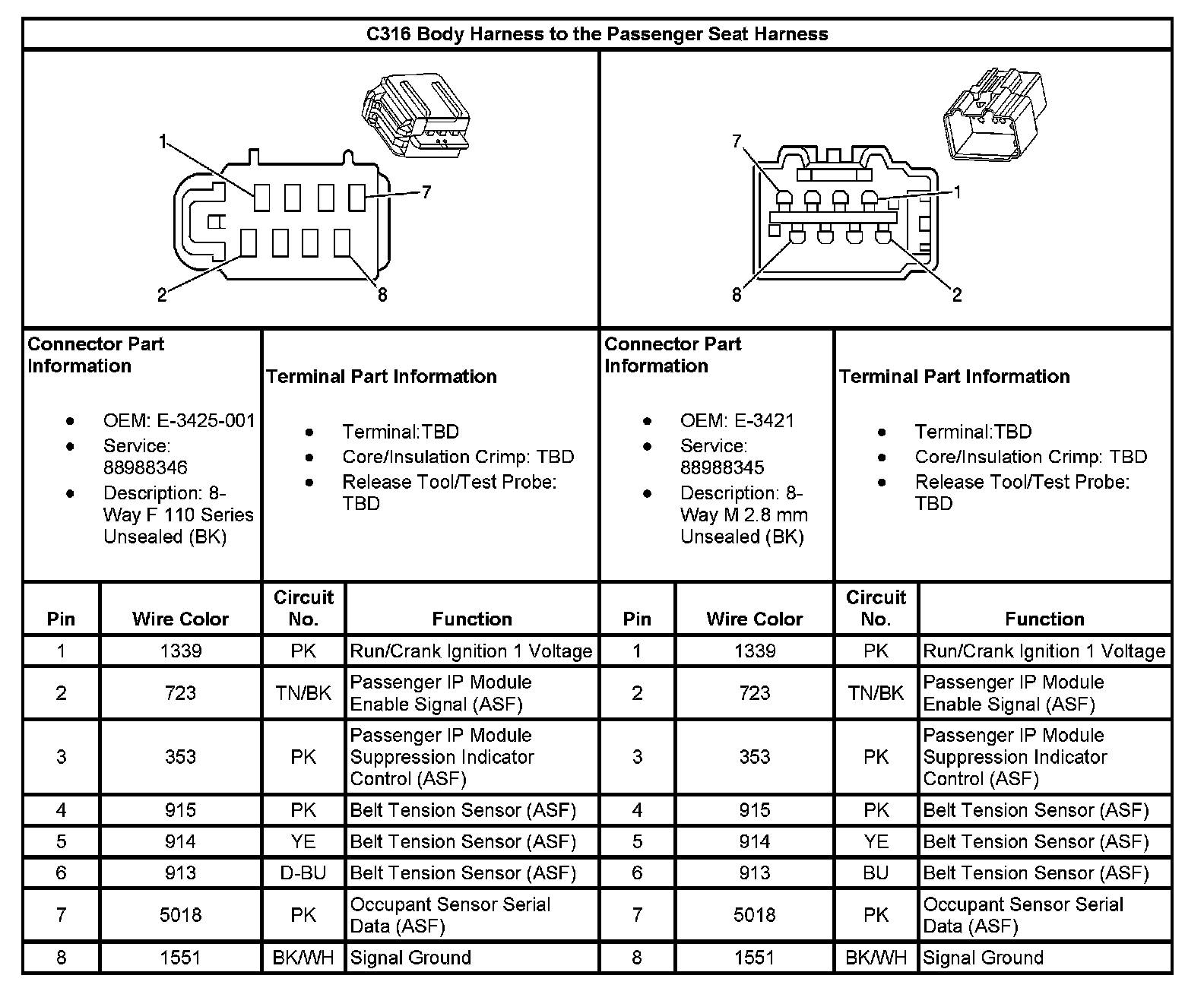

C316 Body Harness To The Passenger Seat Harness:
