Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C310

C310

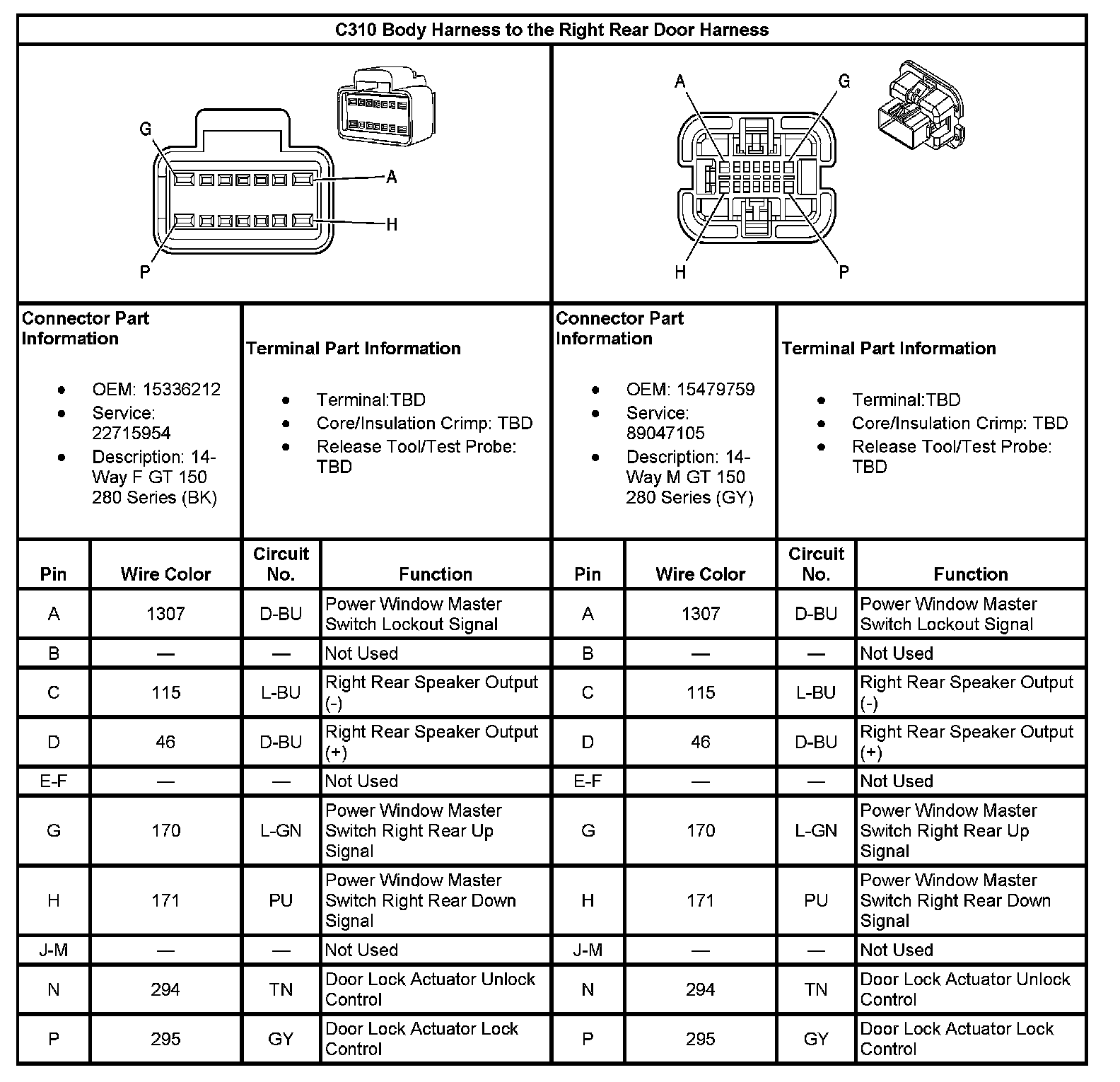

C310 Body Harness To The Right Rear Door Harness:
