C401

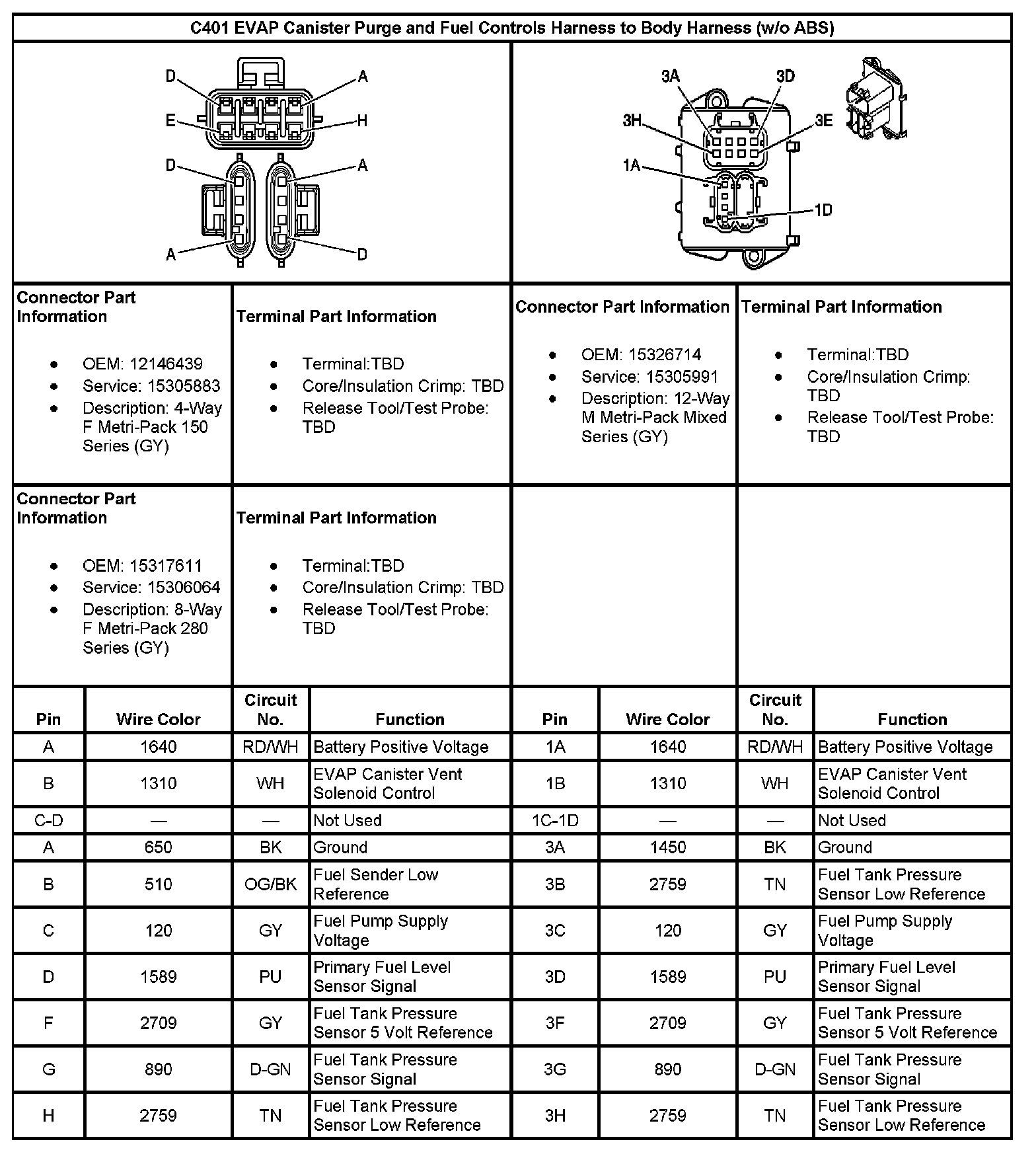

C401 EVAP Canister Purge And Fuel Controls Harness To Body Harness (Without ABS):

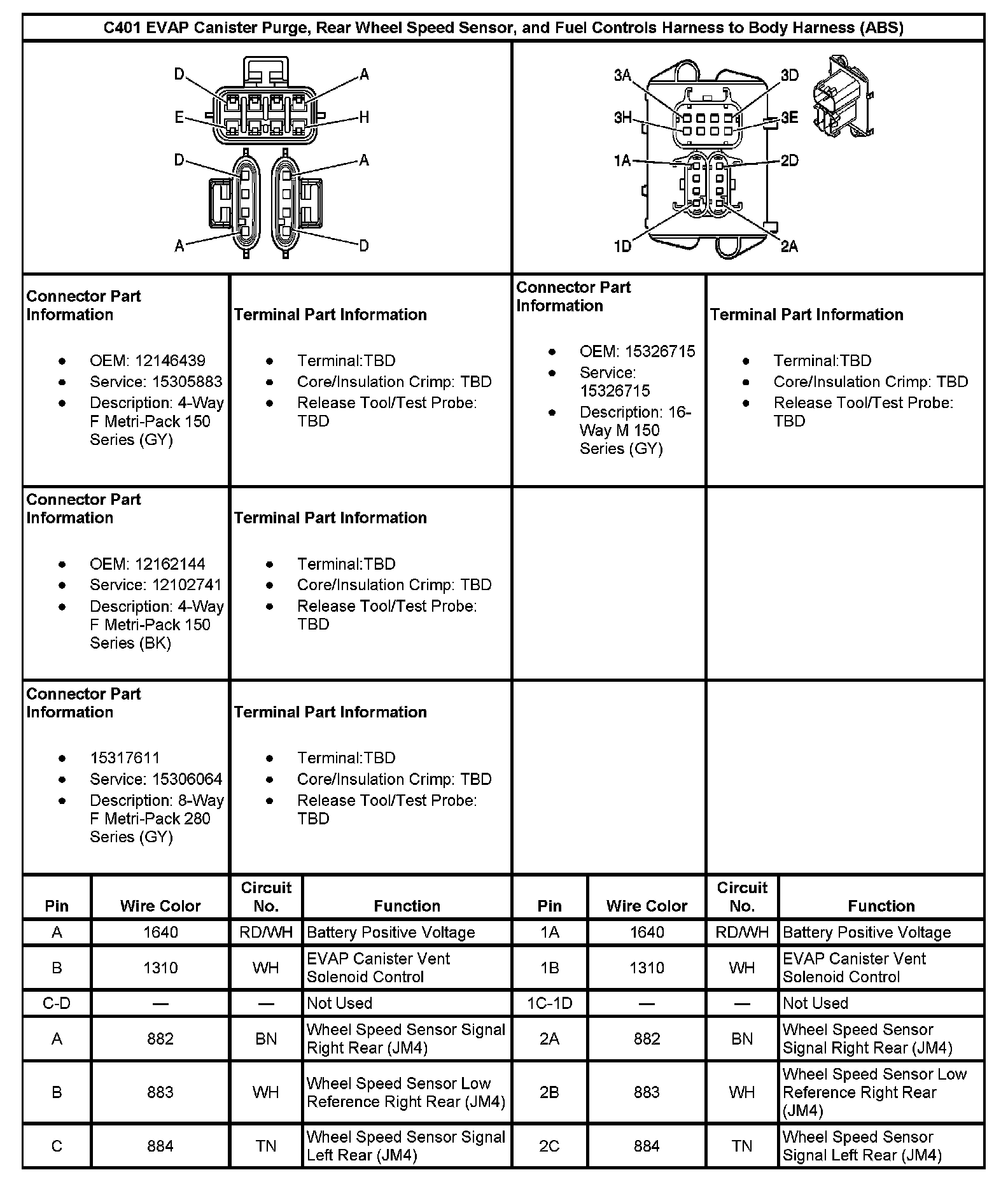

C401 EVAP Canister Purge And Fuel Controls Harness To Body Harness (ABS) (Part 1):

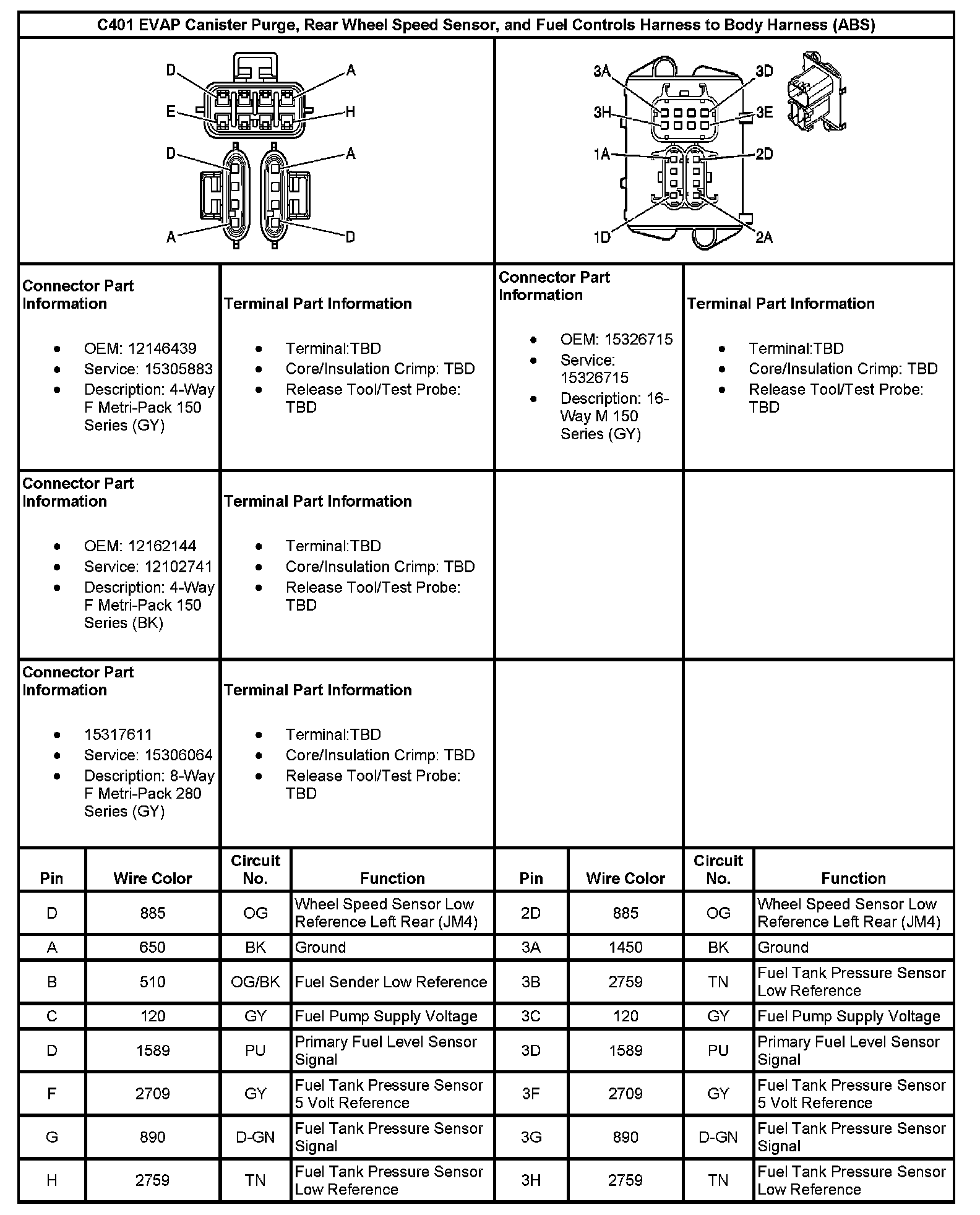

C401 EVAP Canister Purge And Fuel Controls Harness To Body Harness (ABS) (Part 2):
