Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C300 - C399 >> C314

C314

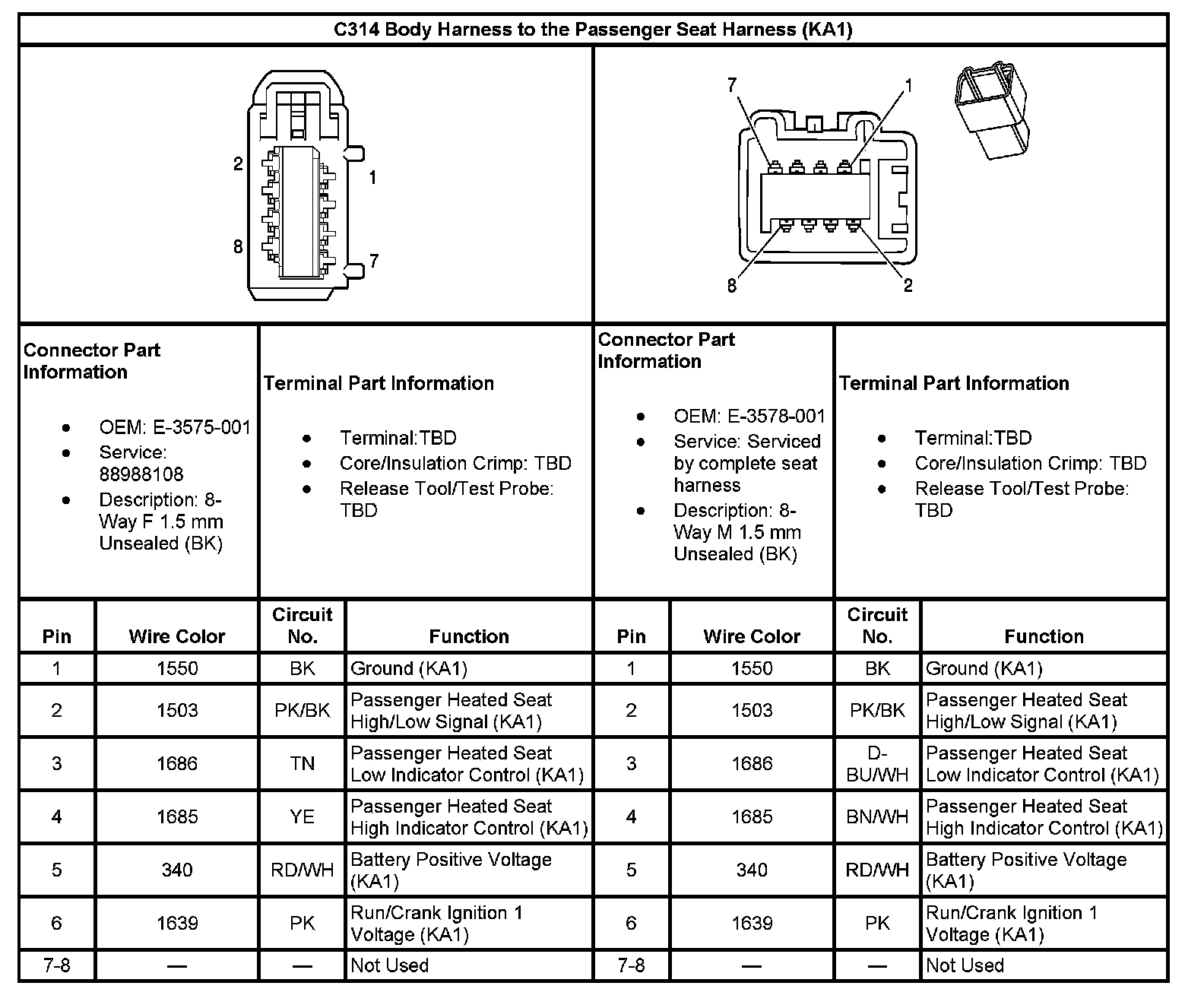

C314 Body Harness To The Passenger Seat Harness (With RPO Code KA1):
