Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Locations

Seat Belt Buckle Switch: Locations

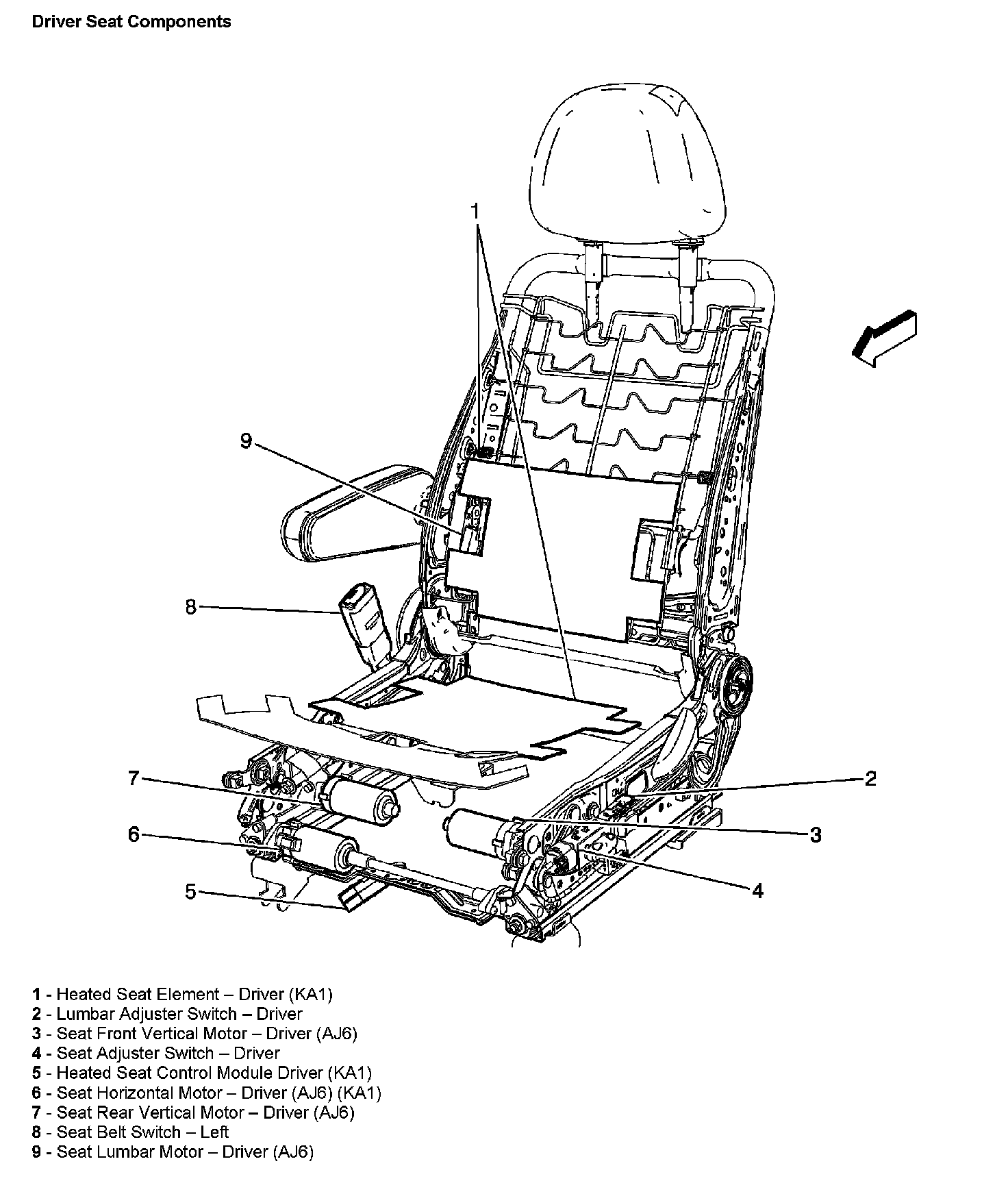

Driver Seat Components:

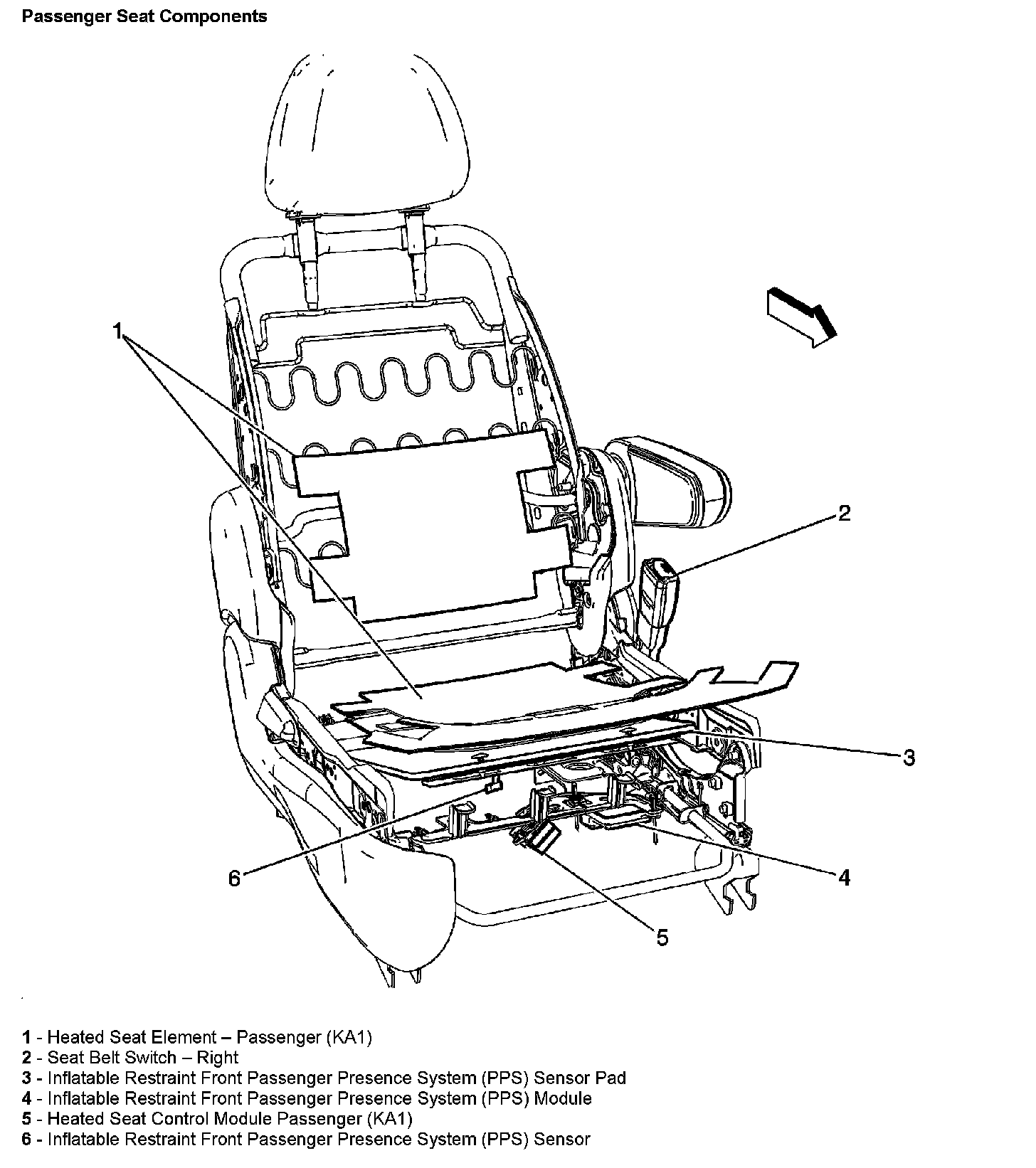

Passenger Seat Components:
