Automatic Transmission Controls Schematics

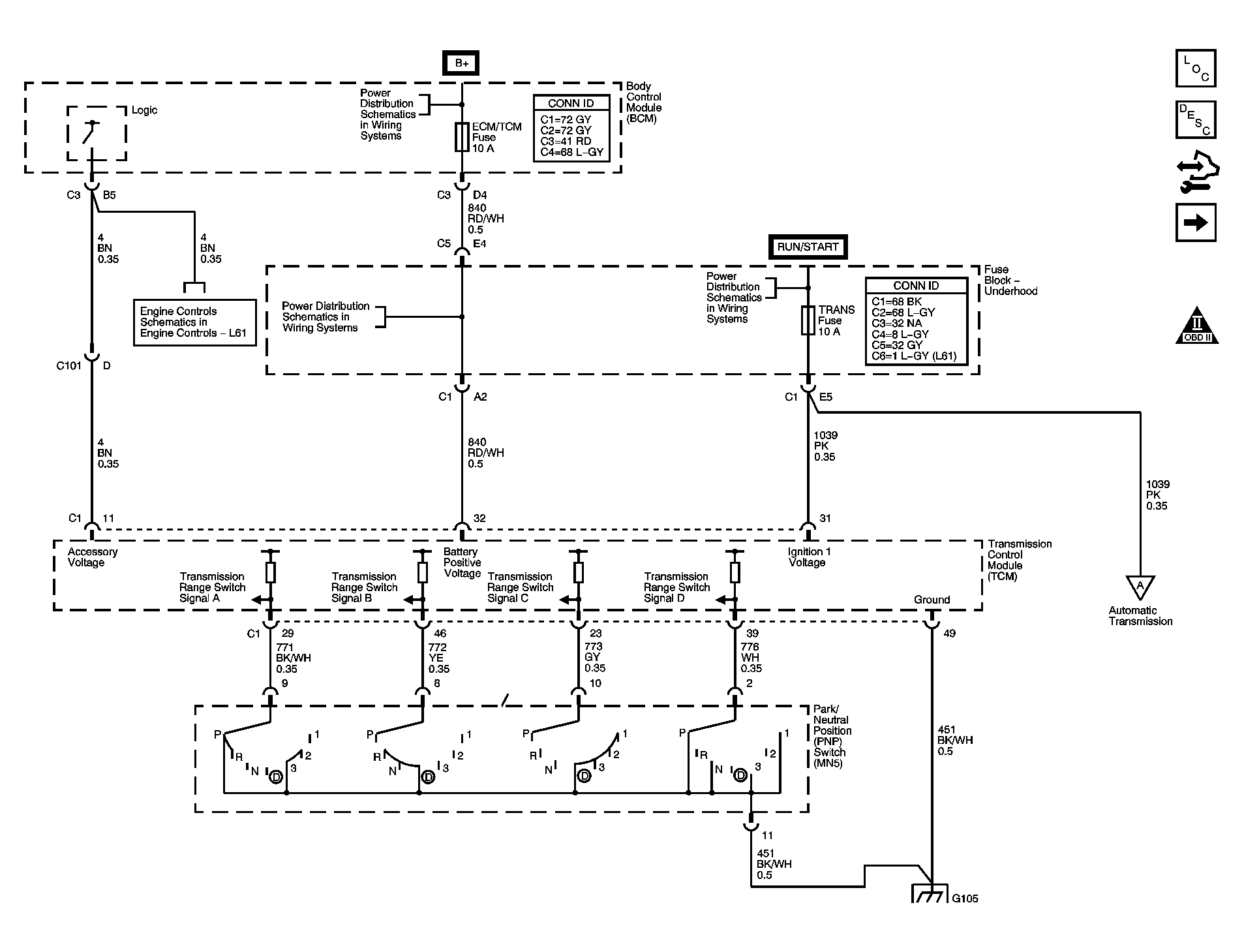

Fig 1: TCM, Power, Ground, and PNP Switch Schematics
GM1582686Courtesy of GENERAL MOTORS CORP.

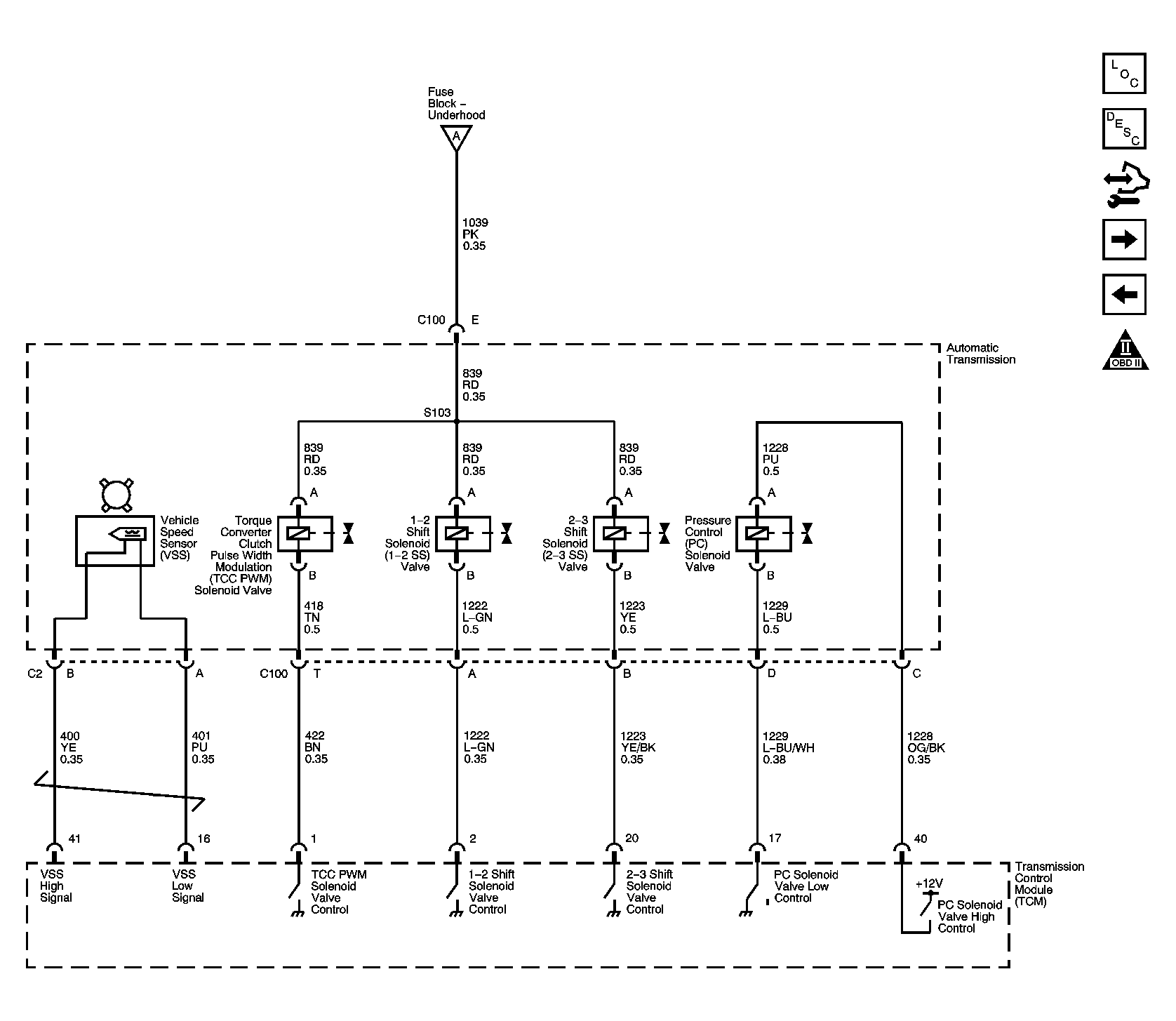

Fig 2: Transmission Solenoids and VSS Schematics
GM1582688Courtesy of GENERAL MOTORS CORP.

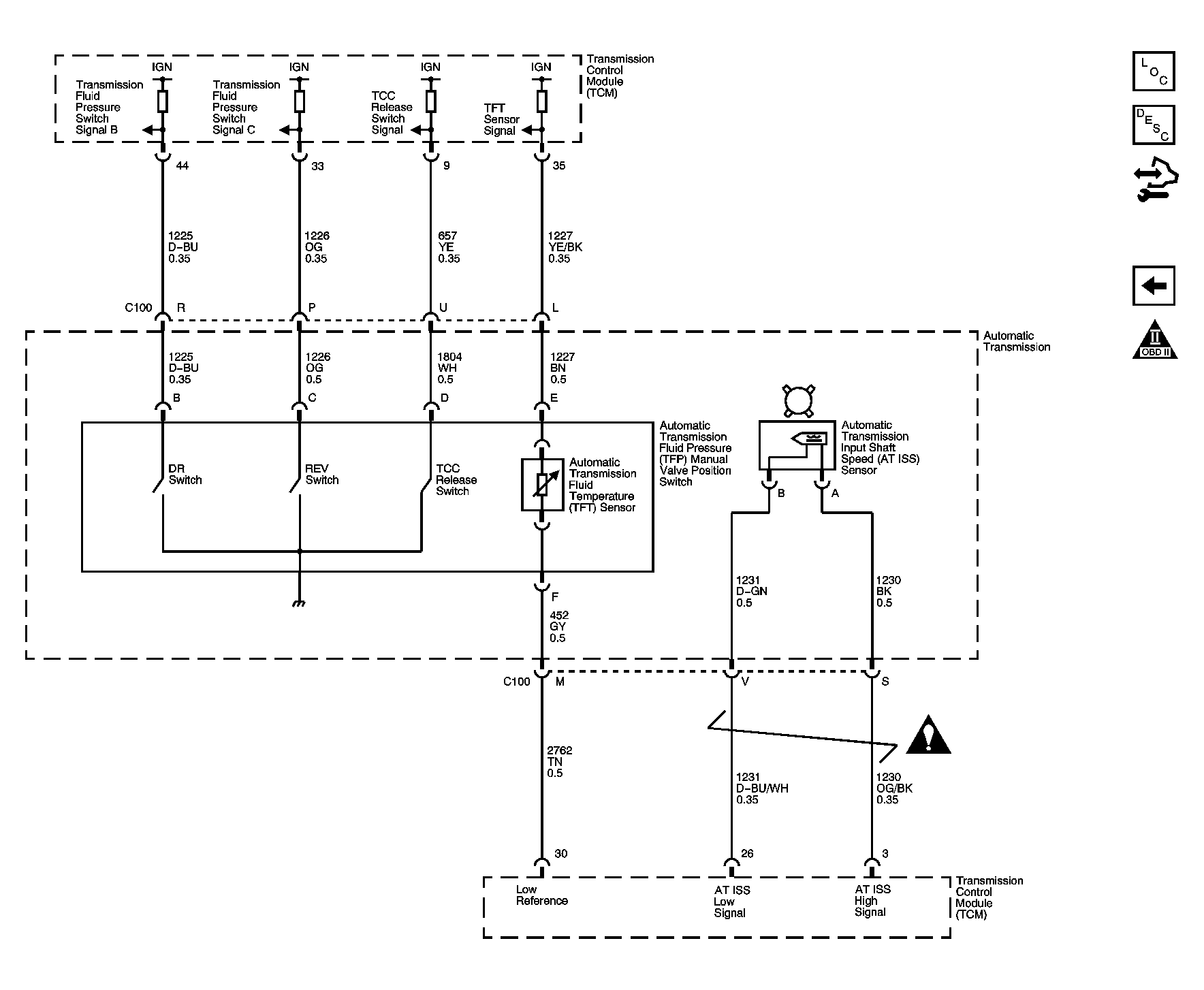

Fig 3: Transmission Switches, TFT and A/T ISS Sensors Schematics
GM1582691Courtesy of GENERAL MOTORS CORP.
