SIR Schematics

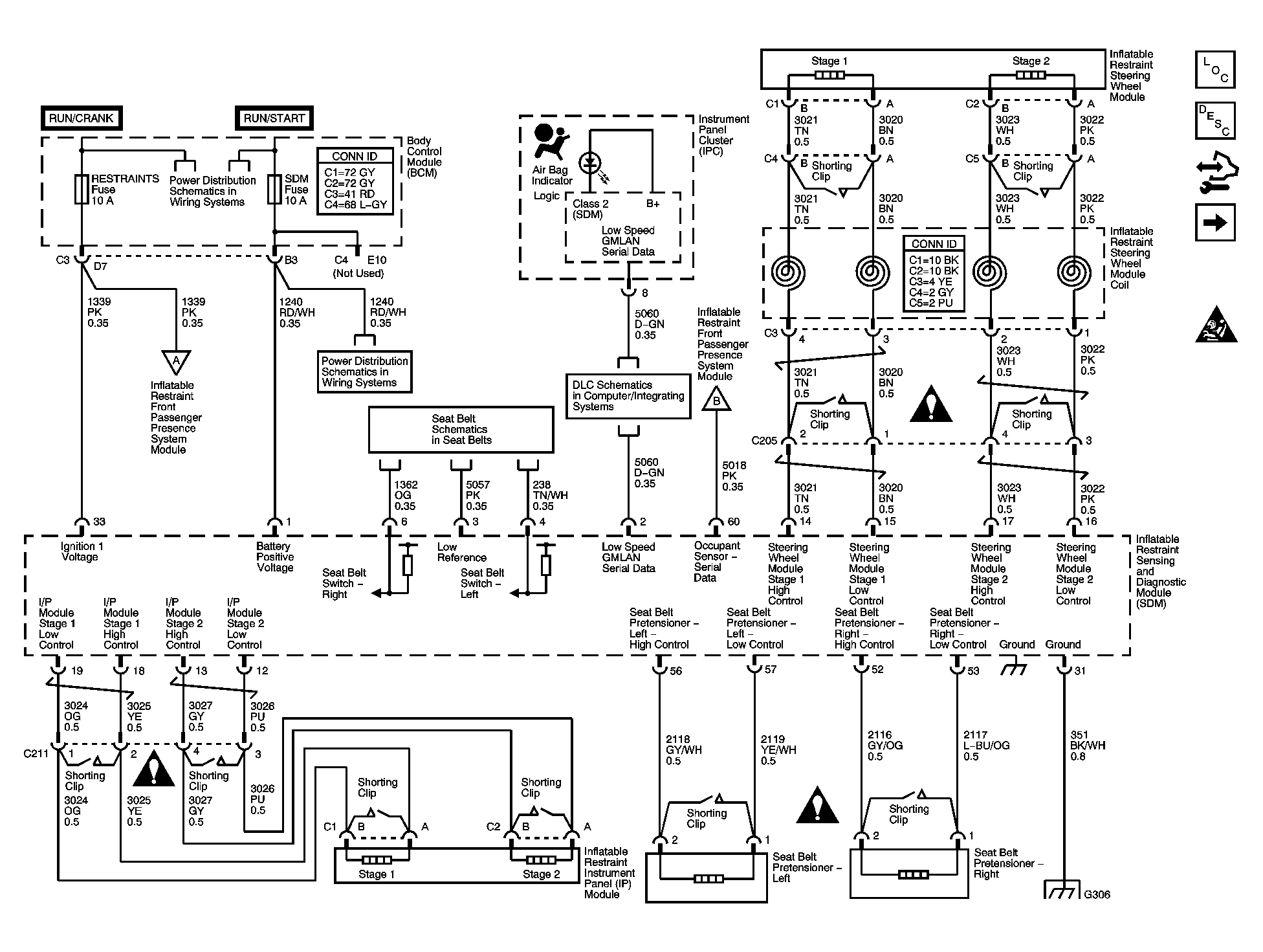

Fig 1: Indicators, Power, Ground, Pretensioners, and Front Air Bag Modules Schematic
GM1575934Courtesy of GENERAL MOTORS CORP.

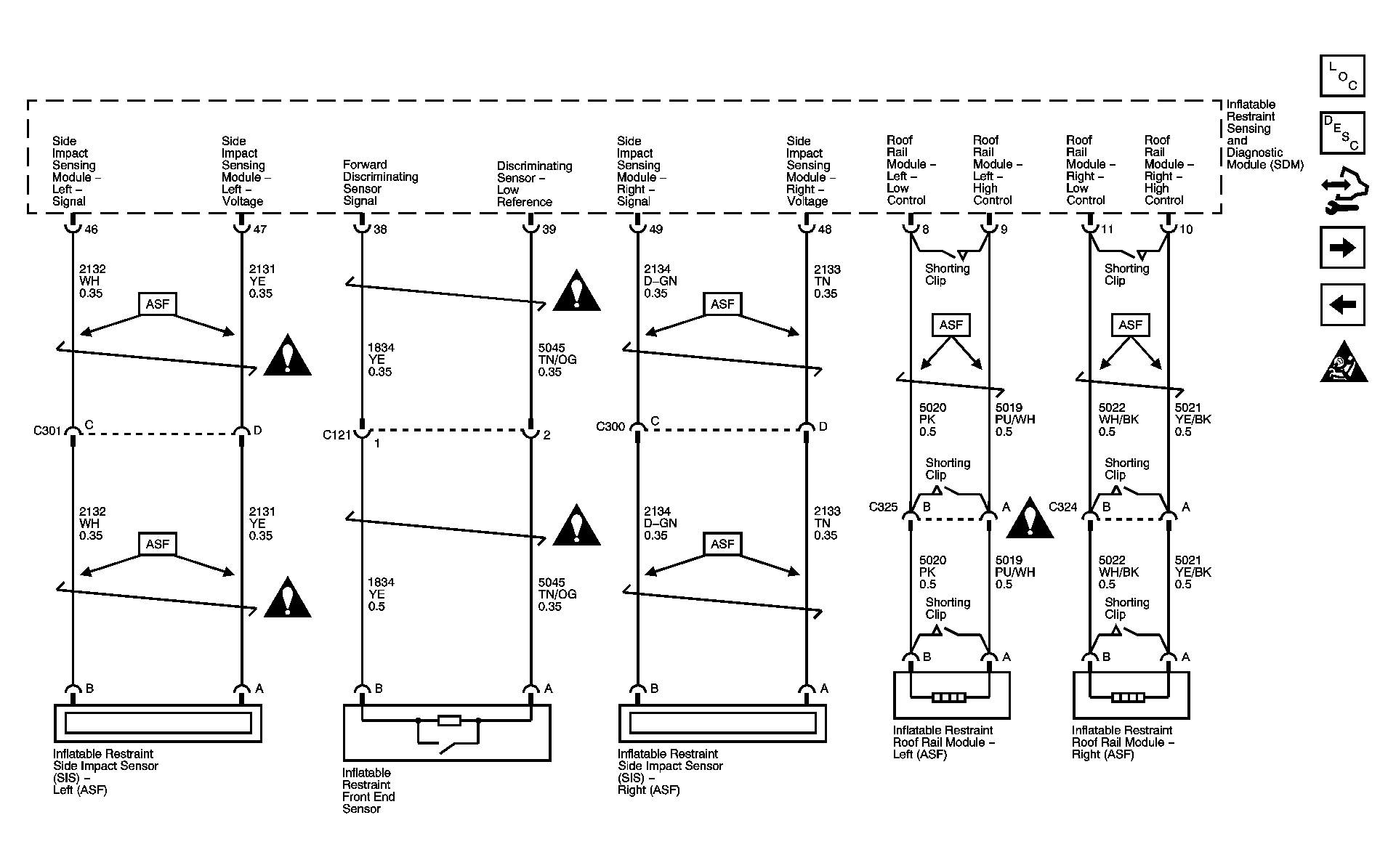

Fig 2: Side Impact (ASF), Roof Rail Module, and Front End Sensor Schematic
GM1575937Courtesy of GENERAL MOTORS CORP.

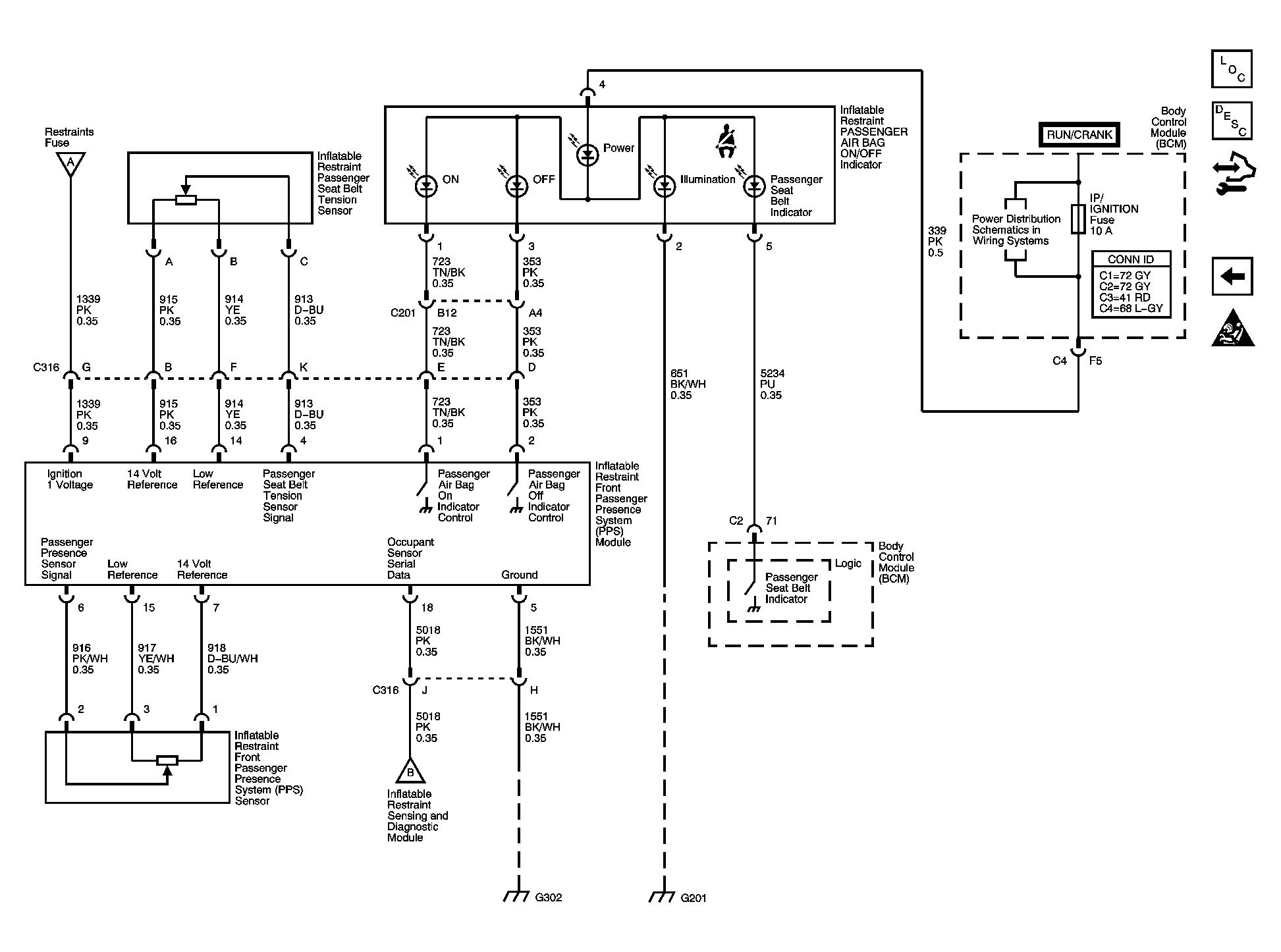

Fig 3: Passenger Presence System Schematic
GM1575940Courtesy of GENERAL MOTORS CORP.
