HVAC Schematics

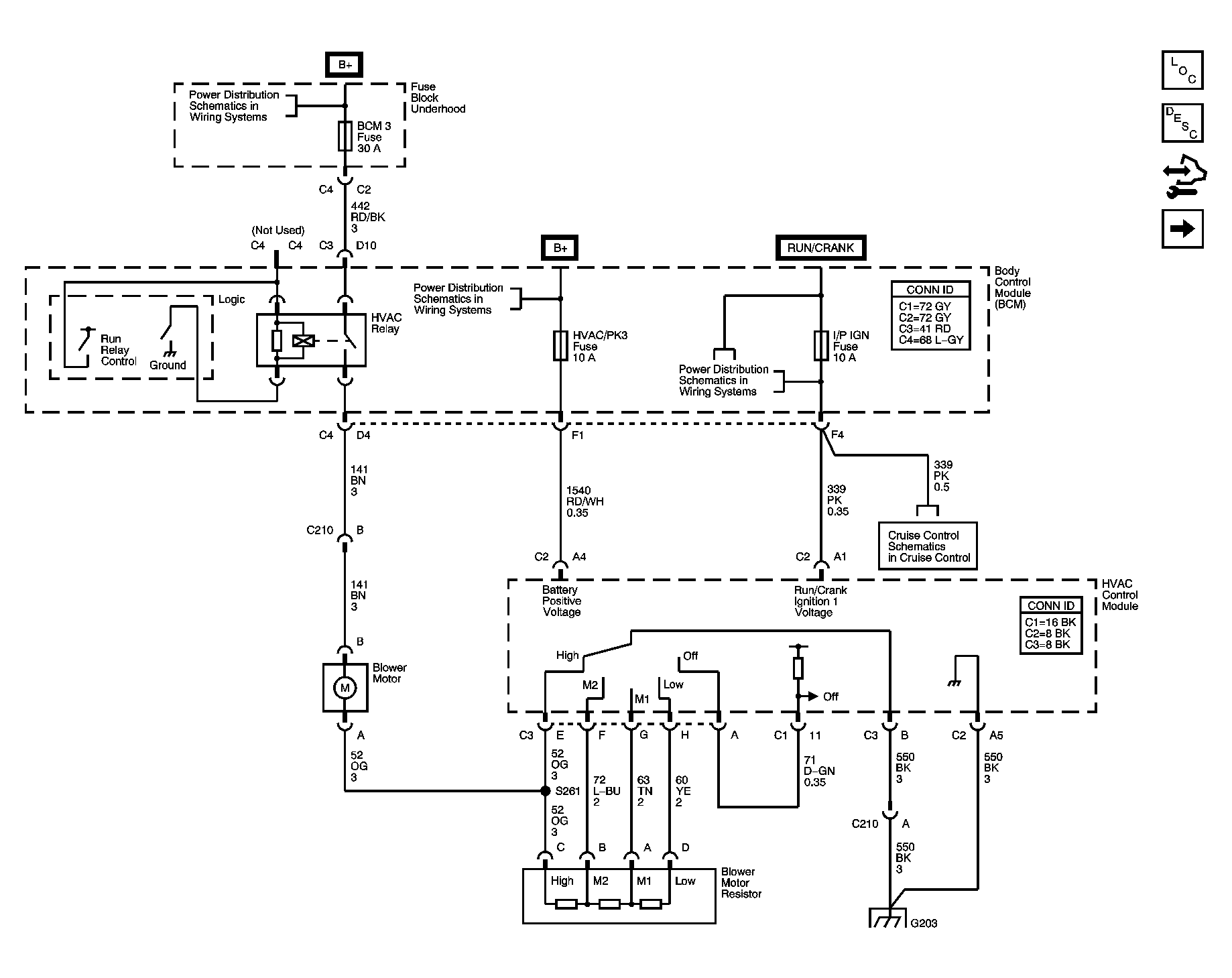

Fig 1: Power, Ground and Blower Motor Controls Schematic
GM1582703Courtesy of GENERAL MOTORS CORP.

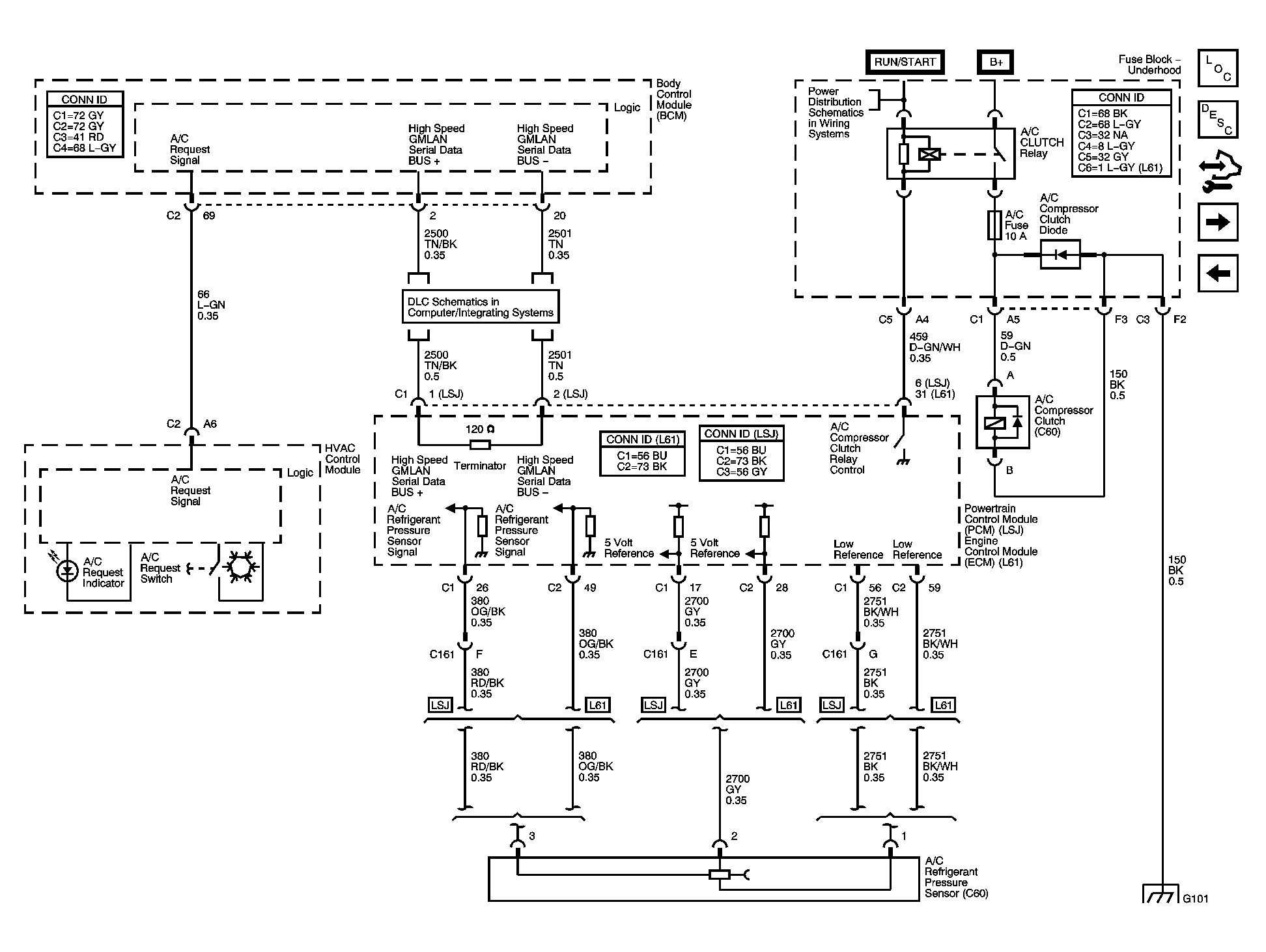

Fig 2: Compressor Controls Schematic
GM1582705Courtesy of GENERAL MOTORS CORP.

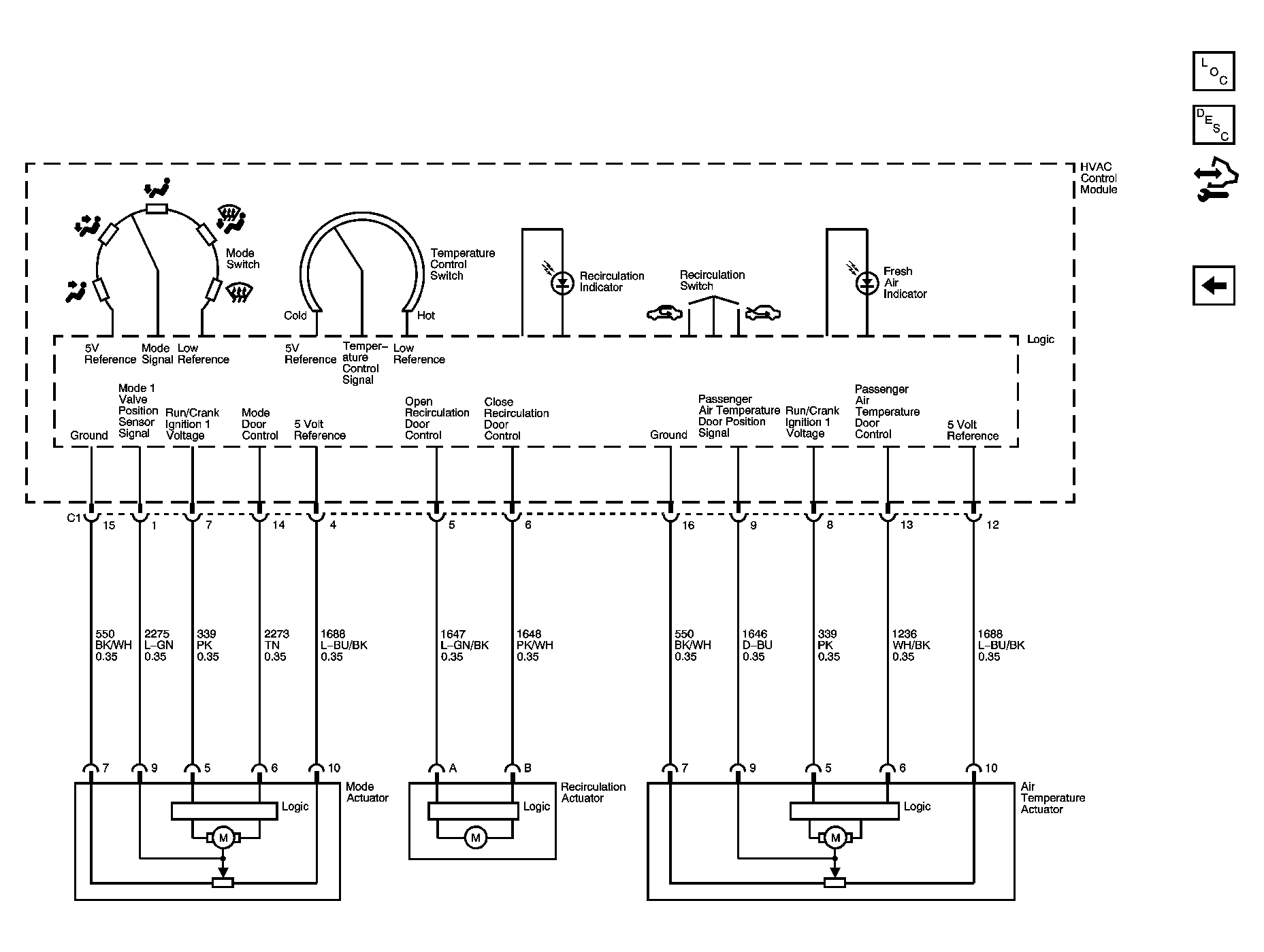

Fig 3: Mode and Air Temperature Controls Schematic
GM1582707Courtesy of GENERAL MOTORS CORP.
