Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the steering column. Refer to STEERING COLUMN REPLACEMENT .
    2. Fig 1: View Of Clutch Start Switch
    GM889965Courtesy of GENERAL MOTORS CORP.
  2. Remove the clutch start switch (2) from the clutch pedal bracket.
    3. Fig 2: View Of Clutch Pedal Pivot Nut
    GM878807Courtesy of GENERAL MOTORS CORP.
  3. Remove the clutch pedal pivot nut.

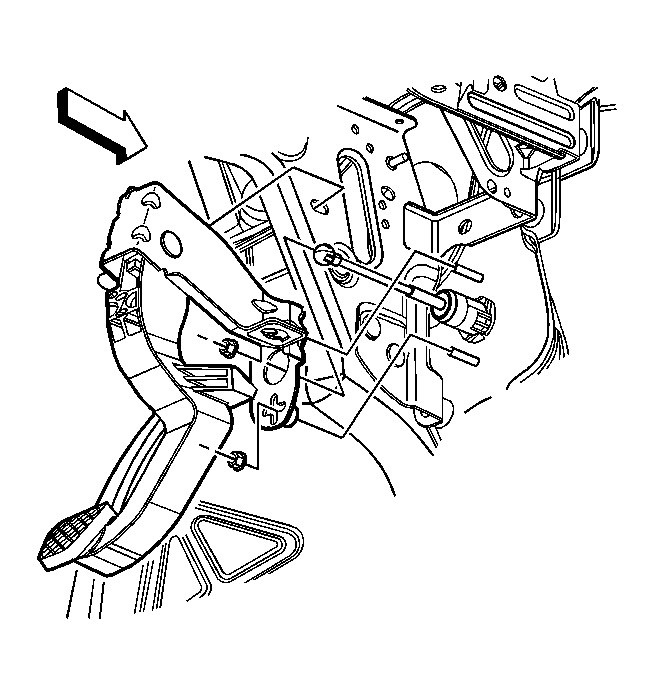

    4. Fig 3: View Of Clutch Pedal & Bracket Assembly
    GM878809Courtesy of GENERAL MOTORS CORP.
  4. Remove the clutch pedal bracket to front of dash nuts.
  5. Disconnect the electrical connector from the clutch pedal position (CPP) switch.
    6. Fig 4: Clutch Master Cylinder Pushrod Retainer Tabs
    GM1553006Courtesy of GENERAL MOTORS CORP.
  6. Depress the tabs of the clutch master cylinder pushrod retainer and release the clutch pedal from the pushrod.
  7. Remove the clutch pedal assembly from the vehicle.
  8. If replacing the clutch pedal, remove the CPP switch from the clutch pedal assembly. Refer to CLUTCH PEDAL POSITION SWITCH REPLACEMENT .
