Installation Procedure

WARNING: This page is about a different variant/trim than selected.

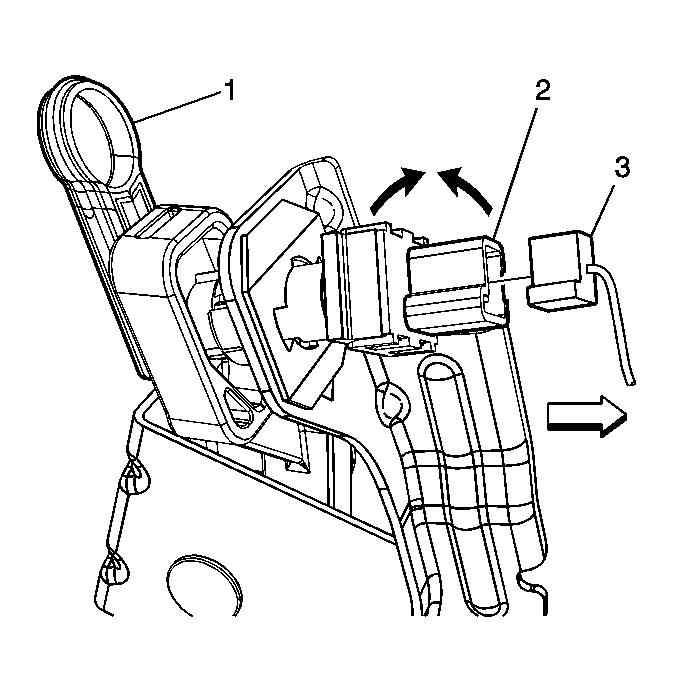

    Fig 1: Clutch Pedal Position Switch
    GM1547859Courtesy of GENERAL MOTORS CORP.
  1. While holding the pedal in the fully released position, press the switch (2) toward the pedal until the barrel of the switch (2) touches the shipping clip (1).
  2. Remove the shipping clip (1).
  3. Connect the electrical connector (3).
