Installation Procedure

WARNING: This page is about a different variant/trim than selected.

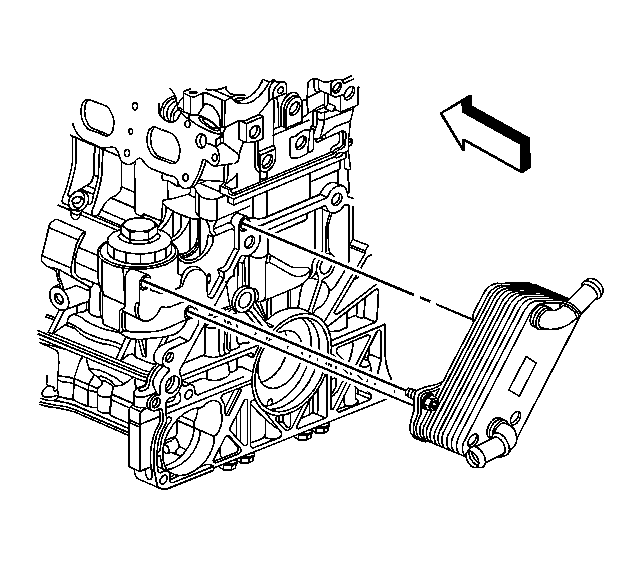

    Fig 1: Identifying Oil Cooler
    GM1578314Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the oil cooler to the engine block.
  2. Install the oil cooler bolts.

    Tighten:  Tighten the bolts to 22 N.m (16 lb ft).

    3. Fig 2: Positioning Radiator Outlet Hose Clamp At Oil Cooler
    GM1656115Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator outlet hose to the oil cooler.
  4. Position the radiator outlet hose clamp (2) at the oil cooler.
    5. Fig 3: Installing Radiator Surge Tank Outlet Hose To Thermostat Cover And Oil Cooler
    GM1656116Courtesy of GENERAL MOTORS CORP.
  5. Install the oil cooler outlet hose to the oil cooler.
  6. Position the oil cooler outlet hose clamp (2) at the oil cooler.
  7. Fill the cooling system. Refer to Draining and Filling Cooling System (2.2L (L61), 2.4L (LE5)) or Draining and Filling Cooling System (GE 47716 Fill) .
