Installation Procedure

WARNING: This page is about a different variant/trim than selected.

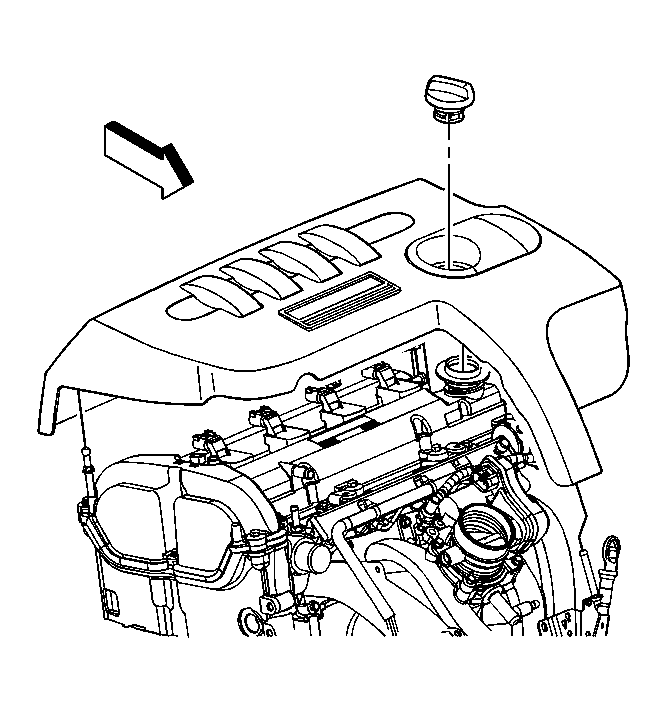

    Fig 1: Identifying Intake Manifold Cover W/Oil Fill Cap
    GM1647204Courtesy of GENERAL MOTORS CORP.
  1. Place the intake manifold cover onto the engine over the studs.
  2. Push down on the intake manifold cover directly over the lower right stud in order to engage the cover to the stud.
  3. Push down on the intake manifold cover directly over the upper left stud in order to engage the cover to the stud.
  4. Install the engine oil fill cap.
