Ignition Control - Ignition System Schematics

WARNING: This page is about a different variant/trim than selected.

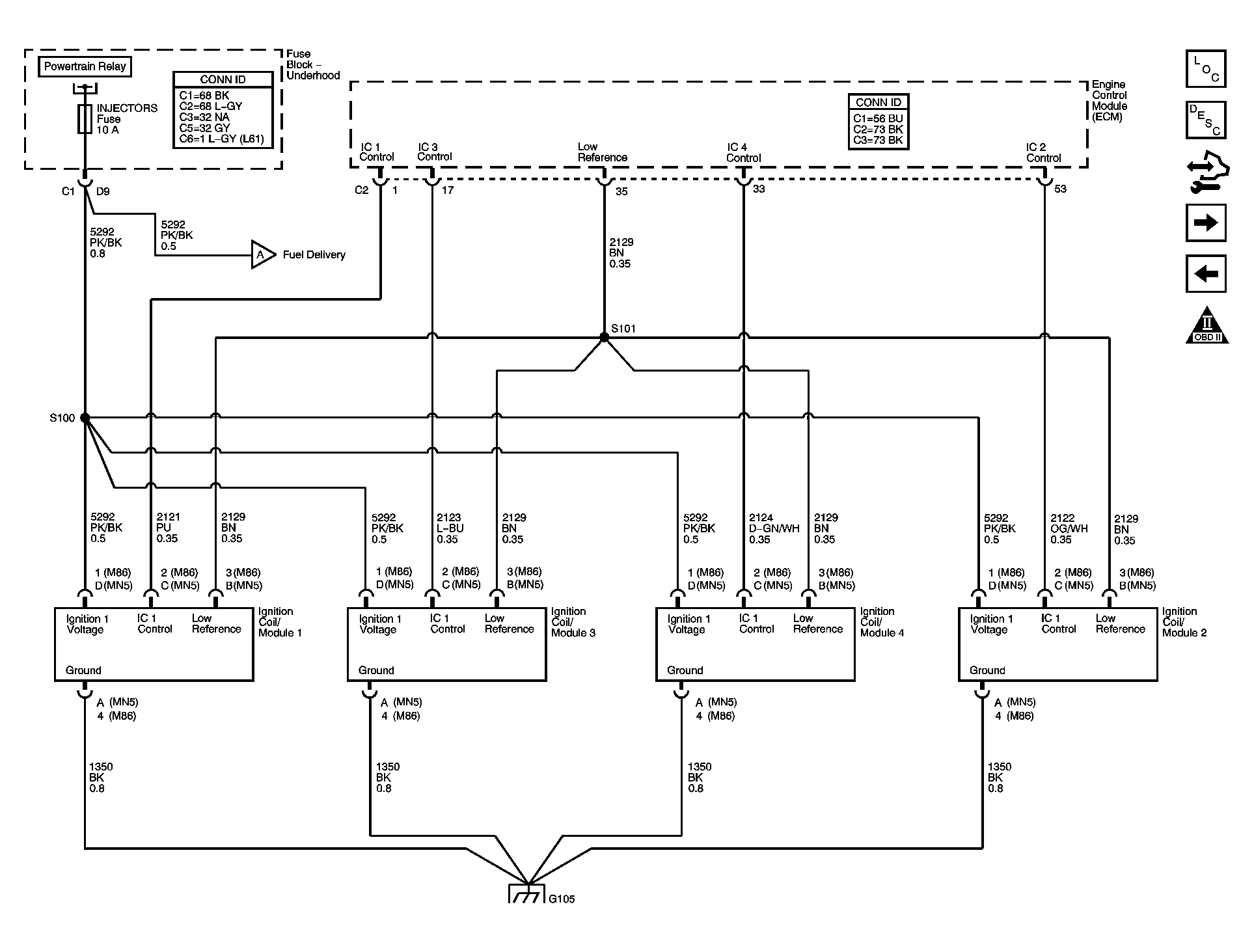

Fig 1: Ignition Control - Ignition System Schematics
GM1575983Courtesy of GENERAL MOTORS CORP.
