Engine Data Sensors - Throttle Actuator Controls Schematics

WARNING: This page is about a different variant/trim than selected.

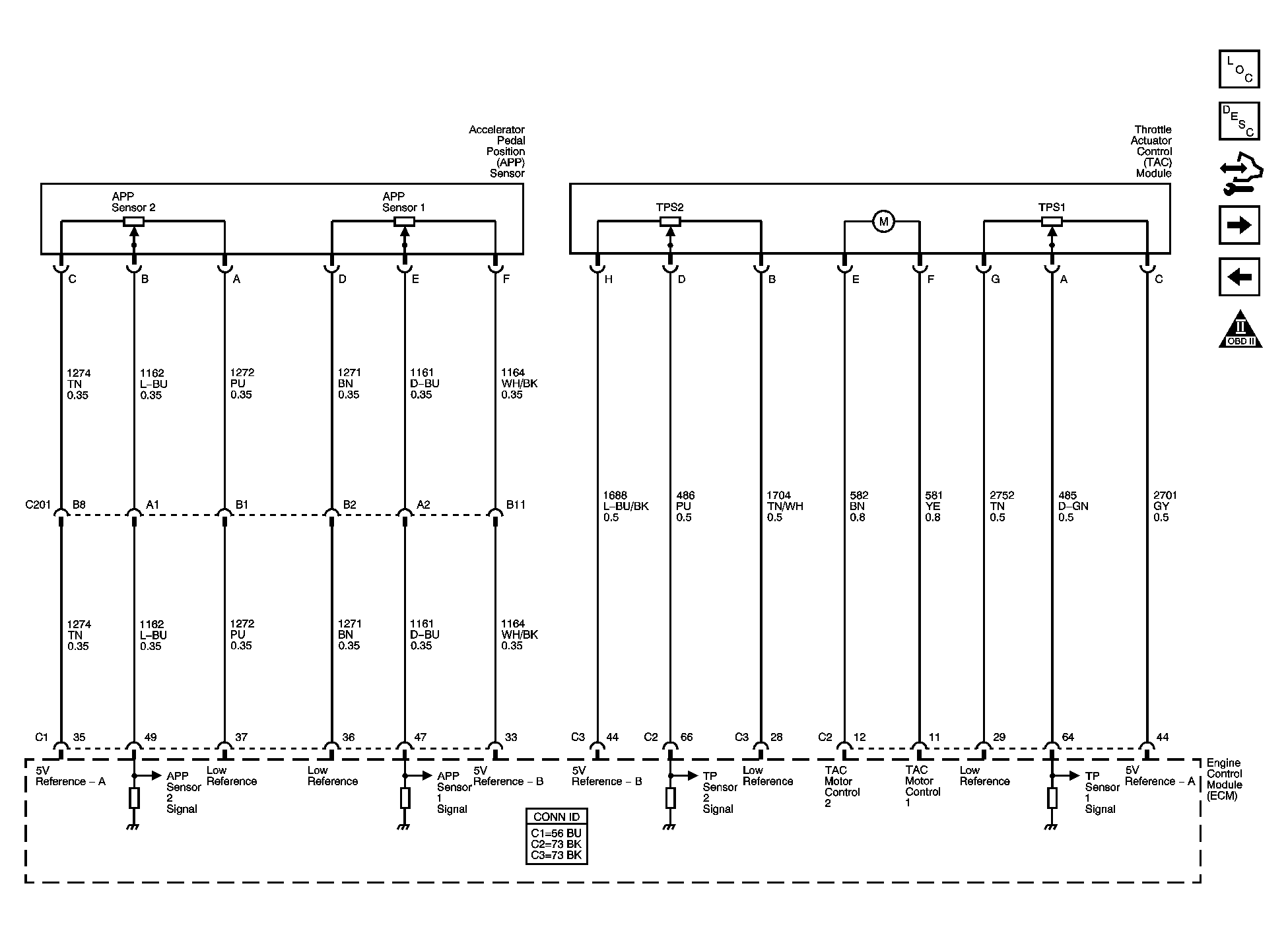

Fig 1: Engine Data Sensors - Throttle Actuator Controls Schematics
GM1575981Courtesy of GENERAL MOTORS CORP.
