Section 2 (Engine Controls - 2.4L - Introduction (2 Of 2))
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
>>
Engine Data Sensors - Oxygen Sensors Schematics
Engine Data Sensors - Oxygen Sensors Schematics
WARNING:
This page is about a different variant/trim than selected.

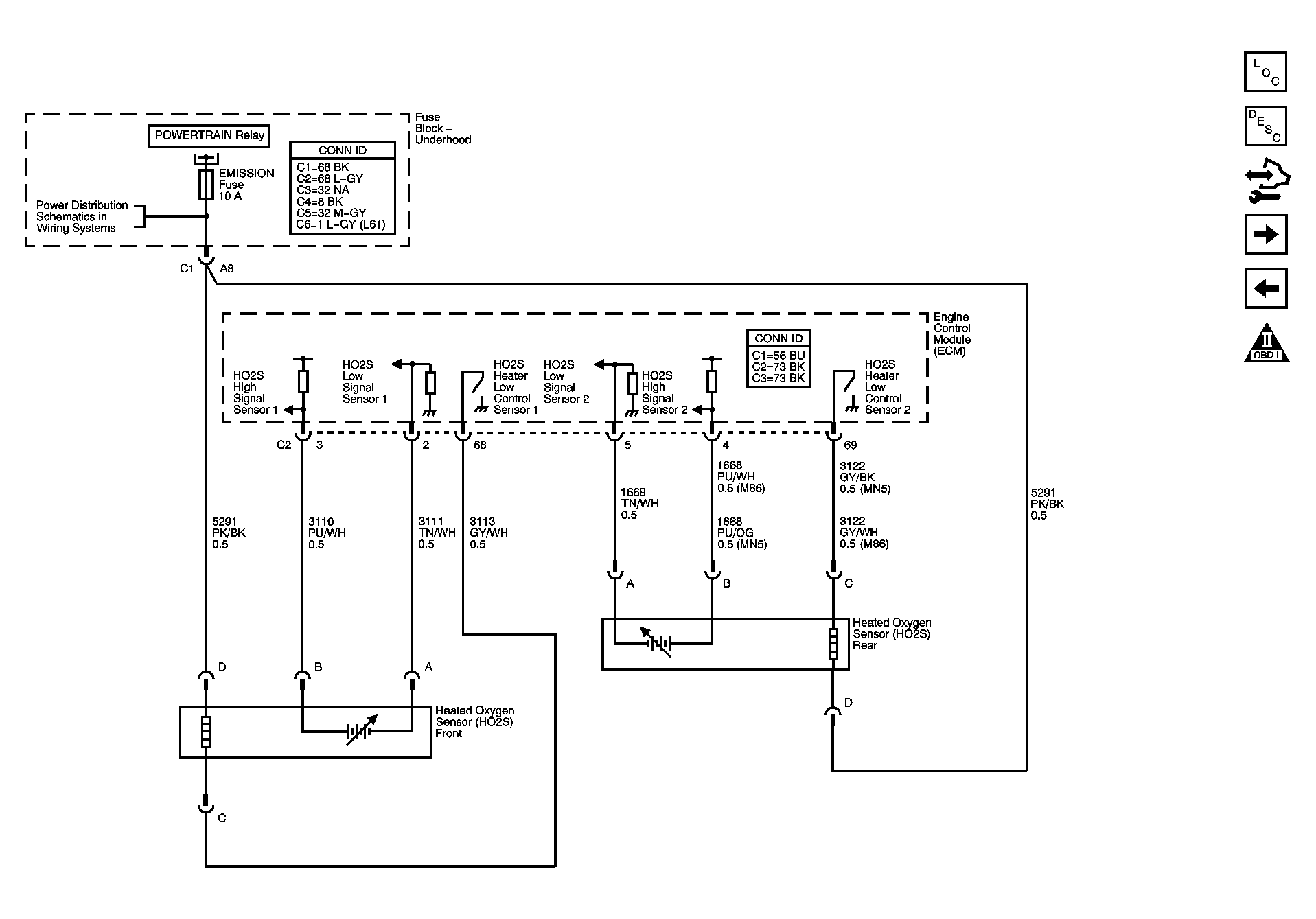

Fig 1: Engine Data Sensors - Oxygen Sensors Schematics
Courtesy of GENERAL MOTORS CORP.
