Controlled/Monitored Subsystem References Schematics

WARNING: This page is about a different variant/trim than selected.

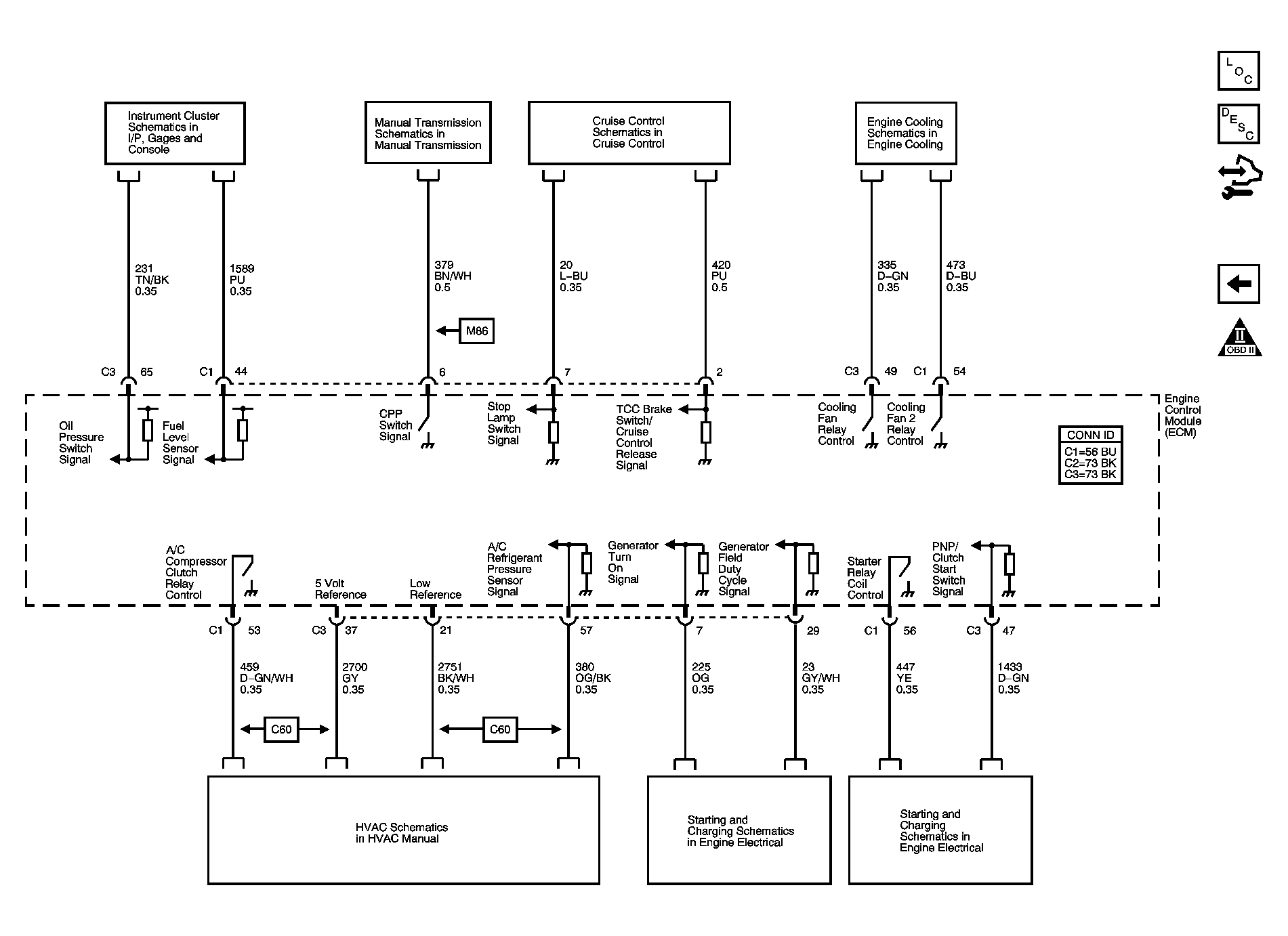

Fig 1: Controlled/Monitored Subsystem References Schematics
GM1575992Courtesy of GENERAL MOTORS CORP.
