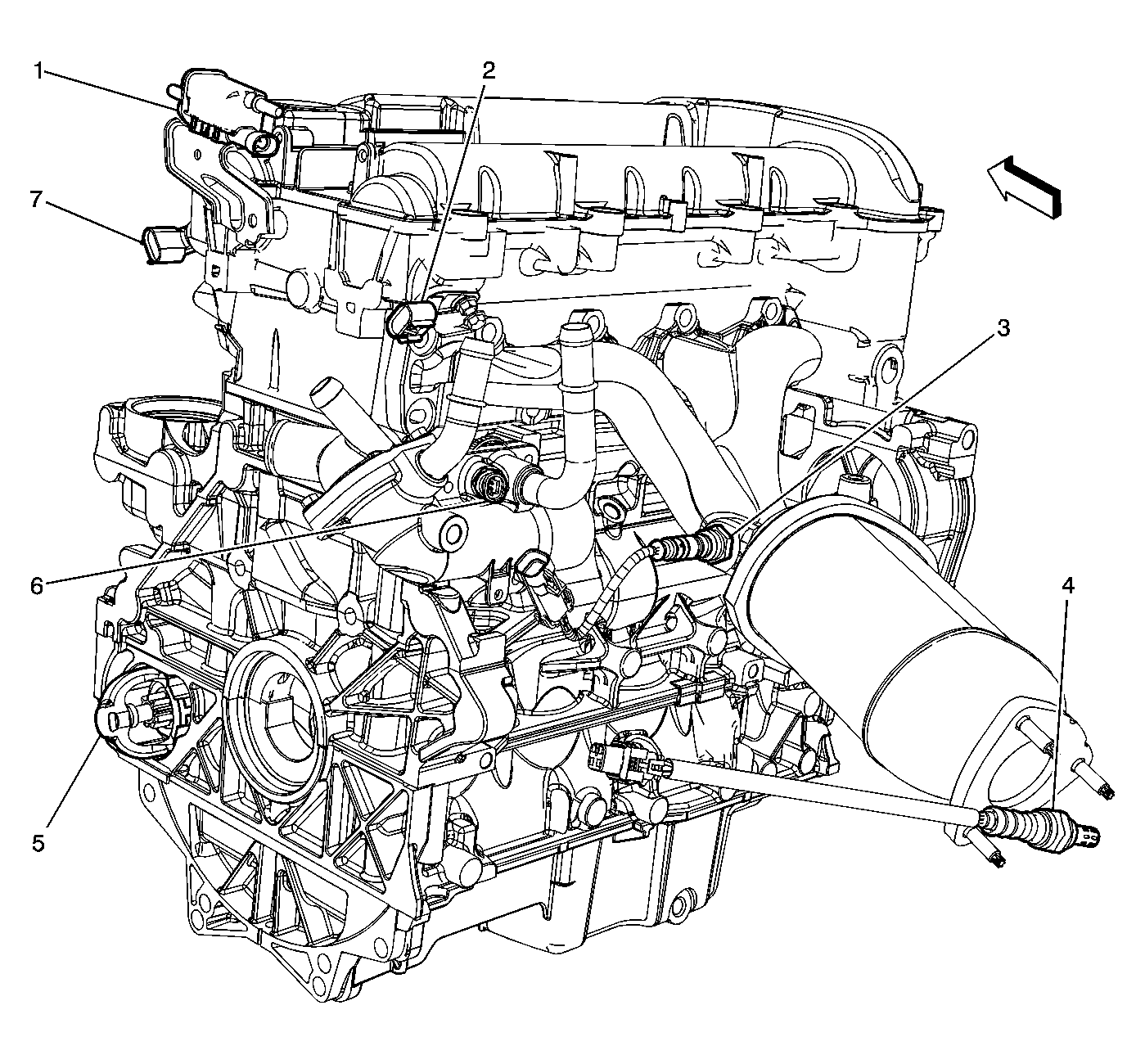

Rear Engine Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 2 |
Camshaft Position (CMP) Sensor - Exhaust |
| 3 |
Heated Oxygen Sensor (HO2S) 1 |
| 4 |
Heated Oxygen Sensor (HO2S) 2 |
| 5 |
Starter |
| 6 |
Engine Coolant Temperature (ECT) Sensor |
| 7 |
Camshaft Position (CMP) Sensor - Intake |
