Fuel Tank Component Views
WARNING: This page is about a different variant/trim than selected.

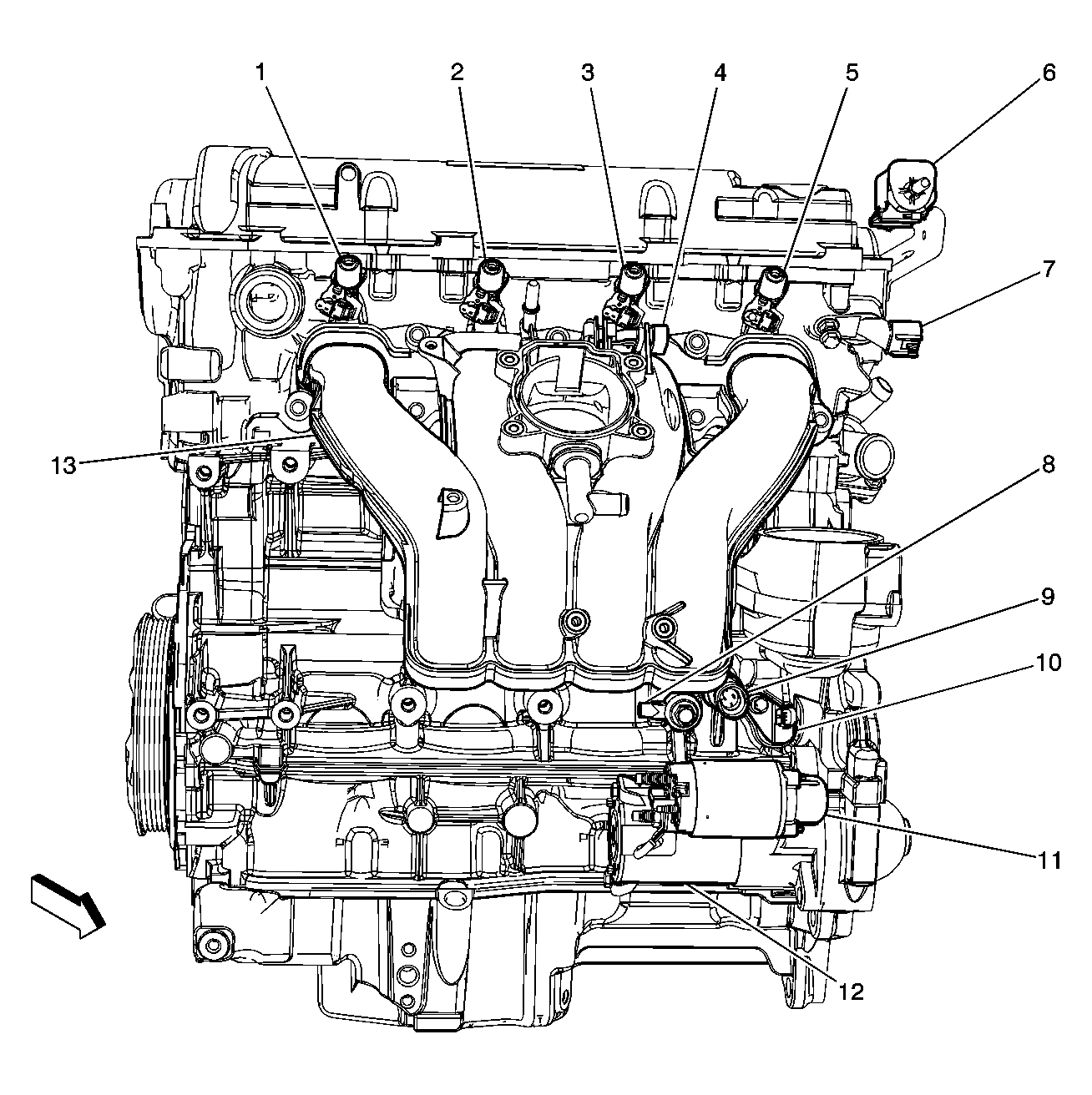

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 1 |
| 2 | Fuel Injector 2 |
| 3 | Fuel Injector 3 |
| 4 | Manifold Absolute Pressure (MAP) Sensor |
| 5 | Fuel Injector 4 |
| 6 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 7 | Camshaft Position (CMP) Sensor - Intake |
| 8 | Knock Sensor (KS) |
| 9 | Engine Oil Pressure (EOP) Switch |
| 10 | Crankshaft Position (CKP) Sensor |
| 11 | Starter Solenoid |
| 12 | Starter |
| 13 | Intake Manifold |
