Section 1 (Engine Controls - 2.0L - Introduction (2 Of 2))
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
>>
Fuel Delivery - Wiring Diagram
Fuel Delivery - Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

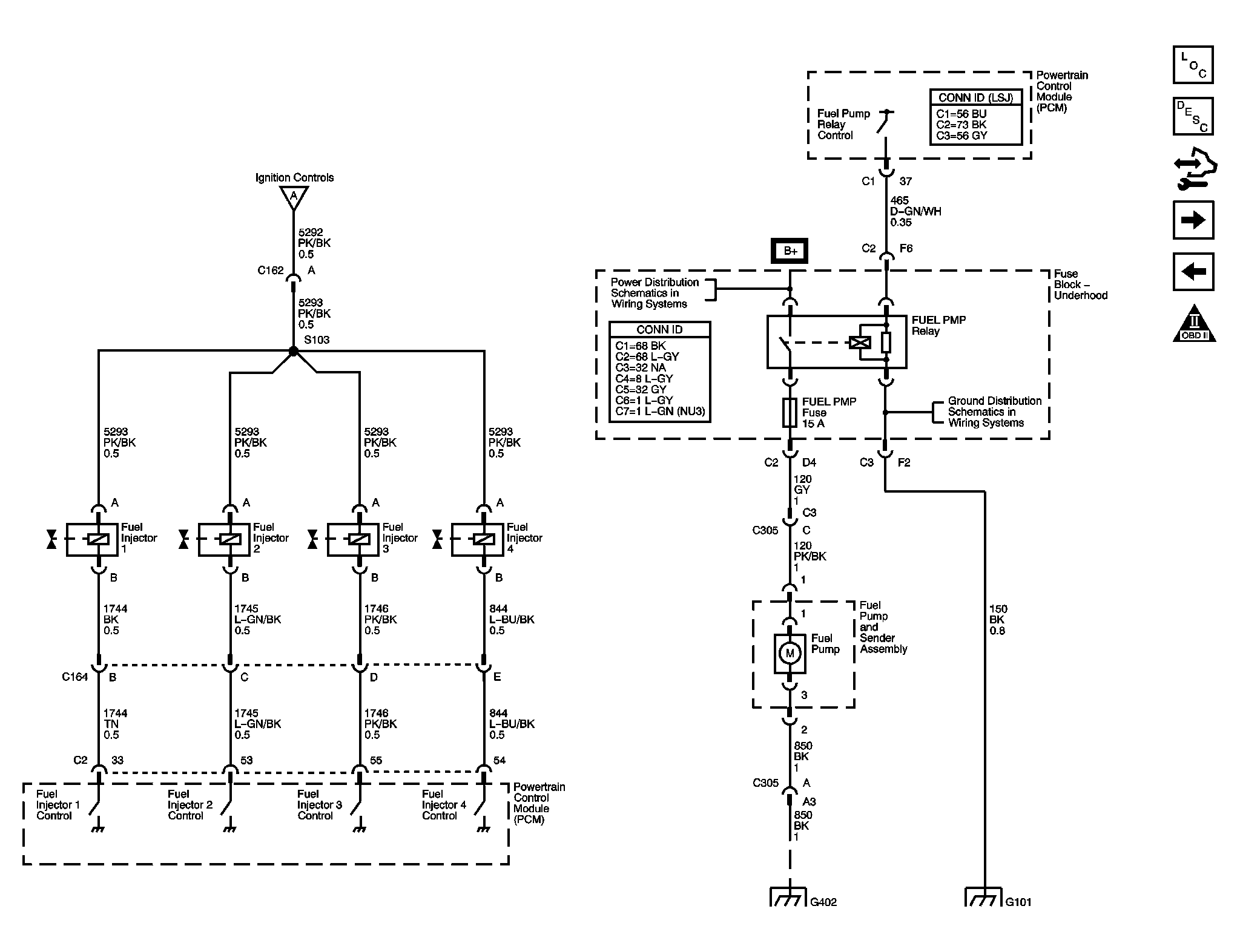

Fig 1: Fuel Delivery - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
