Engine Data Sensors - APP And TAC - Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

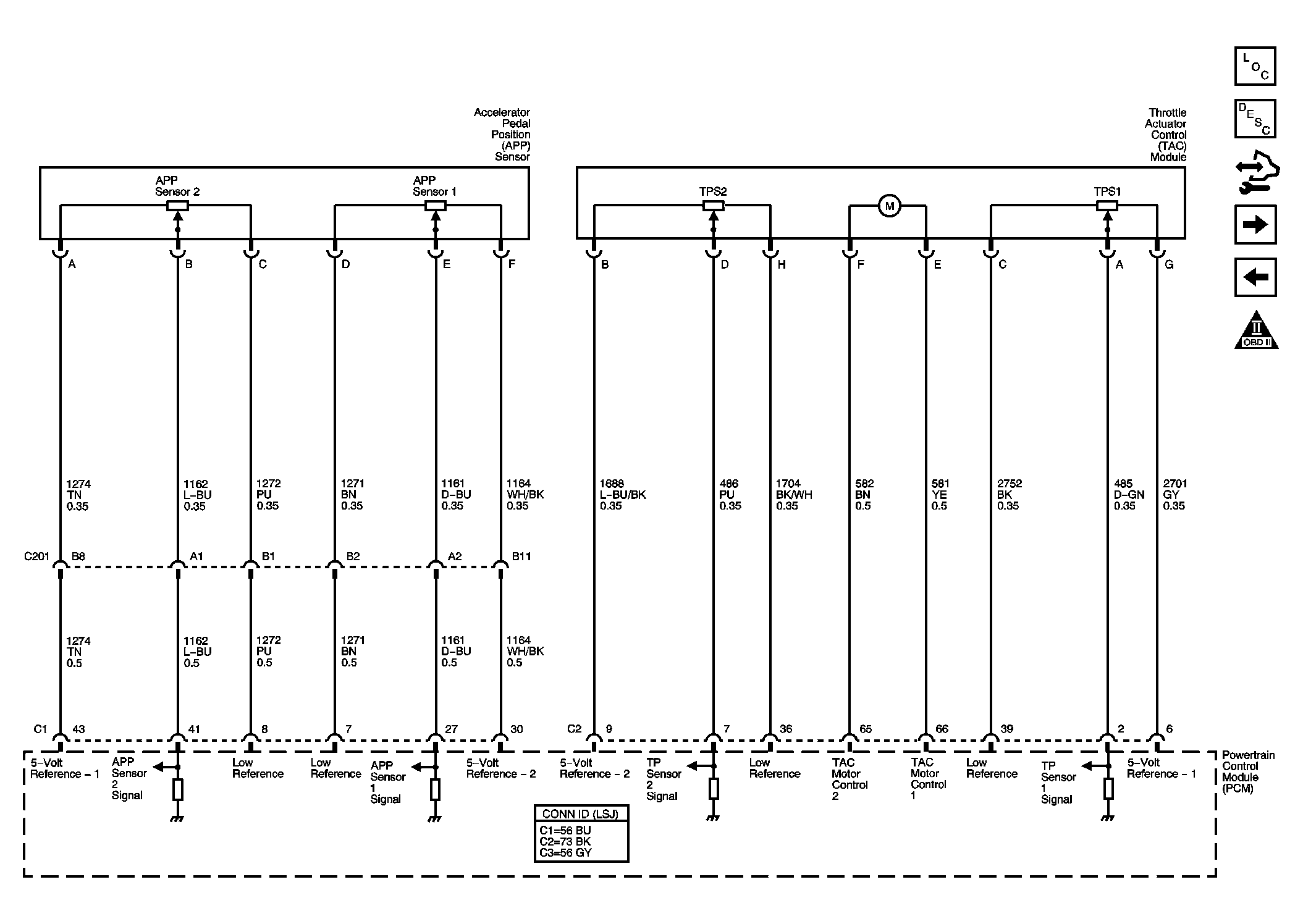

Fig 1: Engine Data Sensors - APP And TAC - Wiring Diagram
GM1582659Courtesy of GENERAL MOTORS CORP.
