Removal Procedure

WARNING: This page is about a different variant/trim than selected.

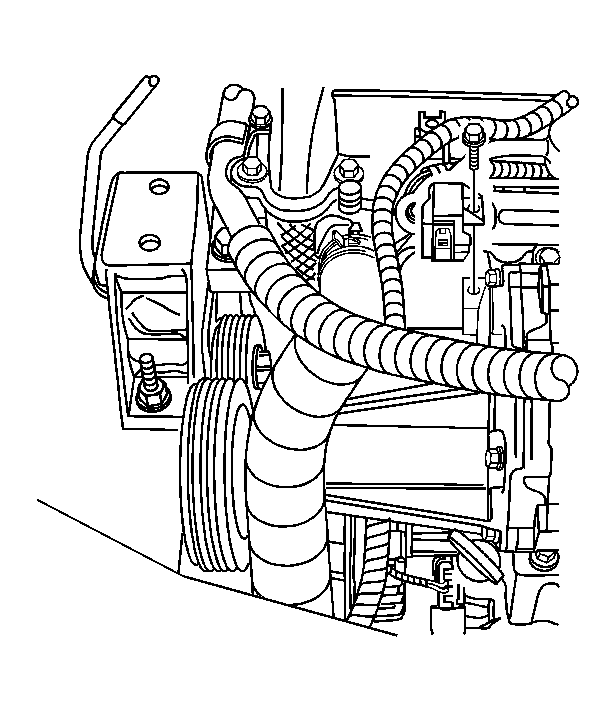

    Fig 1: Locating TMAP Sensor
    GM1382191Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the temperature manifold absolute pressure (TMAP) sensor harness connector.
  2. Remove the TMAP sensor from the intake manifold.
    IMPORTANT: If the TMAP sensor seal is damaged, the TMAP sensor must be replaced.
  3. Inspect the seal for damage.
