Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.
  2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
  3. Disconnect the engine fuel feed pipe from the chassis fuel flex hose. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
    4. Fig 1: View Of Fuel Line
    GM1387192Courtesy of GENERAL MOTORS CORP.
  4. Use a back up wrench on the fuel rail and disconnect the fuel feed pipe.

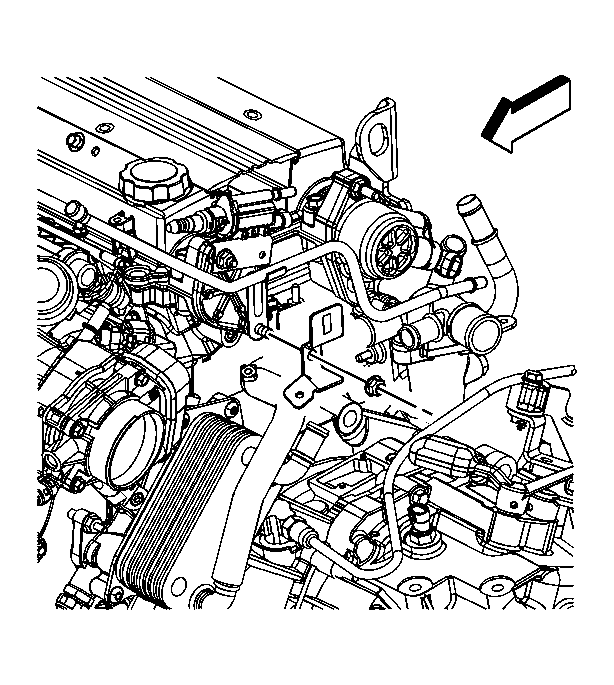

    5. Fig 2: Locating Fuel Feed Pipe Fastener (RPO Code LSJ)
    GM1389385Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel feed pipe fastener located on the engine.
  6. Remove the engine fuel feed pipe.
