Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Position the engine purge pipe to the EVAP canister purge valve and the intake manifold.

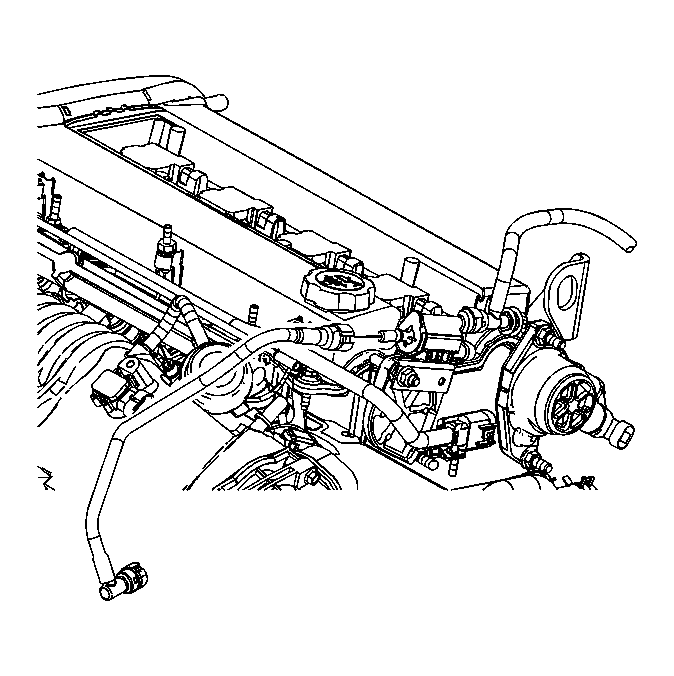

    2. Fig 1: View Of Engine Purge Pipe
    GM1387195Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine purge pipe to the throttle body.
  3. Connect the engine purge pipe to the EVAP canister purge valve.
