Installation Procedure

WARNING: This page is about a different variant/trim than selected.

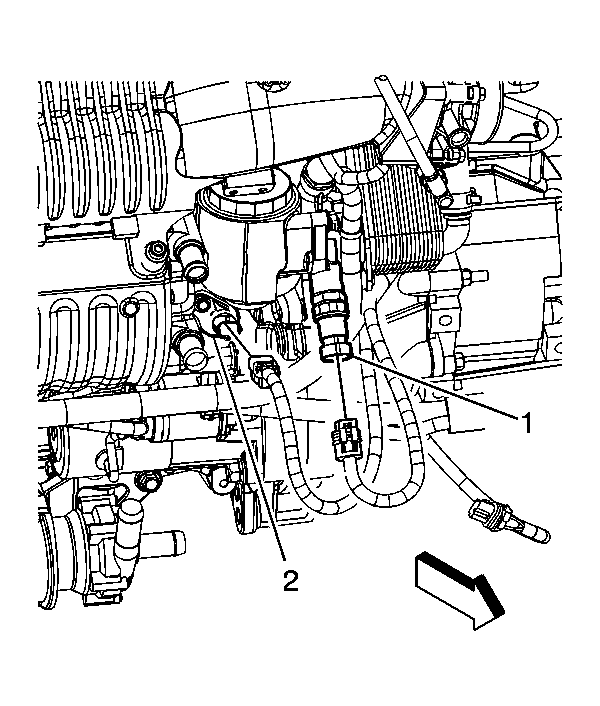

Fig 1: Locating CKP Sensor
GM1389391Courtesy of GENERAL MOTORS CORP.
  1. Inspect the CKP sensor O-ring and lubricate with a mineral based grease.
  2. Gently insert the CKP sensor (2) into the block.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the CKP sensor bolt.

    Tighten:  Tighten the CKP sensor bolt to 10 N.m (89 lb in).

  4. Reconnect the CKP sensor electrical connector.
  5. Install the starter. Refer to Starter Motor Replacement (RPOs L61/LE5) or Starter Motor Replacement (RPO LSJ) in Engine Electrical.
  6. Perform the CKP system Variation Learn Procedure. Refer to CKP System Variation Learn Procedure .
