Removal Procedure

WARNING: This page is about a different variant/trim than selected.

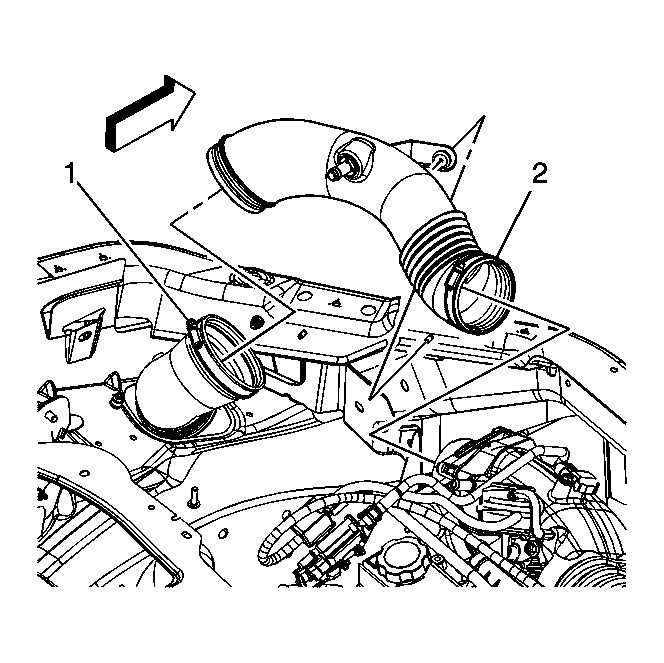

    Fig 1: Loosening The Air Cleaner Assembly Air Duct At The Outlet Duct Clamp
    GM1601463Courtesy of GENERAL MOTORS CORP.
  1. Loosen the air cleaner assembly air duct at the outlet duct clamp (1).
  2. Loosen the outlet duct clamp (2) at the throttle body.
  3. Remove the air outlet duct.
