Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Hydraulic Valve Lash Adjusters

Courtesy of GENERAL MOTORS CORP.

Install the hydraulic valve lash adjusters into their bores in the cylinder head.
Lubricate the hydraulic lash adjusters. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Fig 2: Lubricating valve tips

Courtesy of GENERAL MOTORS CORP.

Lubricate the valve tips. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Fig 3: Identifying Valve Rocker Arms

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Used valve rocker arms MUST be returned to their original position on the camshaft. If the camshaft is being replaced, the rocker arms MUST also be replaced.

Position the valve rocker arms on the tip of the valve stem and on the valve lash adjuster. Lubricate the rocker arms. Refer to Adhesives, Fluids, Lubricants, and Sealers .

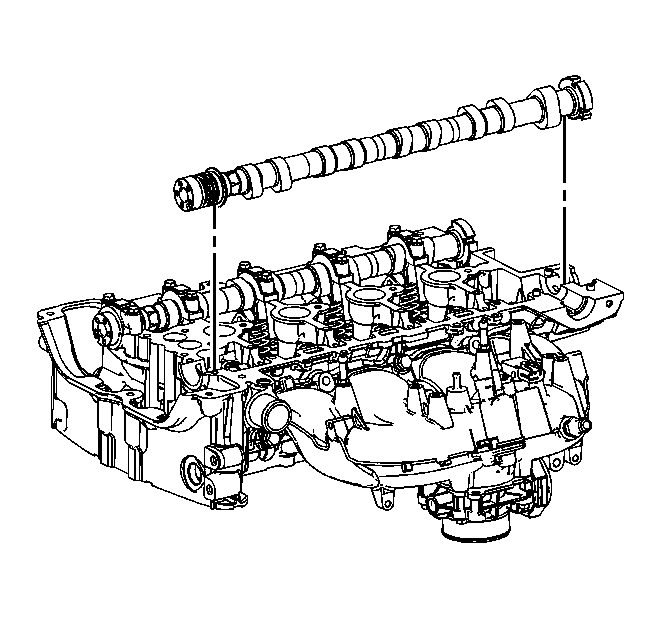

Fig 4: Identifying Intake Camshaft

Courtesy of GENERAL MOTORS CORP.

Install the intake camshaft. Lubricate the camshaft. Refer to Adhesives, Fluids, Lubricants, and Sealers .

Fig 5: Locating Head Sealer Application Areas

Courtesy of GENERAL MOTORS CORP.

Apply a 3.5 mm (0.138 in) bead of sealer (1) to the cylinder head. Refer to Adhesives, Fluids, Lubricants, and Sealers .
In areas were the rear bearing cap ends on the perimeter rail, extend the bead of sealer 4.0 mm (0.1575 in) beyond the edge of the cap (a).
Run the bead of sealer to within 4.0 mm (0.1575 in) of end points (b).

Fig 6: Identifying Rear Bearing Cap

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the rear bearing cap and bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

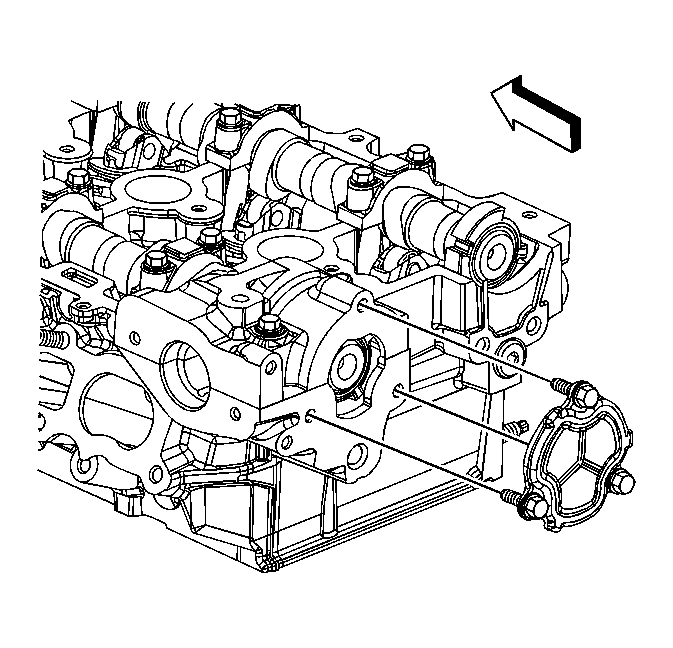

Fig 7: Identifying Cylinder Head Opening Plate

Courtesy of GENERAL MOTORS CORP.

Install the cylinder head opening plate and bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 8: View Of Valve Lifter Follower

Courtesy of GENERAL MOTORS CORP.

Install the valve lifter follower.

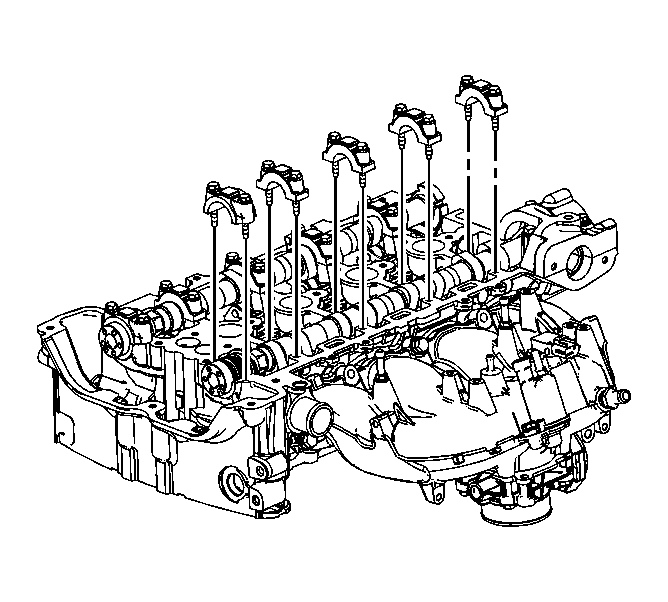

Fig 9: View Of Camshaft Bearing Caps

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The caps should be installed on the cylinder head in sequence as shown on top of the bearing caps.

Position the camshaft bearing caps. Install the bearing cap bolts hand tight.
Tighten the bearing cap bolts in increments of 3 turns until they are seated.
Tighten: Tighten the bolts to 10 N.m (89 lb in).
Install the high pressure fuel pump. Refer to High Pressure Fuel Pump Replacement .
Install the camshaft position intake actuator. Refer to Camshaft Position Intake Actuator Replacement .
