Engine Flywheel Removal

WARNING: This page is about a different car, the 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

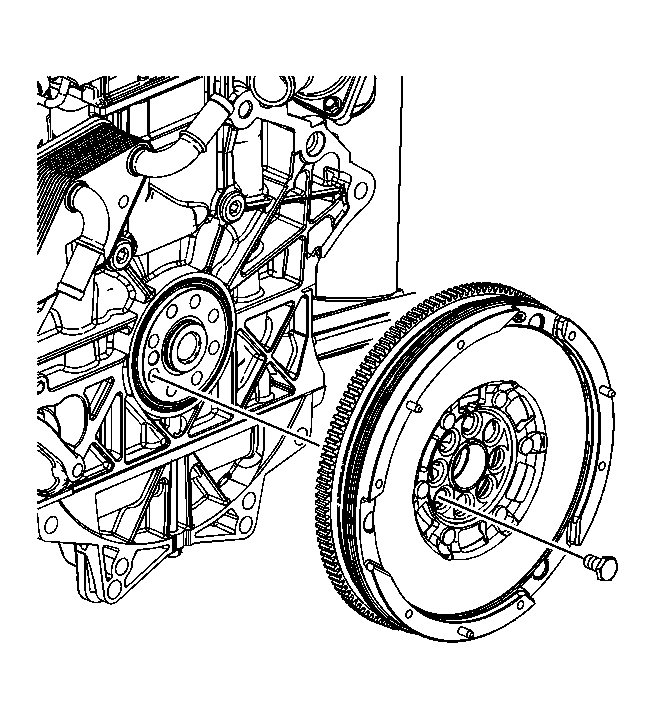

    Fig 1: Flywheel (M/T)
    GM1769535Courtesy of GENERAL MOTORS CORP.
  1. Remove the flywheel attaching bolts.
  2. Remove the flywheel, if the vehicle has a manual transmission.
    3. Fig 2: Flywheel (A/T)
    GM1769538Courtesy of GENERAL MOTORS CORP.
  3. Remove the flywheel attaching bolts.
  4. Remove the flywheel, if the vehicle has an automatic transmission.
