Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

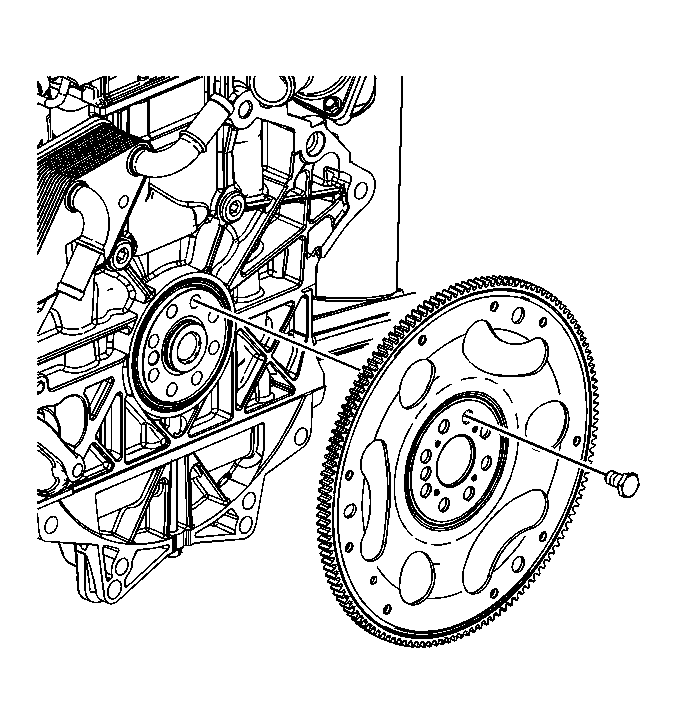

Fig 1: Flywheel (A/T)

Courtesy of GENERAL MOTORS CORP.

Install the flywheel.
Install the NEW bolts.

NOTE: Refer to Fastener Notice .

Hold the crankshaft.
Tighten: Tighten the flywheel bolts to 53 N.m (39 lb ft), plus 25 degrees, using the J 45059 . See Special Tools .
