Engine Coolant Fan Motor Replacement (LNF)

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

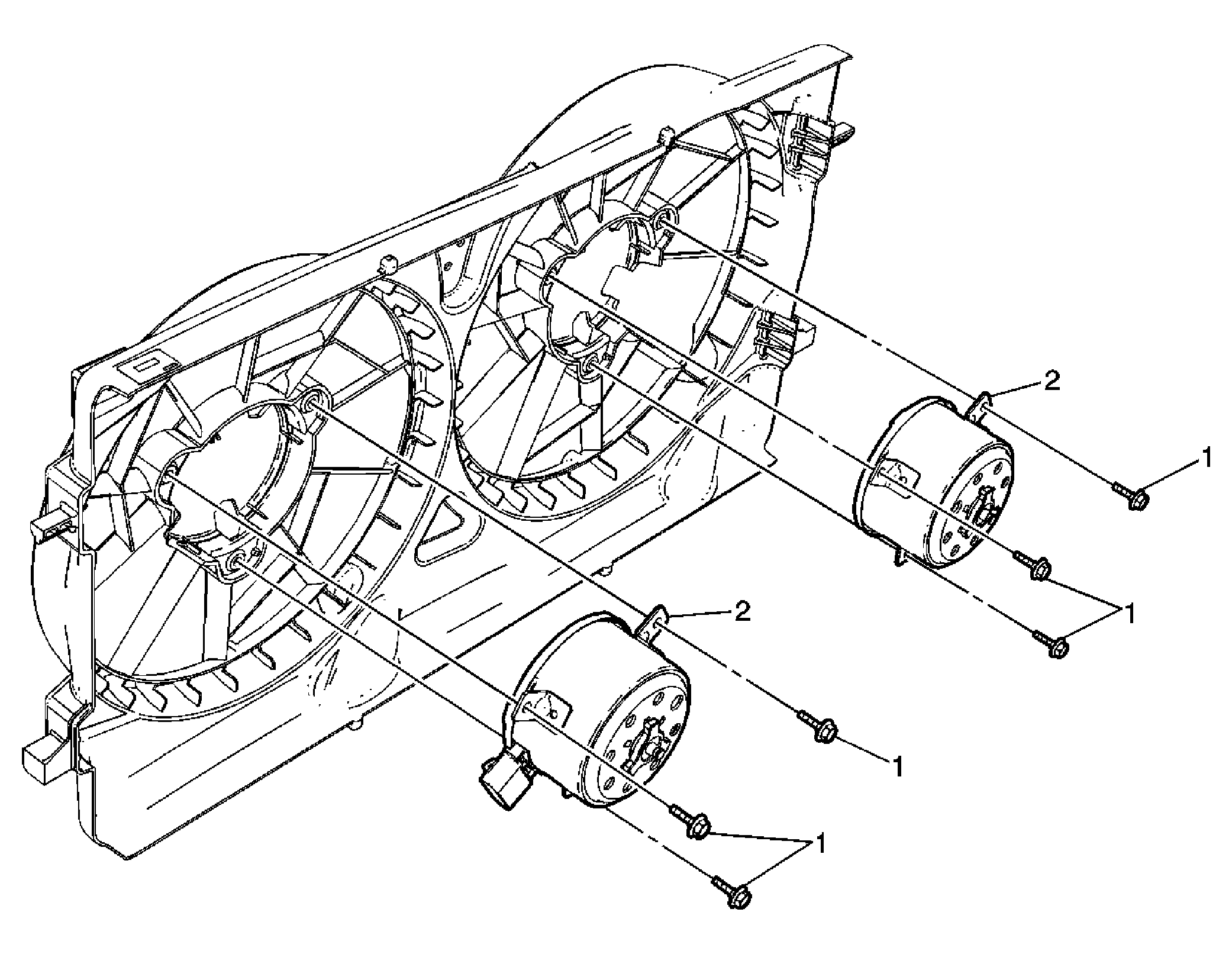

Fig 1: View Of Engine Coolant Fan Motors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement . Remove the cooling blades. Refer to Engine Cooling Fan Replacement (LE5, L61) or Engine Cooling Fan Replacement (LNF) . Disconnect the electrical connectors from the cooling fans.
1	Cooling Fan Motor Bolt (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Cooling Fan Motor

Callout

Component Name

Preliminary Procedure

Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement .
Remove the cooling blades. Refer to Engine Cooling Fan Replacement (LE5, L61) or Engine Cooling Fan Replacement (LNF) .
Disconnect the electrical connectors from the cooling fans.

Cooling Fan Motor Bolt (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Cooling Fan Motor
