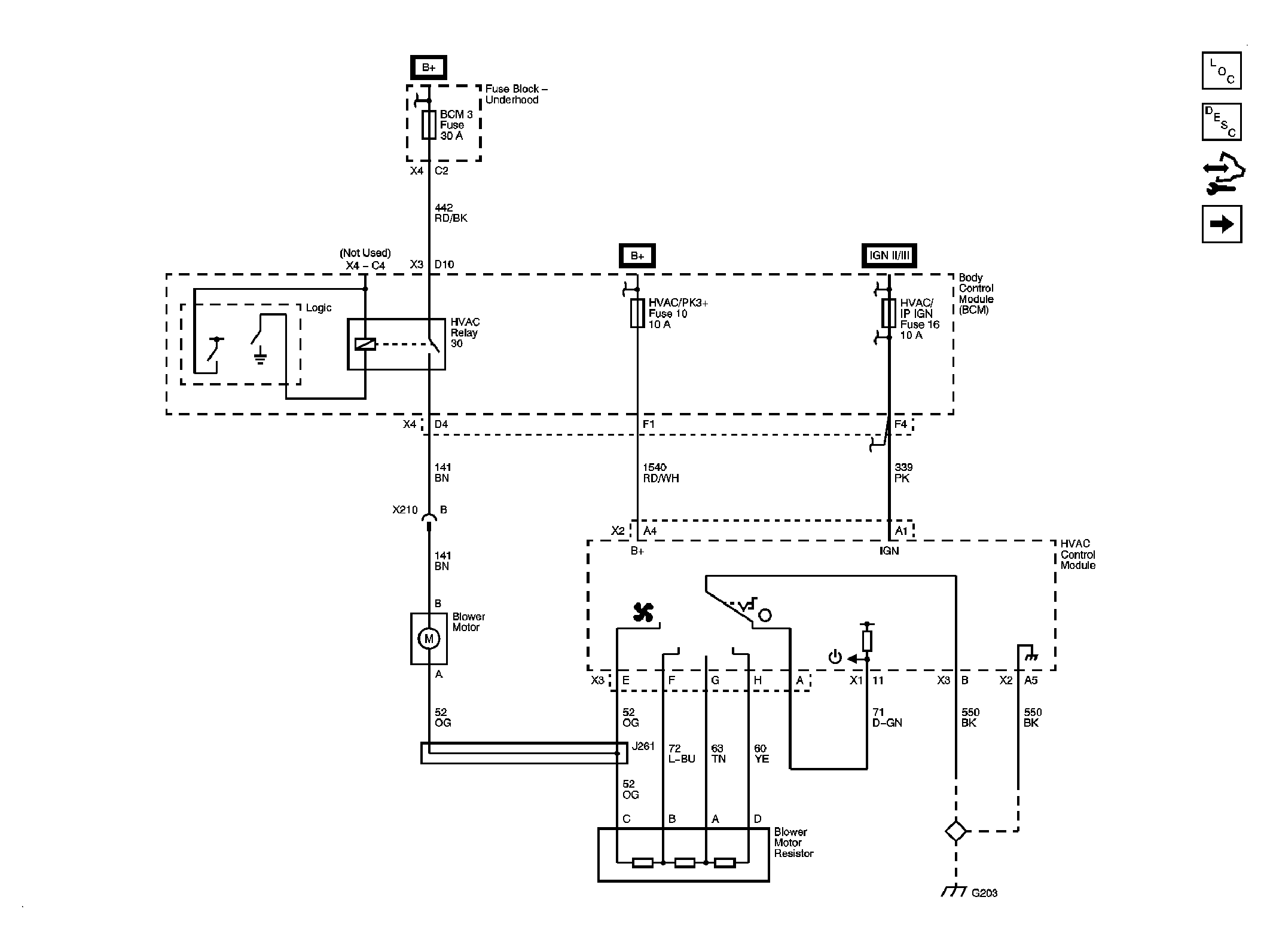

Fig 1: Power, Ground, Blower Motor Schematic
Courtesy of GENERAL MOTORS CORP.

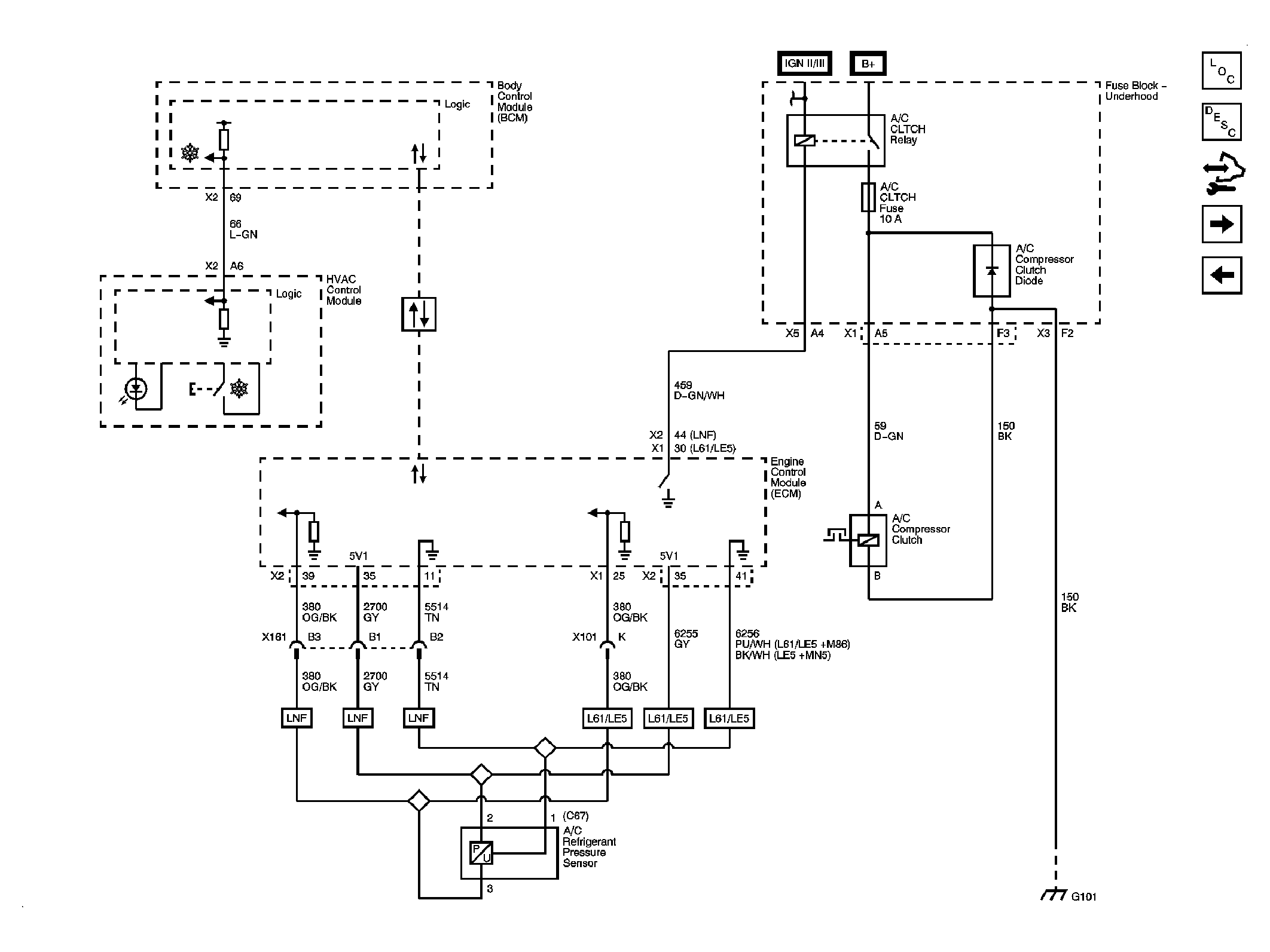

Fig 2: Compressor Controls Schematic
Courtesy of GENERAL MOTORS CORP.

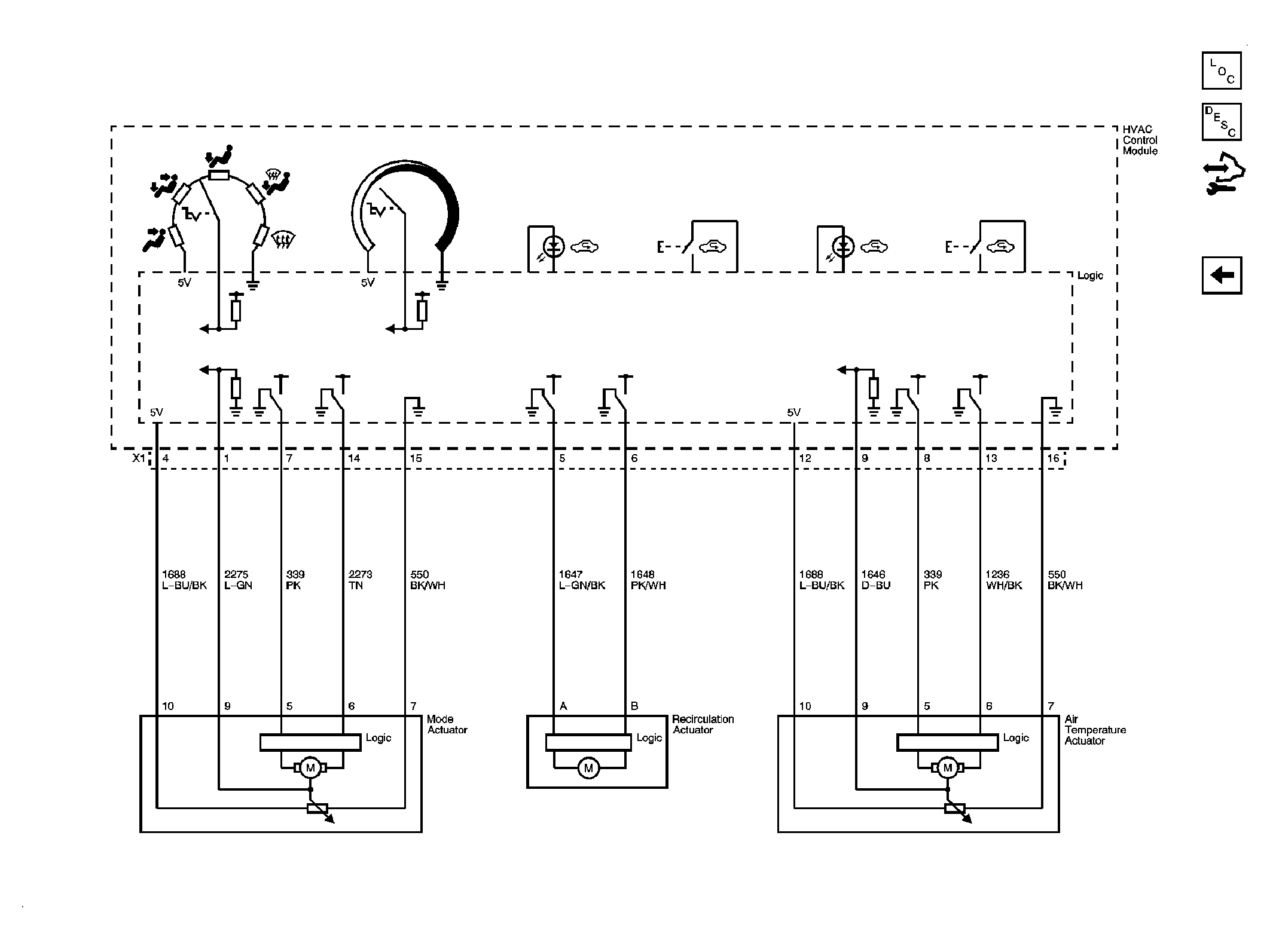

Fig 3: Mode and Air Temperature Controls Schematic
