Windshield Washer Pump Replacement (Pontiac)

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

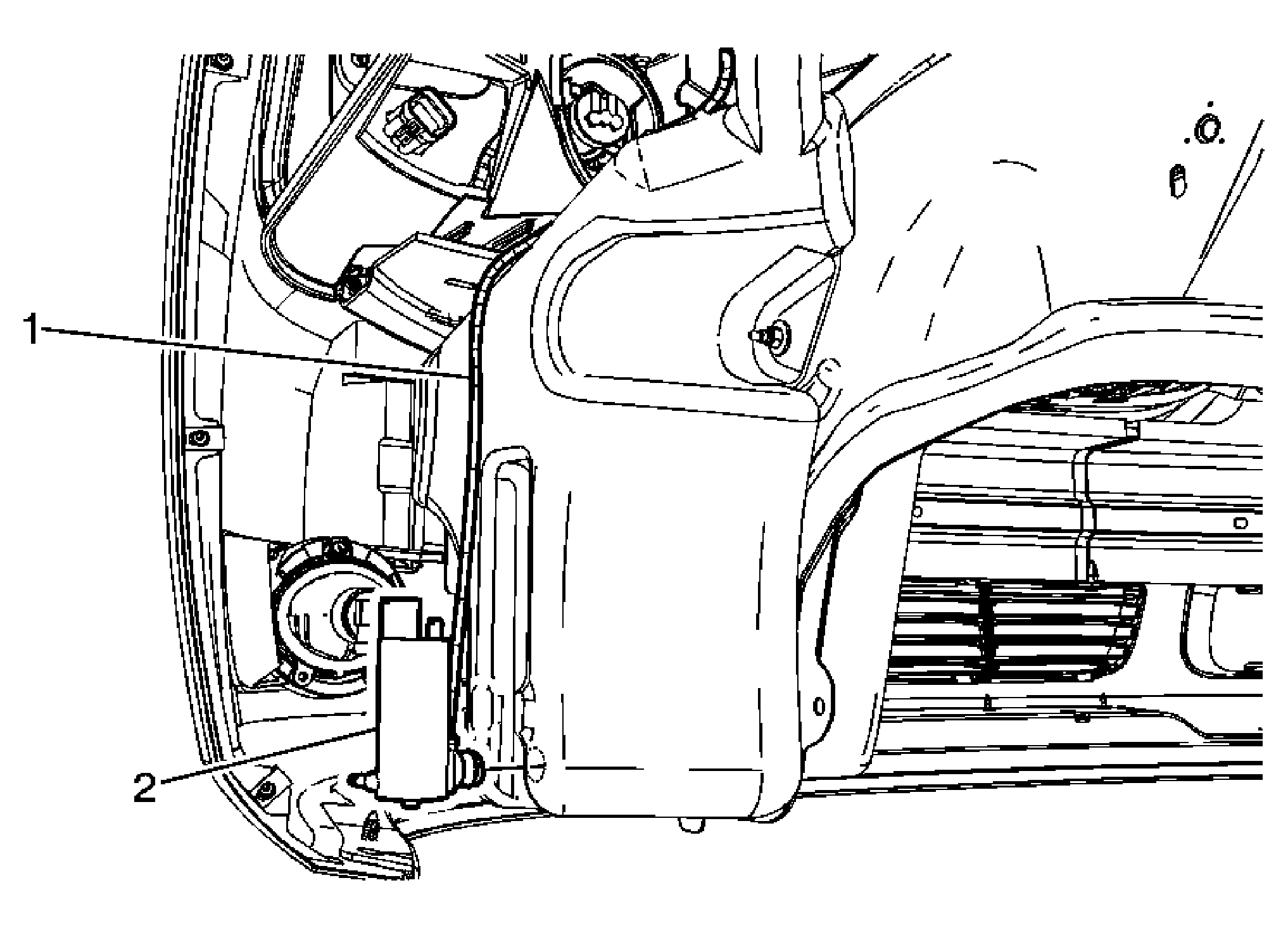

Fig 1: View Of Windshield Washer Pump (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left front fender liner. Refer to Front Fender Liner Replacement . Disconnect the electrical connector from the windshield washer pump. Place a clean suitable container under the windshield washer solvent container and secure any windshield washer solvent loss. Remove the windshield washer pump hose at the washer pump spout.
1	Windshield Washer Pump Hose Assembly
2	Windshield Washer Pump Procedure Using two small flat-bladed tools, insert the flat blades under each edge of the washer pump. Pry outward slightly, in order to disengage the washer pump from the washer container. Remove the windshield washer pump from the container. Discard the windshield washer pump grommet.

Callout

Component Name

Preliminary Procedure

Remove the left front fender liner. Refer to Front Fender Liner Replacement .
Disconnect the electrical connector from the windshield washer pump.
Place a clean suitable container under the windshield washer solvent container and secure any windshield washer solvent loss.
Remove the windshield washer pump hose at the washer pump spout.

Windshield Washer Pump Hose Assembly

Windshield Washer Pump

Procedure

Using two small flat-bladed tools, insert the flat blades under each edge of the washer pump.
Pry outward slightly, in order to disengage the washer pump from the washer container.
Remove the windshield washer pump from the container.
Discard the windshield washer pump grommet.
