Starting and Charging Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

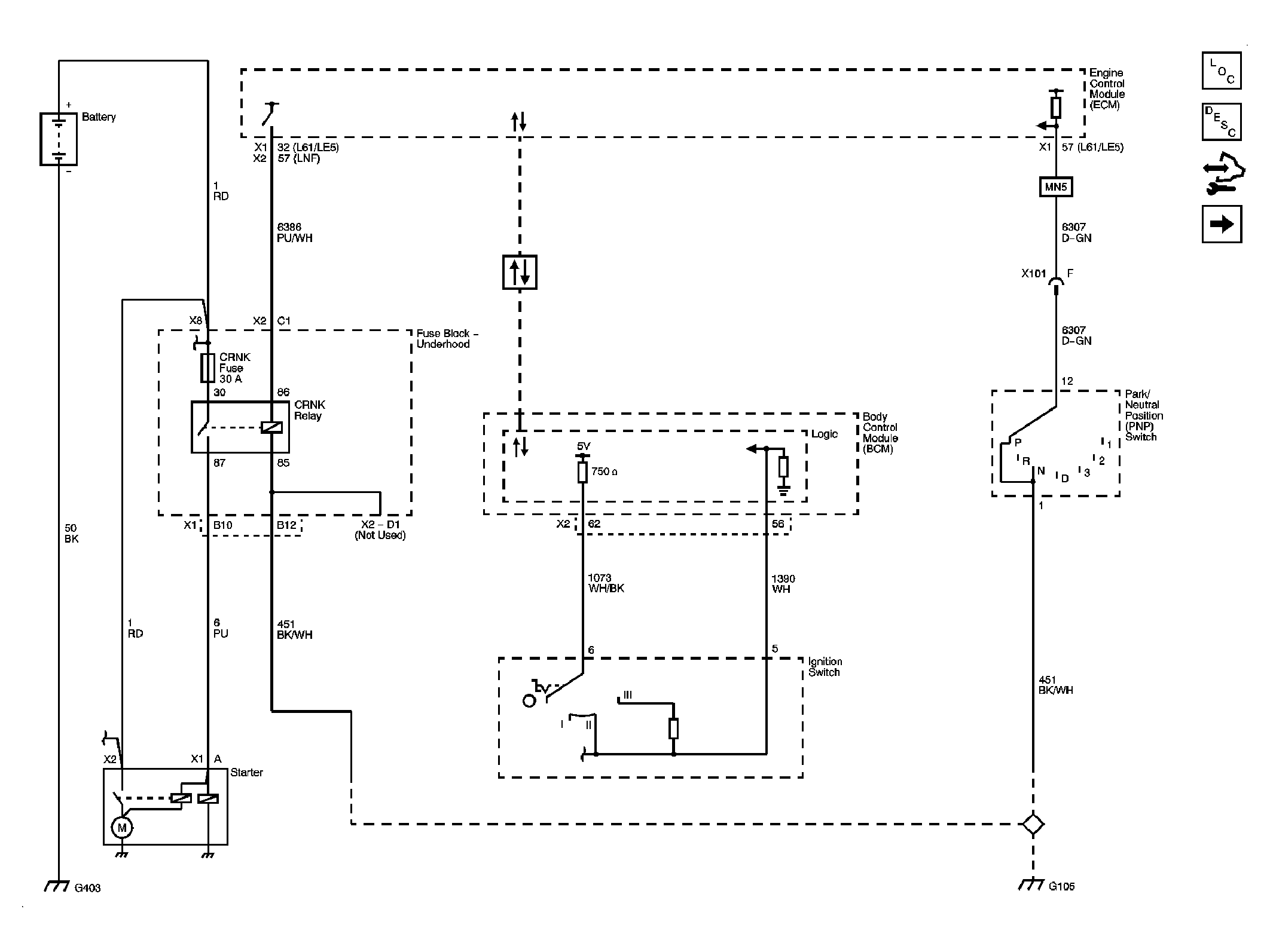

Fig 1: Starting Schematic
GM1963391Courtesy of GENERAL MOTORS CORP.

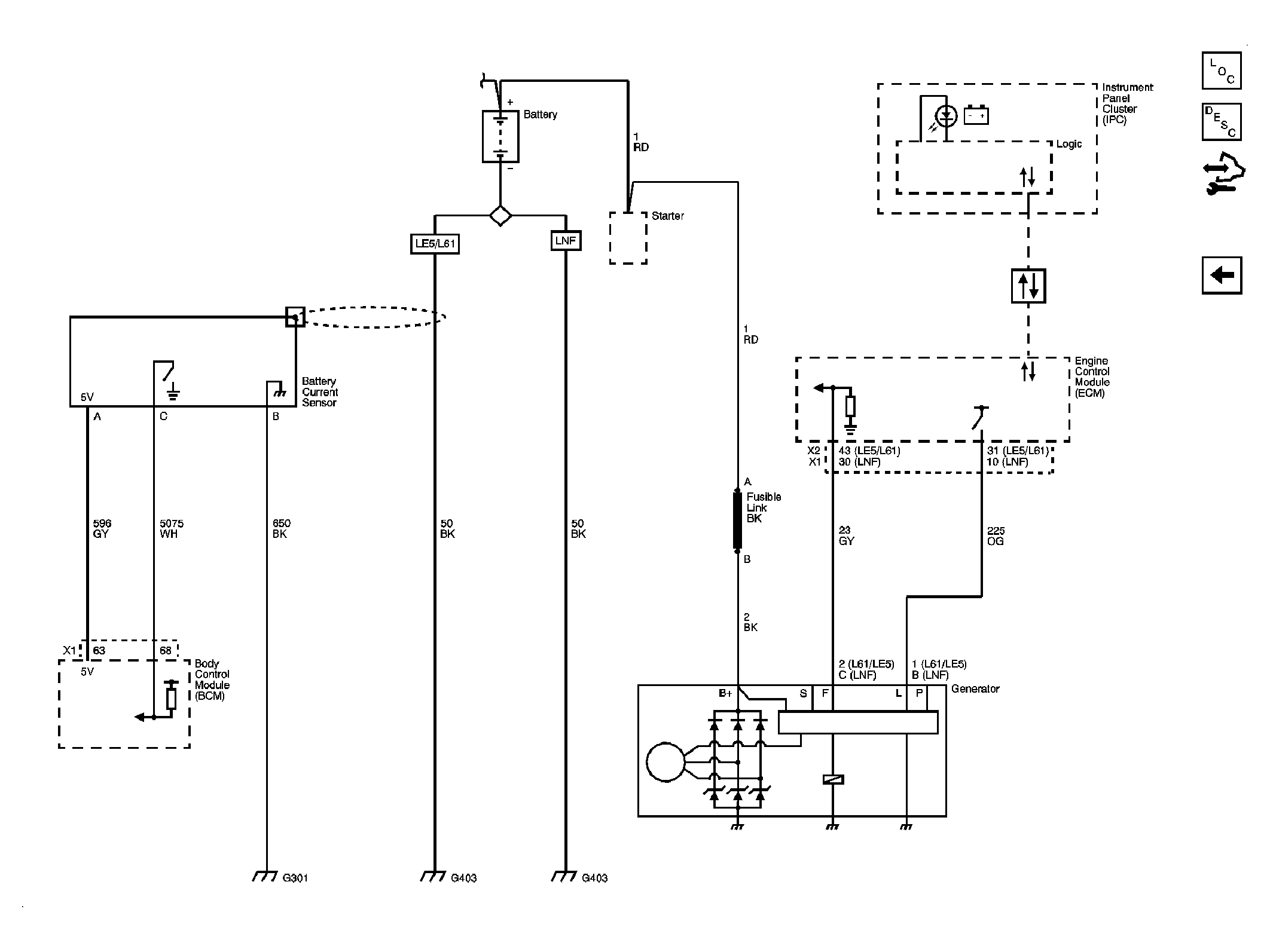

Fig 2: Charging Schematic
GM1963393Courtesy of GENERAL MOTORS CORP.
