Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

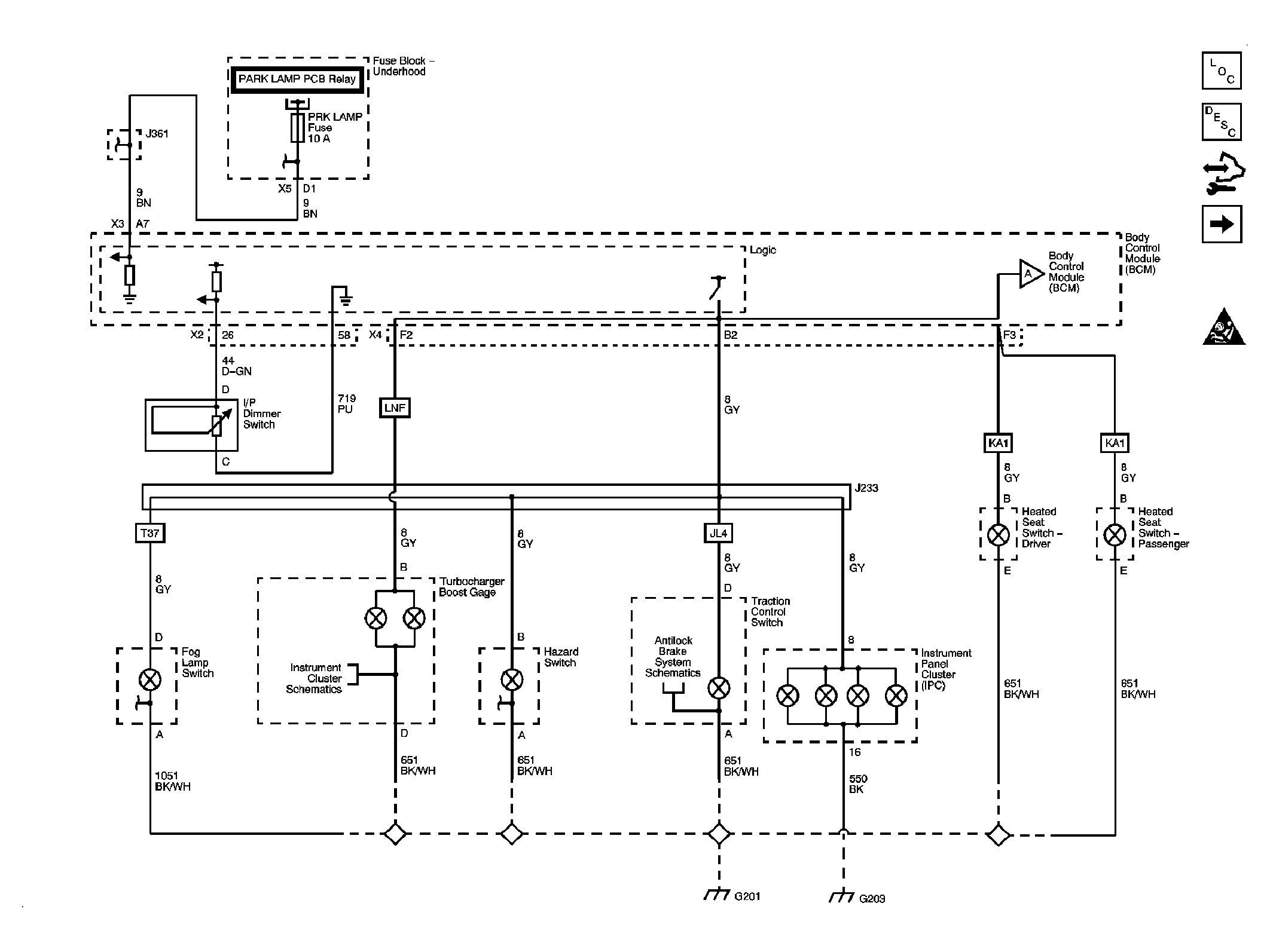

Fig 1: Dimmer Switch Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: I/P and Seat Lighting Schematic

Courtesy of GENERAL MOTORS CORP.

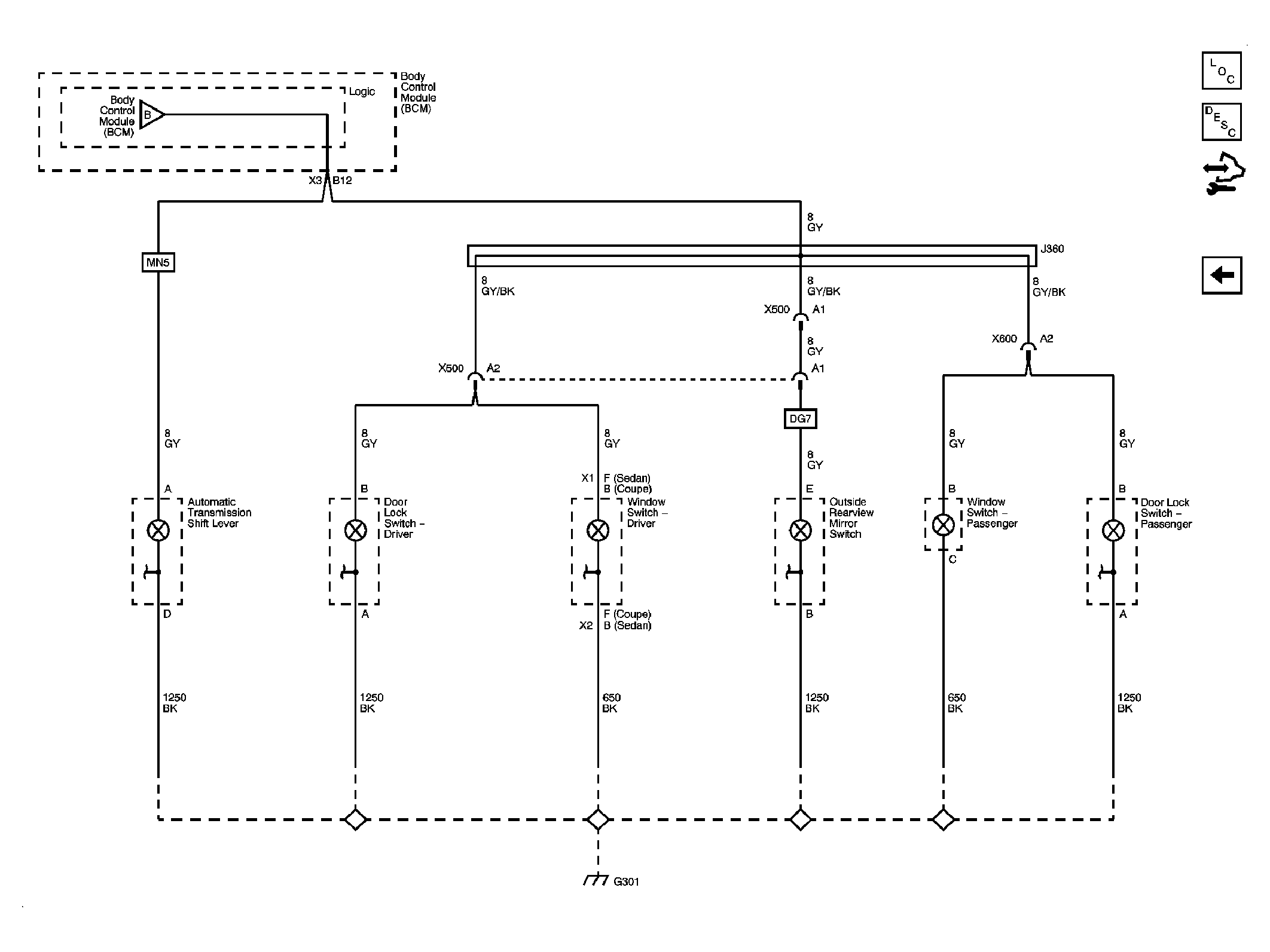

Fig 3: Door and Console Lighting Schematic

Courtesy of GENERAL MOTORS CORP.
