Exterior Lights Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

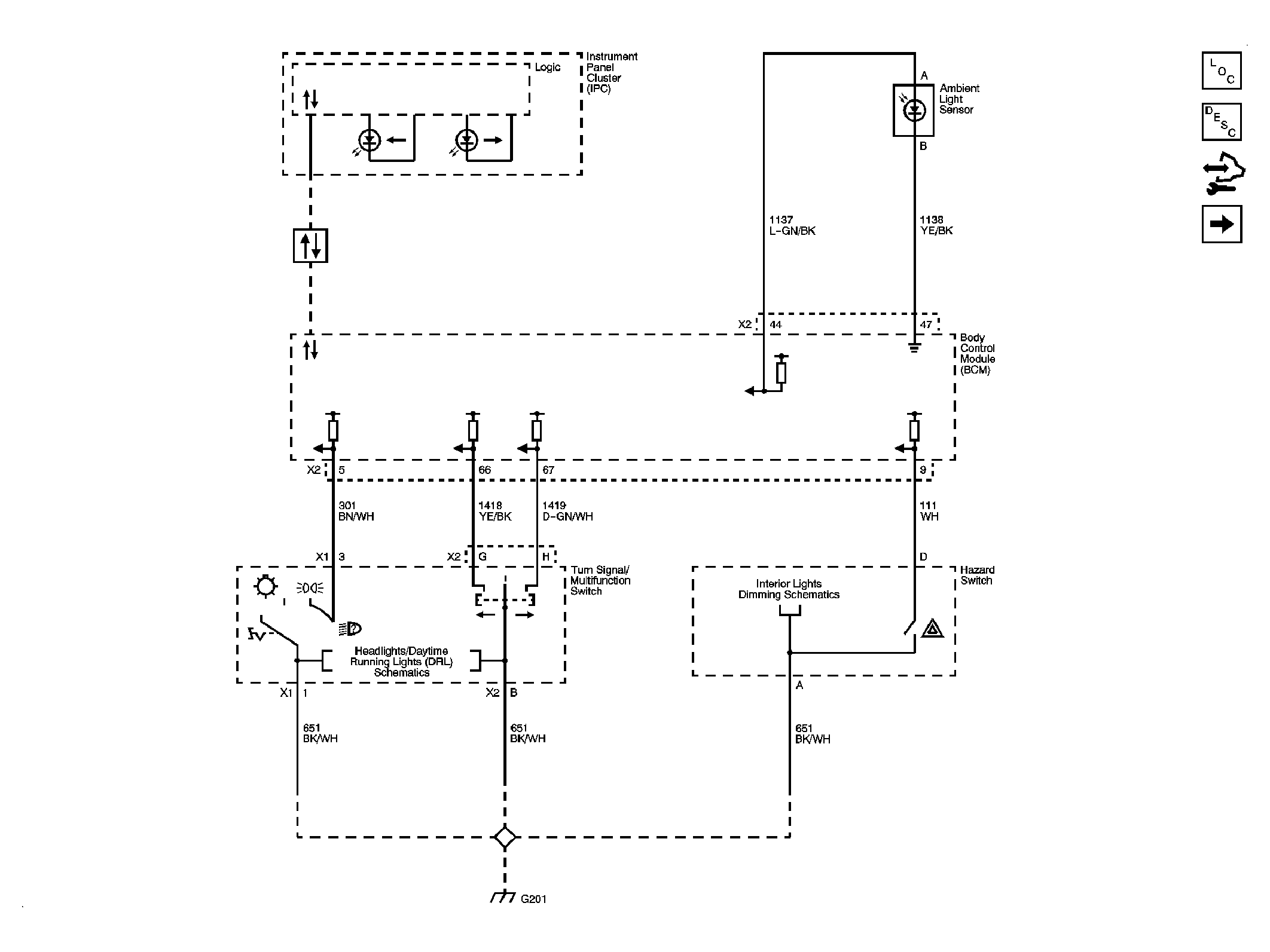

Fig 1: Exterior Lights Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

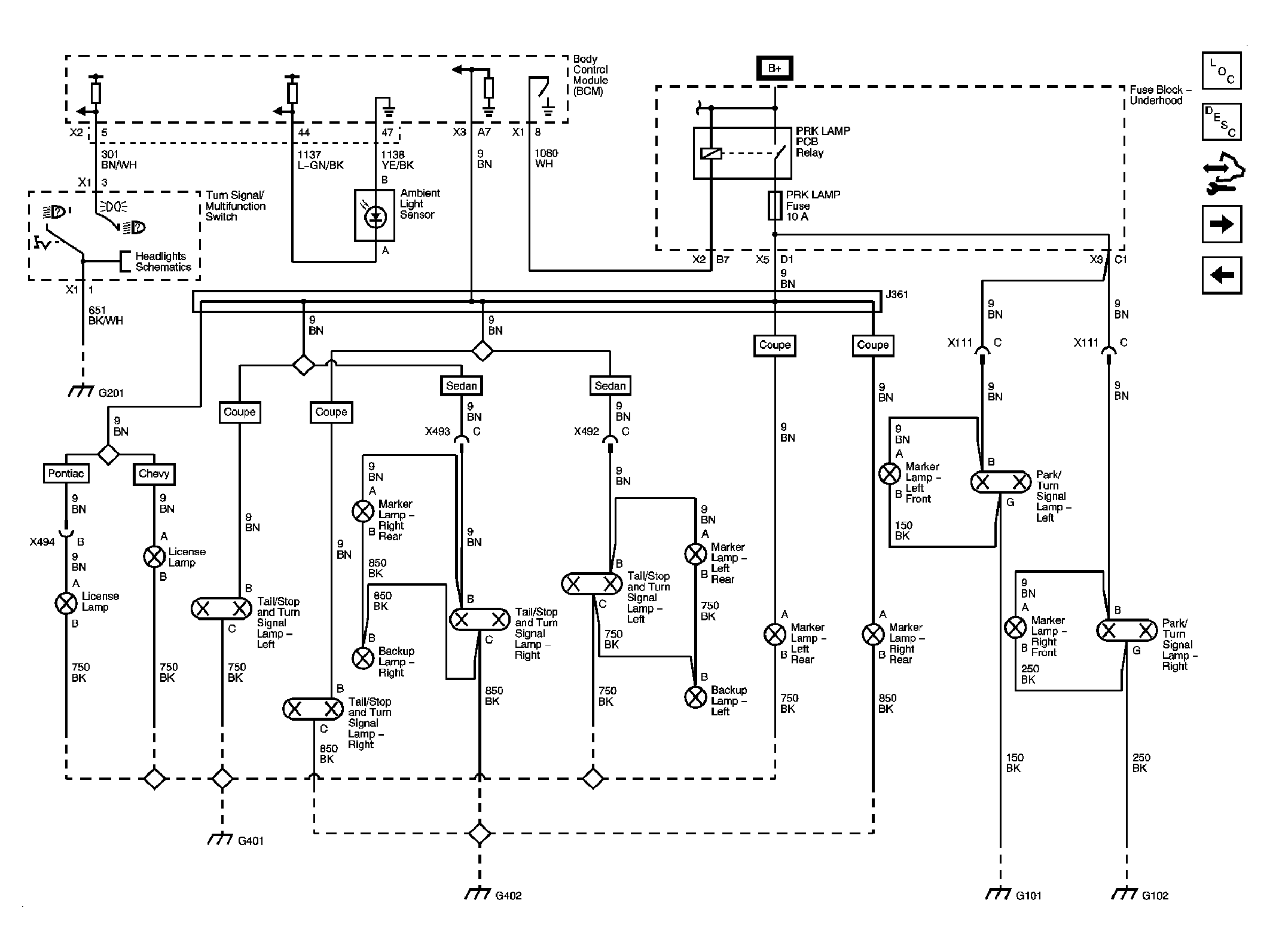

Fig 2: Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

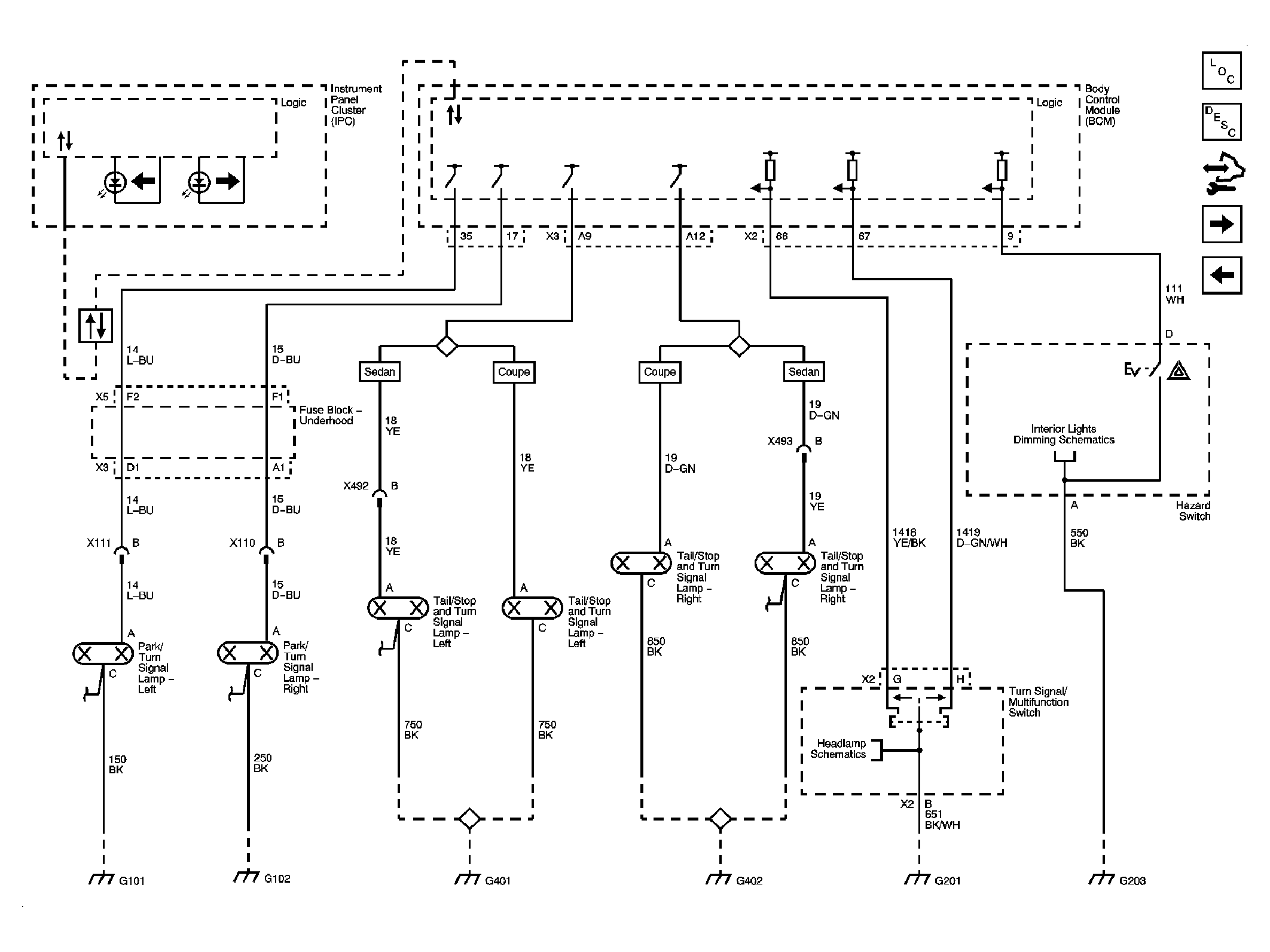

Fig 3: Hazards, Turn Signals Schematic

Courtesy of GENERAL MOTORS CORP.

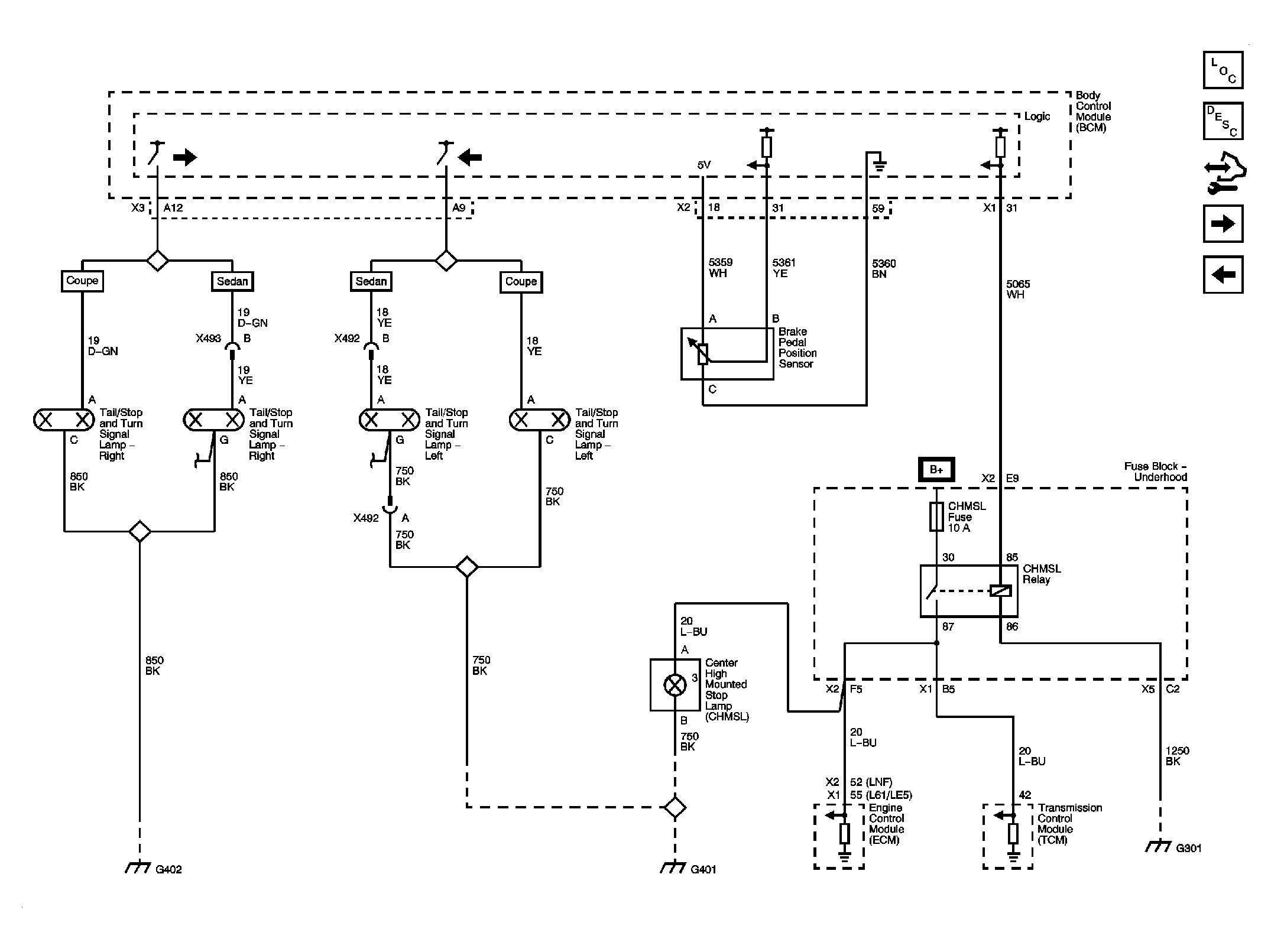

Fig 4: Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

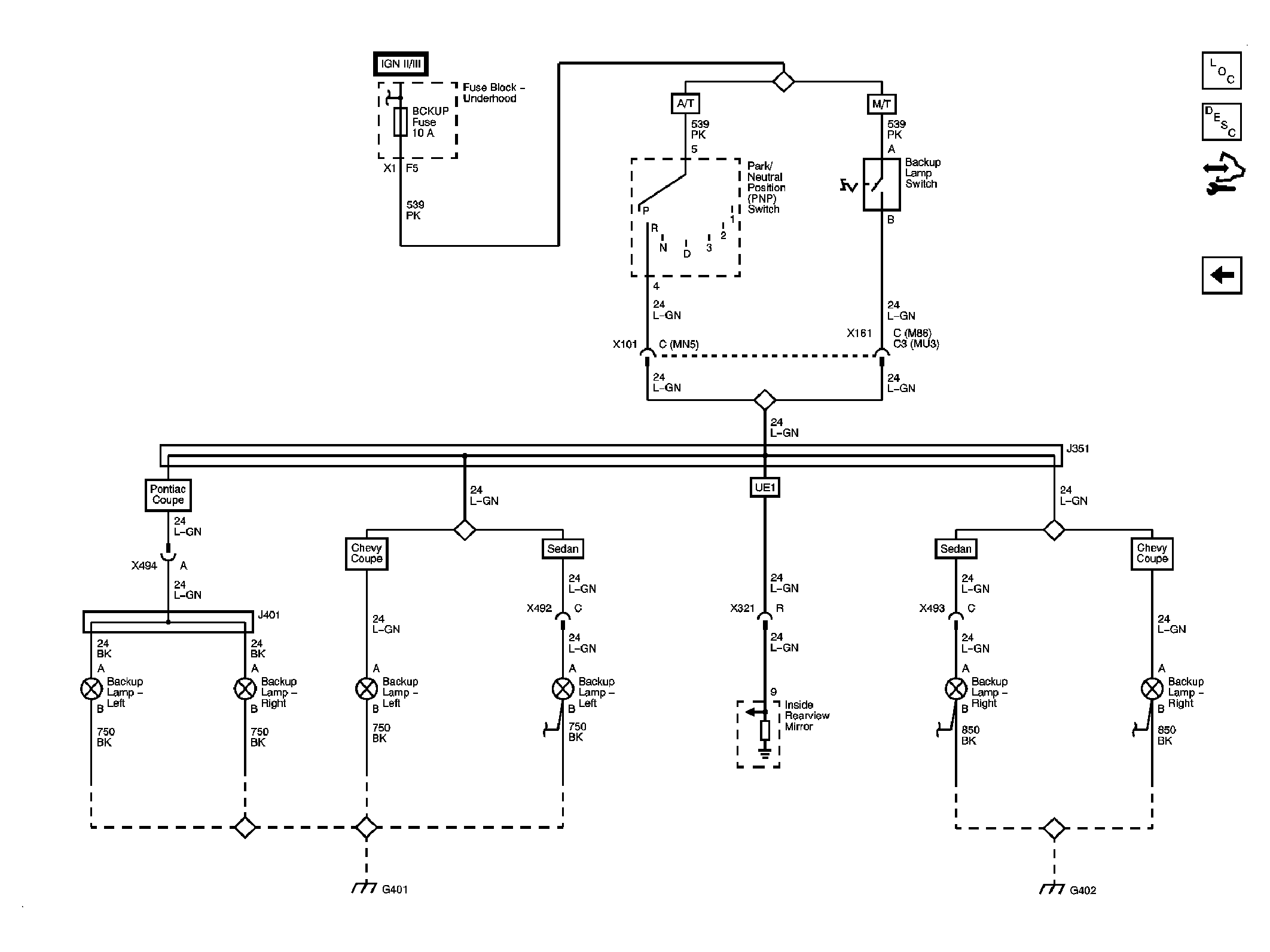

Fig 5: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.
