Front Fog Lamp Bulb Replacement (G5)

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

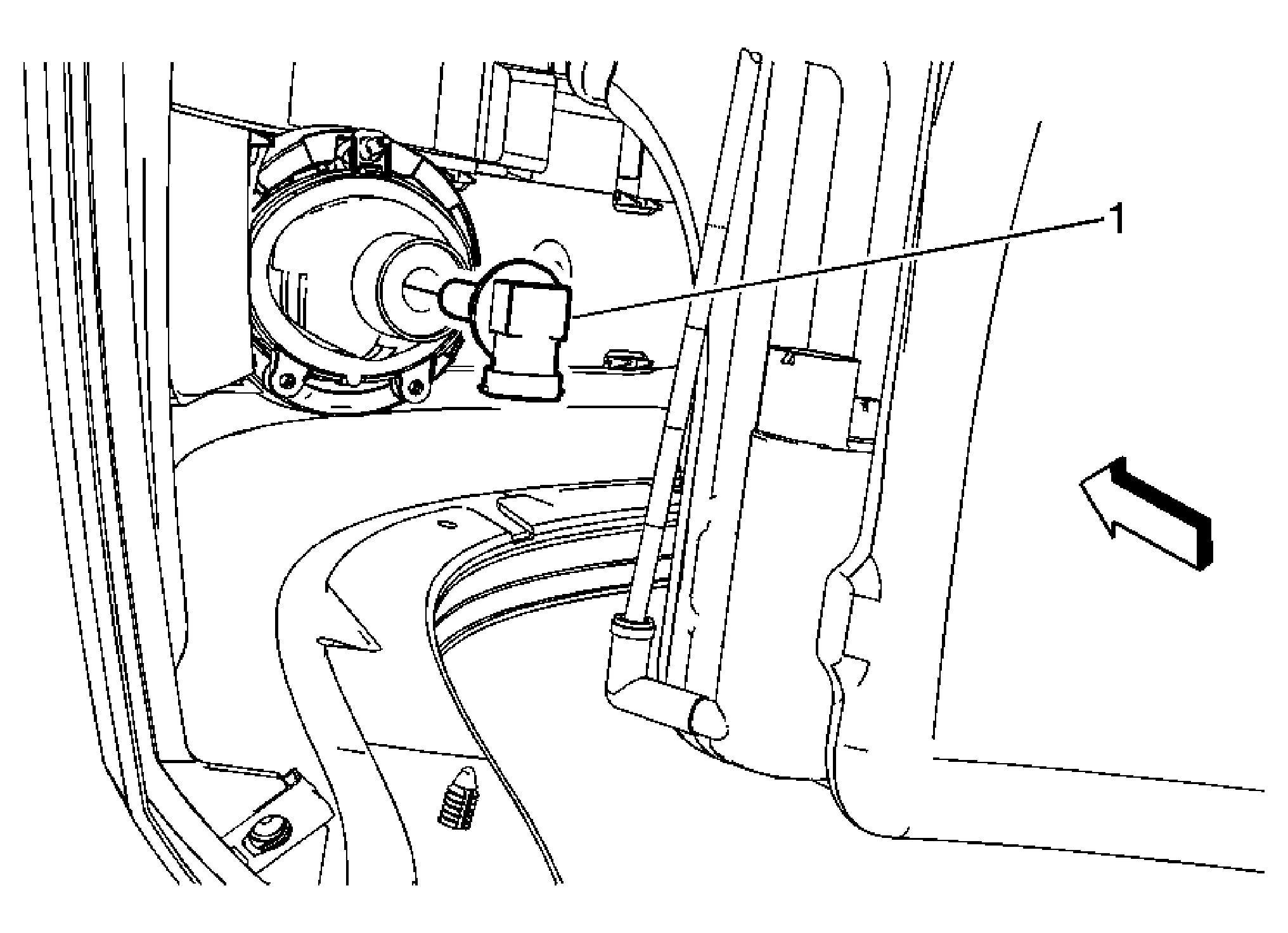

Fig 1: Identifying Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front fender liner. Refer to Front Fender Liner Replacement .
1	Fog Lamp Bulb Socket CAUTION: Refer to Halogen Bulb Caution . Procedure Disconnect the electrical connector. Rotate the bulb socket counter-clockwise and remove from the lamp assembly.

Callout

Component Name

Preliminary Procedure:
Remove the front fender liner. Refer to Front Fender Liner Replacement .

Fog Lamp Bulb Socket

CAUTION: Refer to Halogen Bulb Caution .

Procedure

Disconnect the electrical connector.
Rotate the bulb socket counter-clockwise and remove from the lamp assembly.
