Evaporative Emission Canister Vent Rear Pipe Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

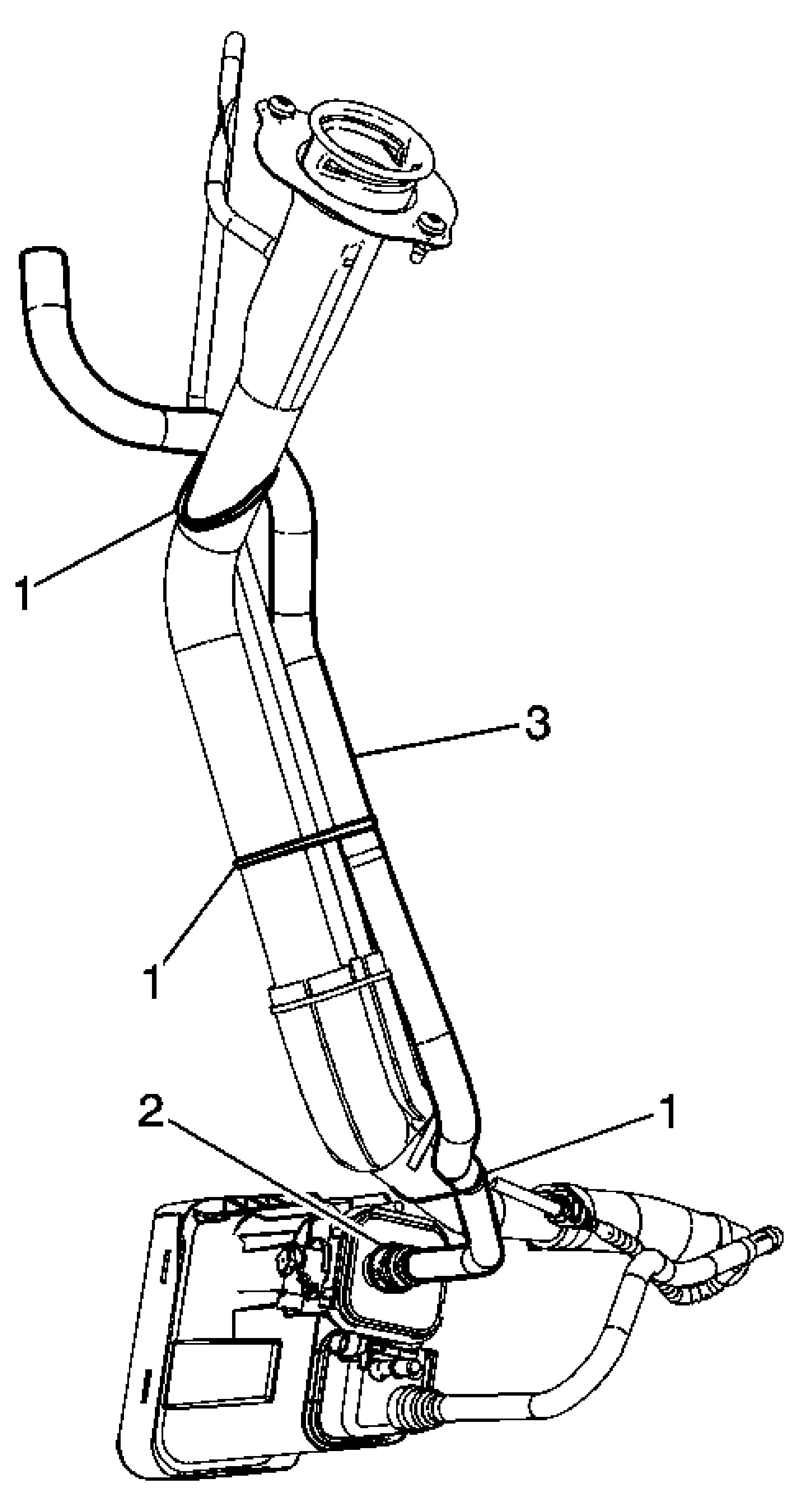

Fig 1: View Of Evaporative Emission Canister Vent Rear Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief (Without CH 48027) or Fuel Pressure Relief (With CH 48027) or Fuel Pressure Relief (High Pressure Side) . Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Plastic Tie Strap (Qty: 3) Procedure: Cut the plastic tie straps and replace with new tie straps.
2	Evaporative Emission (EVAP) Canister Connector Procedure: Disconnect the connector. Refer to Plastic Collar Quick Connect Fitting Service .
3	EVAP Canister Vent Rear Pipe Procedure: Pull down while twisting toward the rear of the vehicle.
