Radiator Outlet Hose Replacement (2.2L (L61), 2.4L (LE5))

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

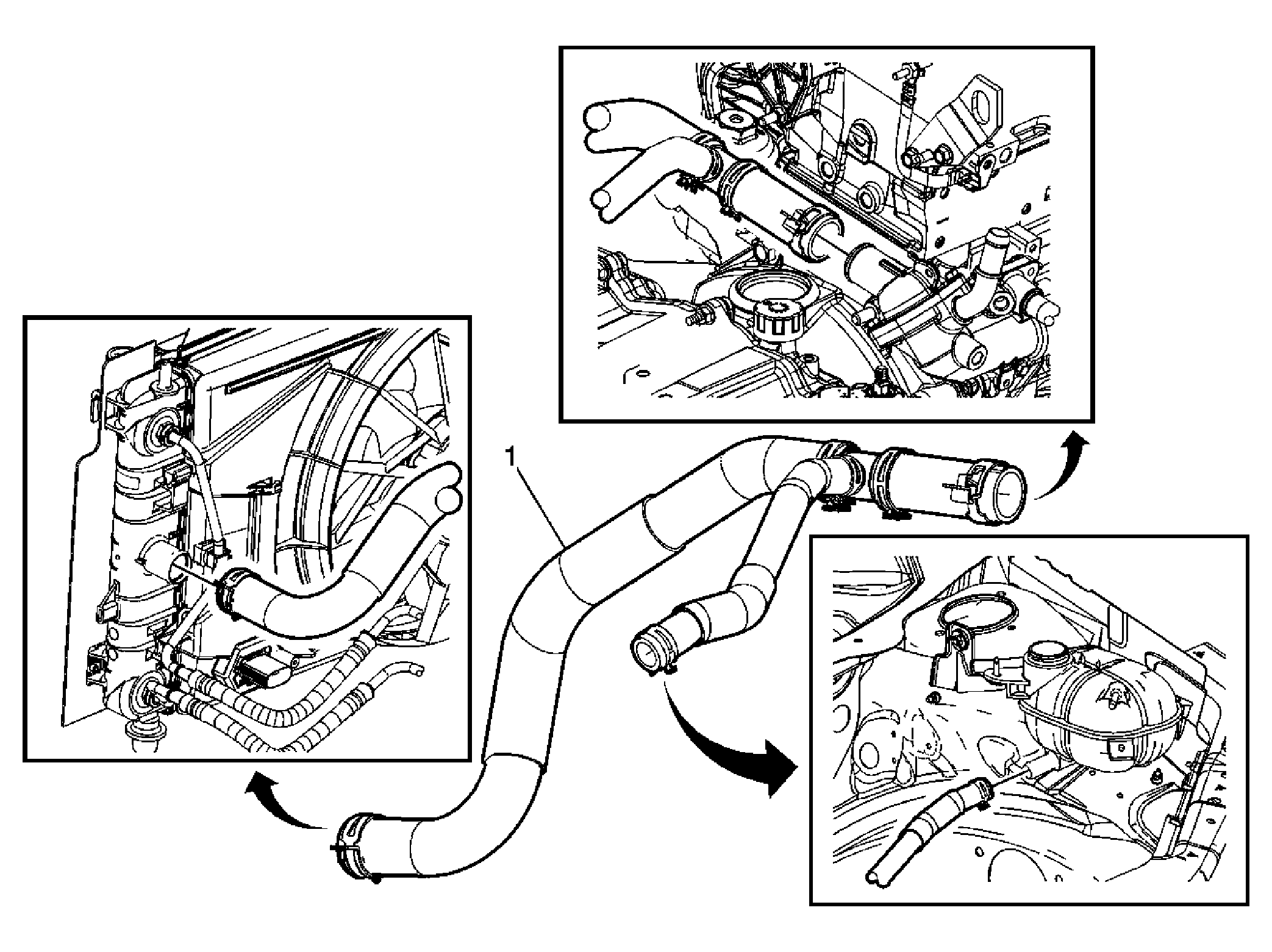

Fig 1: Radiator Outlet Hose Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Drain the cooling system. Refer to Draining and Filling Cooling System (2.0L (LSJ)) or Draining and Filling Cooling System (2.2L (L61), 2.4L (LE5)) or Draining and Filling Cooling System (GE 47716 Fill) .
1	Radiator Outlet Hose Assembly Tip: Using J 38185 , position the radiator outlet hose clamps aside and remove the hose from the fittings. See Special Tools . Note routing of the radiator outlet hose to ensure proper installation.
