Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Cooling Fan Motors

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the cooling fan motor and bolts.
Tighten: Tighten the bolts to 8 N.m (70 lb in).

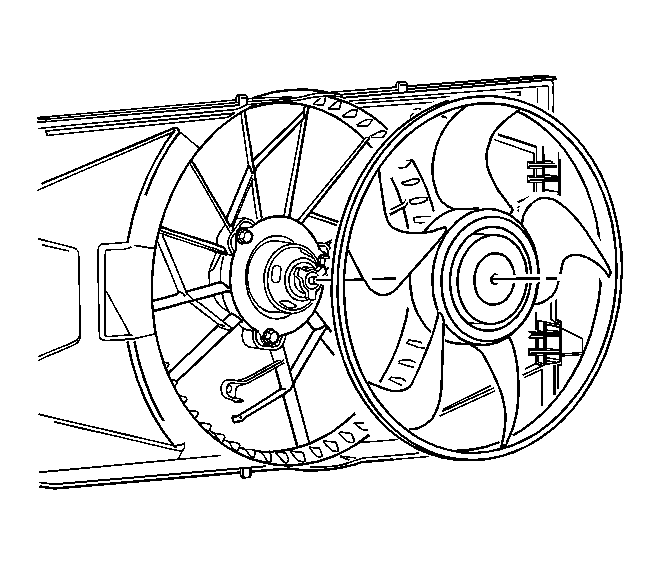

Fig 2: View Of Cooling Blade Fans

Courtesy of GENERAL MOTORS CORP.

Align the scribe marks on the cooling fan blade and motor shaft.
Install the cooling fan blade.

Fig 3: View Of Cooling Fan Blade Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Install new retaining clips to the cooling fan blade.
Install the cooling fan assembly into the vehicle. Refer to Cooling Fan and Shroud Replacement (2.0L (LSJ)) or Cooling Fan and Shroud Replacement (2.2L (L61), 2.4L (LE5)) .
