Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Cooling Fan Electrical Connector
    GM873607Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the cooling fan electrical connectors.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

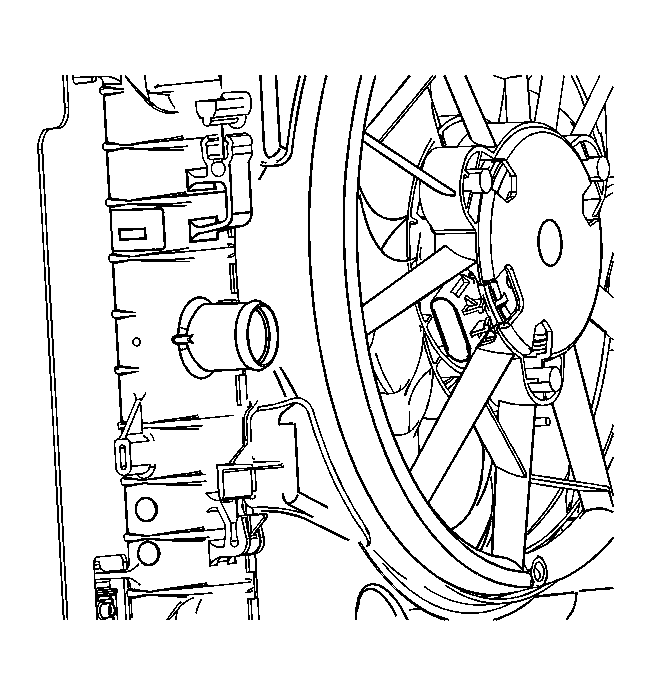

    3. Fig 2: View Of Cooling Fan Assembly-To-Radiator Connectors - 2.0L
    GM1402982Courtesy of GENERAL MOTORS CORP.
  3. Remove the cooling fan assembly from the radiator by pushing up on the fan shroud to unsnap the retaining features. Position the cooling fan assembly away from the radiator.
    4. Fig 3: View Of Air Dam - 2.0L
    GM1413270Courtesy of GENERAL MOTORS CORP.
  4. Remove the air dam push-in retainers.
  5. Remove the air dam.
    6. Fig 4: View Of Left Engine Splash Shield-To-Radiator Mount Push-In Retainer
    GM899628Courtesy of GENERAL MOTORS CORP.
  6. Remove the right engine splash shield to radiator mount push-in retainer.
  7. Remove the left engine splash shield to radiator mount push-in retainer.
  8. Remove the charge air cooler radiator. Refer to Radiator Replacement - Charge Air Cooler .
    9. Fig 5: View Of Lower Radiator Mount, Brackets And Bolts
    GM877644Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower radiator mount, brackets, and bolts. Support the radiator and condenser.
    10. Fig 6: View Of Cooling Fan Assembly, Radiator, & Condenser
    GM877648Courtesy of GENERAL MOTORS CORP.
  10. Tilt the radiator and condenser forward in the vehicle.
    11. Fig 7: View Of Cooling Fan Assembly
    GM1402990Courtesy of GENERAL MOTORS CORP.
  11. Remove the cooling fan assembly from the vehicle.
