Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

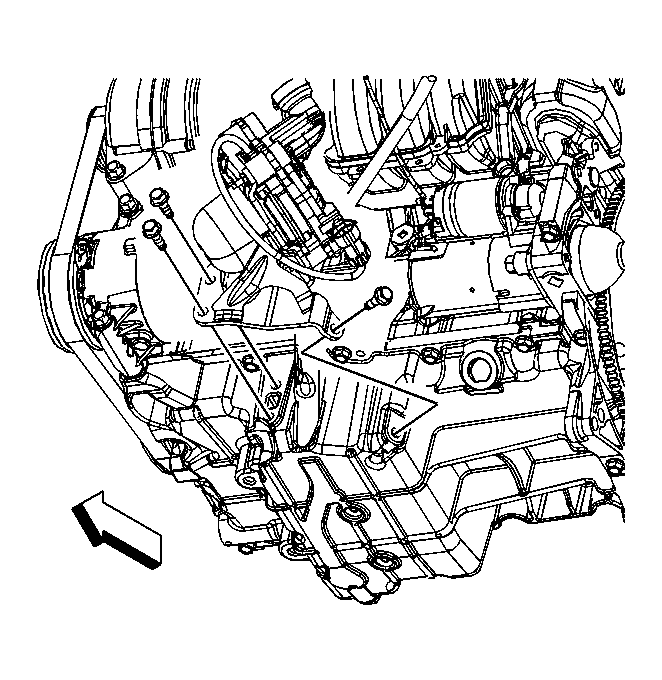

    Fig 1: View Of AIR Pump
    GM1652371Courtesy of GENERAL MOTORS CORP.
  1. Position the AIR pump to the oil pan.
    2. NOTE: Refer to Fastener Notice .
  2. Install the AIR pump bolts.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

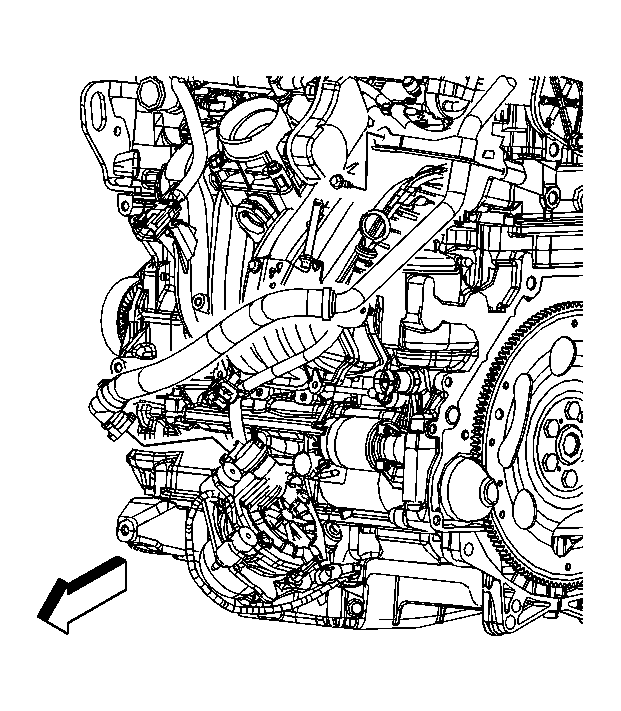

    3. Fig 2: Identifying Air Outlet Hose/Pipe Bracket To/From Heat Shield Stud
    GM1650781Courtesy of GENERAL MOTORS CORP.
  3. Position and connect the AIR pump outlet hose quick connect fitting at the AIR pump. Refer to Plastic Collar Quick Connect Fitting Service .

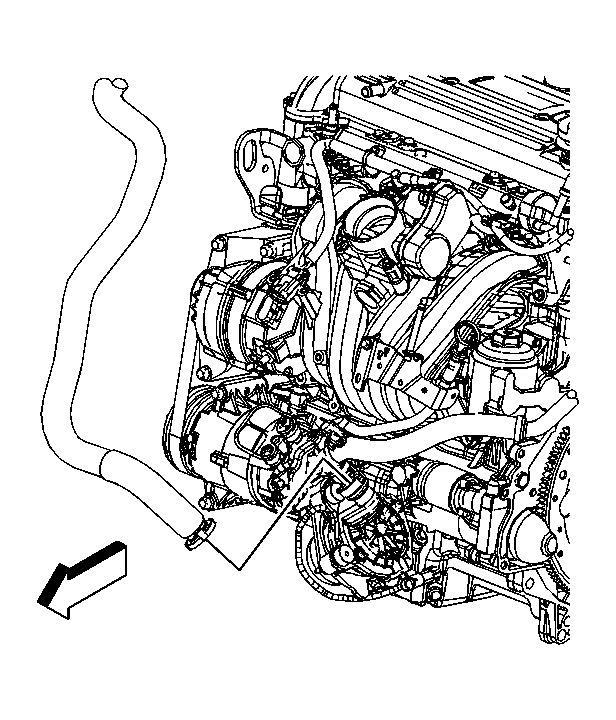

    4. Fig 3: Identifying AIR Pump
    GM1652377Courtesy of GENERAL MOTORS CORP.
  4. Position and connect the AIR pump inlet hose quick connect fitting at the AIR pump. Refer to Plastic Collar Quick Connect Fitting Service .

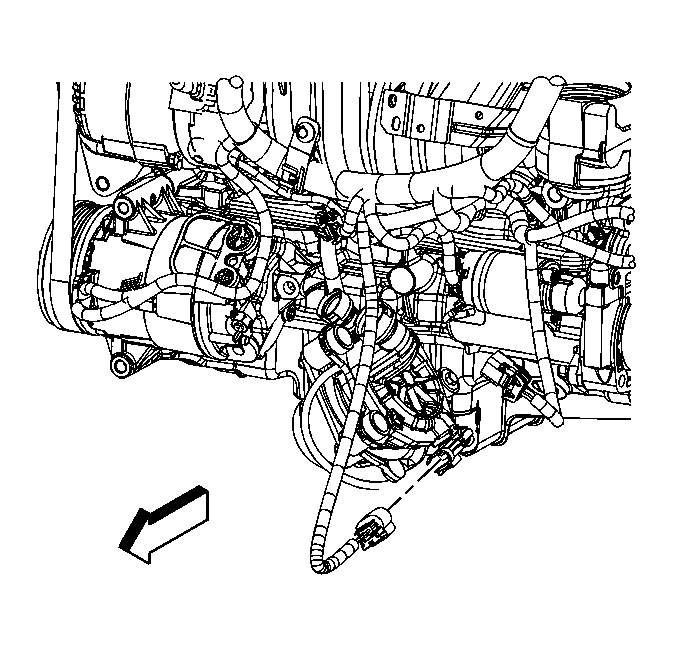

    5. Fig 4: Identifying Engine Harness Electrical Connector
    GM1652362Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine harness electrical connector to the AIR pump.
  6. Lower the vehicle.
