Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

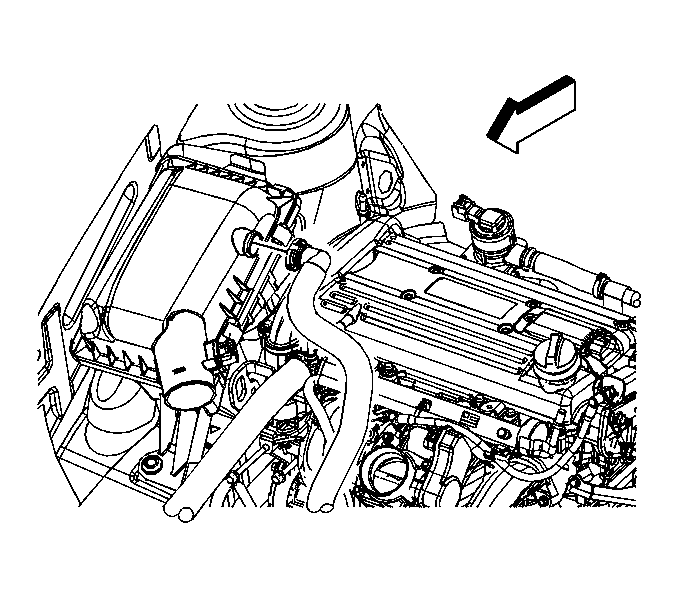

    Fig 1: Identifying AIR Pump Inlet Hose
    GM1652374Courtesy of GENERAL MOTORS CORP.
  1. Install the AIR pump inlet hose to the vehicle.
  2. Connect the AIR pump inlet hose quick connect fitting to the air cleaner. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
    4. Fig 2: Identifying AIR Pump
    GM1652377Courtesy of GENERAL MOTORS CORP.
  4. Raise and suitably support the vehicle.
  5. Connect the AIR pump inlet hose quick connect fitting at the AIR pump. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Lower the vehicle.
