Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

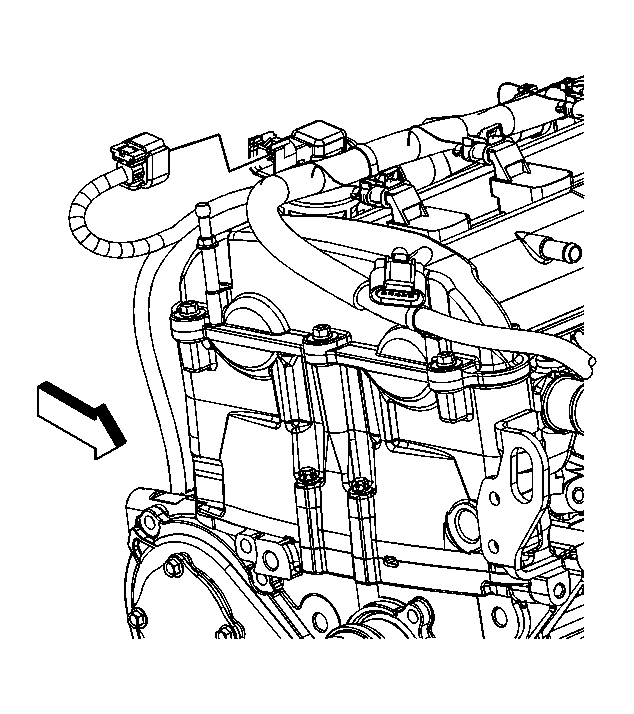

    Fig 1: View of intake manifold cover
    GM1751024Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Disconnect the engine harness electrical connector from the secondary air injection (AIR) check valve.

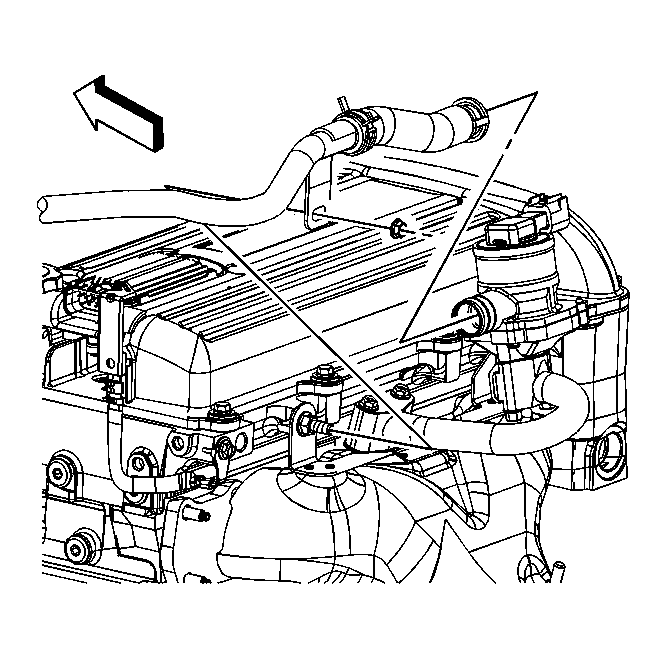

    3. Fig 2: Identifying AIR Outlet Hose/Pipe
    GM1650779Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the AIR pump outlet hose quick connect fitting at the AIR check valve. Refer to Plastic Collar Quick Connect Fitting Service .
    4. Fig 3: Identifying AIR Check Valve bolts
    GM1652358Courtesy of GENERAL MOTORS CORP.
  4. Remove the AIR check valve bolts.
  5. Remove the AIR check.
  6. Remove and discard the AIR check valve gasket.
  7. Clean the check valve gasket mating surfaces.
