Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Ignition Coils

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the ignition coil(s).
Install the ignition coil bolt(s).
Tighten: Tighten the bolt(s) to 10 N.m (89 lb in).

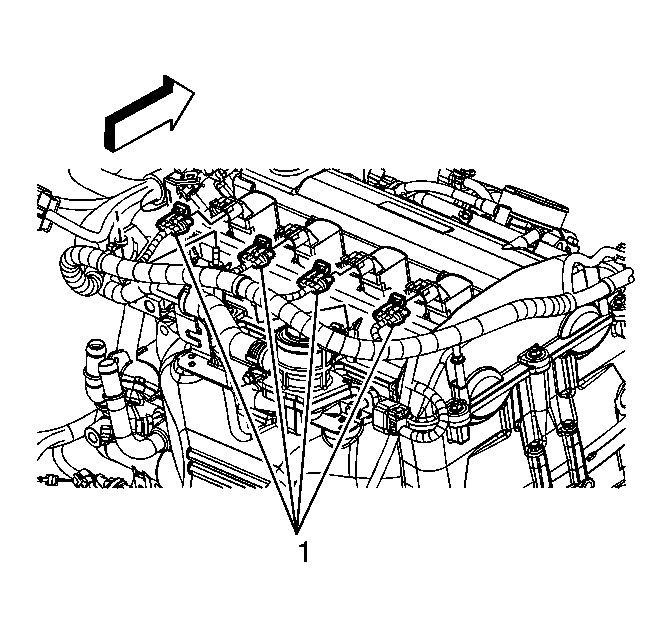

Fig 2: View of intake manifold cover

Courtesy of GENERAL MOTORS CORP.

Connect the ignition coil electrical connector(s) (1).
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
